915206 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: 075000 - 079999) Rear Tires And Transaxles - 42" Parts Diagram

42" Zero-Turn Mower, 21.5hp Kawasaki FR

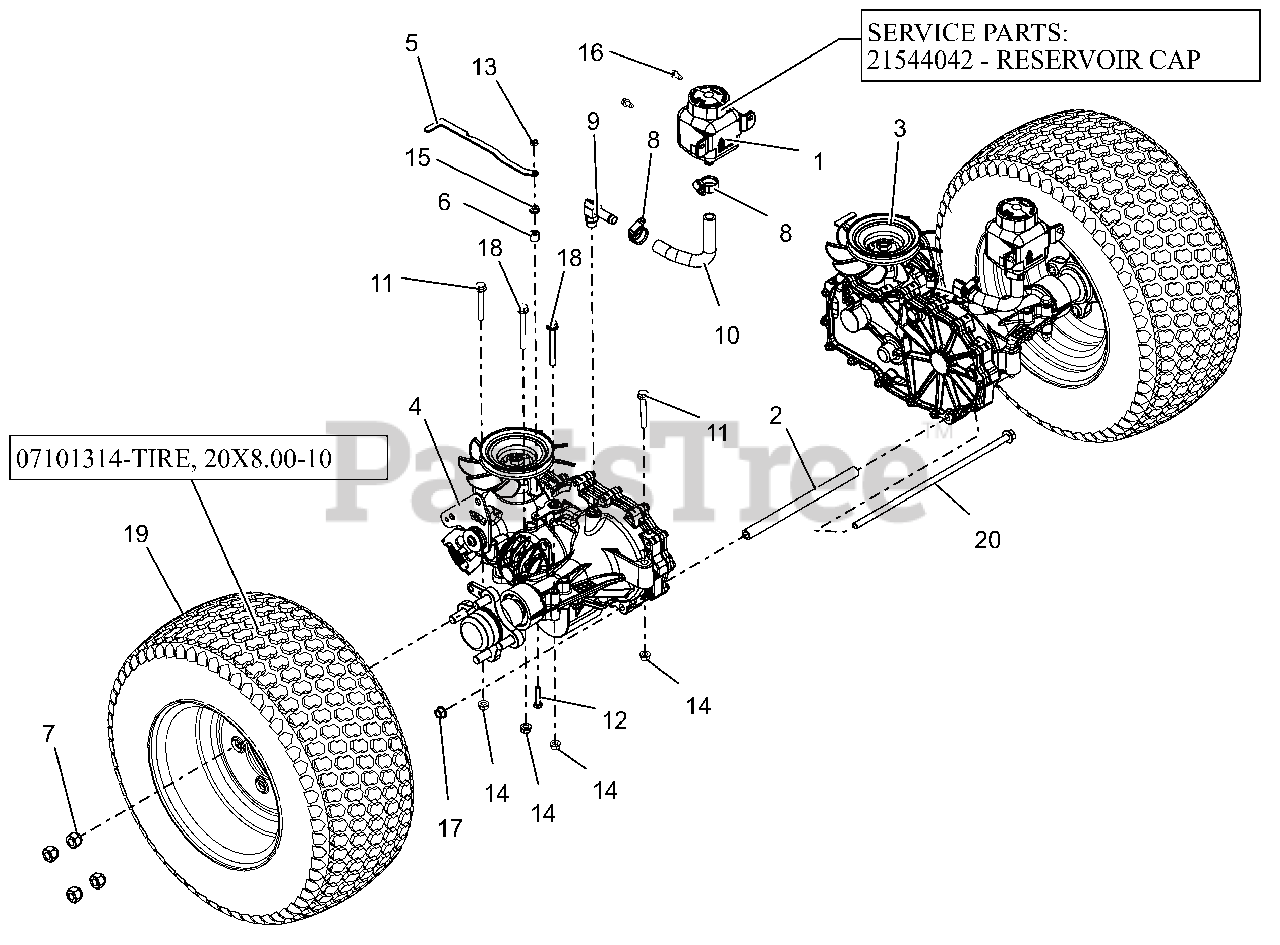

Rear Tires And Transaxles - 42" Parts Diagram

  • Title
1

Gravely 02970200

TANK, EXPANSION

$34.99

$

In Stock, only 1 left!

0

1

Gravely 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: SERVICE PART

$21.99

$

Usually ships in 4-12 days

0

2

Gravely 05162551

SPCR, TRANSAXLE .406 ID X .630 OD X 9.27 (BLACK)

$18.99

$

In Stock, only 1 left!

0

3

Gravely 04879900

TRANSAXLE,ZT2800 LH
(Superseded to 09160600)

$1427.99

$

Usually ships in 4-12 days

0

4

Gravely 04880100

TRANSAXLE,ZT2800 RH
(Superseded to 09160700)

$1428.99

$

Usually ships in 4-12 days

0

5

Gravely 04884151

BRKT, DUMP VALVE

$14.99

$

In Stock, only 1 left!

0

6

Gravely 05501112

BSHG-SLV .265X.500X.500

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

In Stock, Qty 6

0

9

Gravely 07001528

FITTING, HYD (90 DEG)

$

$

Not available

10

Gravely 07001735

HOSE, FORMED LH XL

$20.99

$

Usually ships in 4-12 days

0

11

Gravely 05901910

BLT,HEX-FLG .31-18X2.25 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 05901738

BLT, HEX .25-20X1.25 G5 ZCC

$1.99

$

In Stock, Qty 5

0

13

Gravely 06500635

NUT-LK-CTR JAM .25-20 YWZC
(Superseded to 06500912)

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06500824

NUT-SPNLK-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

16

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05901911

BLT,HEX-FLG .31-18X2.75 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 07101311

ASSM TIRE\WHEEL, ASM

$182.99

$

Usually ships in 4-12 days

0

19

Gravely 07101314

TIRE, 20X8.00-10 (MONITOR)
(Superseded to 07101221)

Note: SERVICE PART

$182.99

$

Usually ships in 4-12 days

0

20

Gravely 05901903

BLT, HEX-FLG 0.375-16X13 GR5 ZC120

$13.99

$

In Stock, only 1 left!

0
