915206 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: 000101 - 019999) Engine - Kawasaki FR651 Parts Diagram

42" Zero-Turn Mower, 21.5hp Kawasaki FR

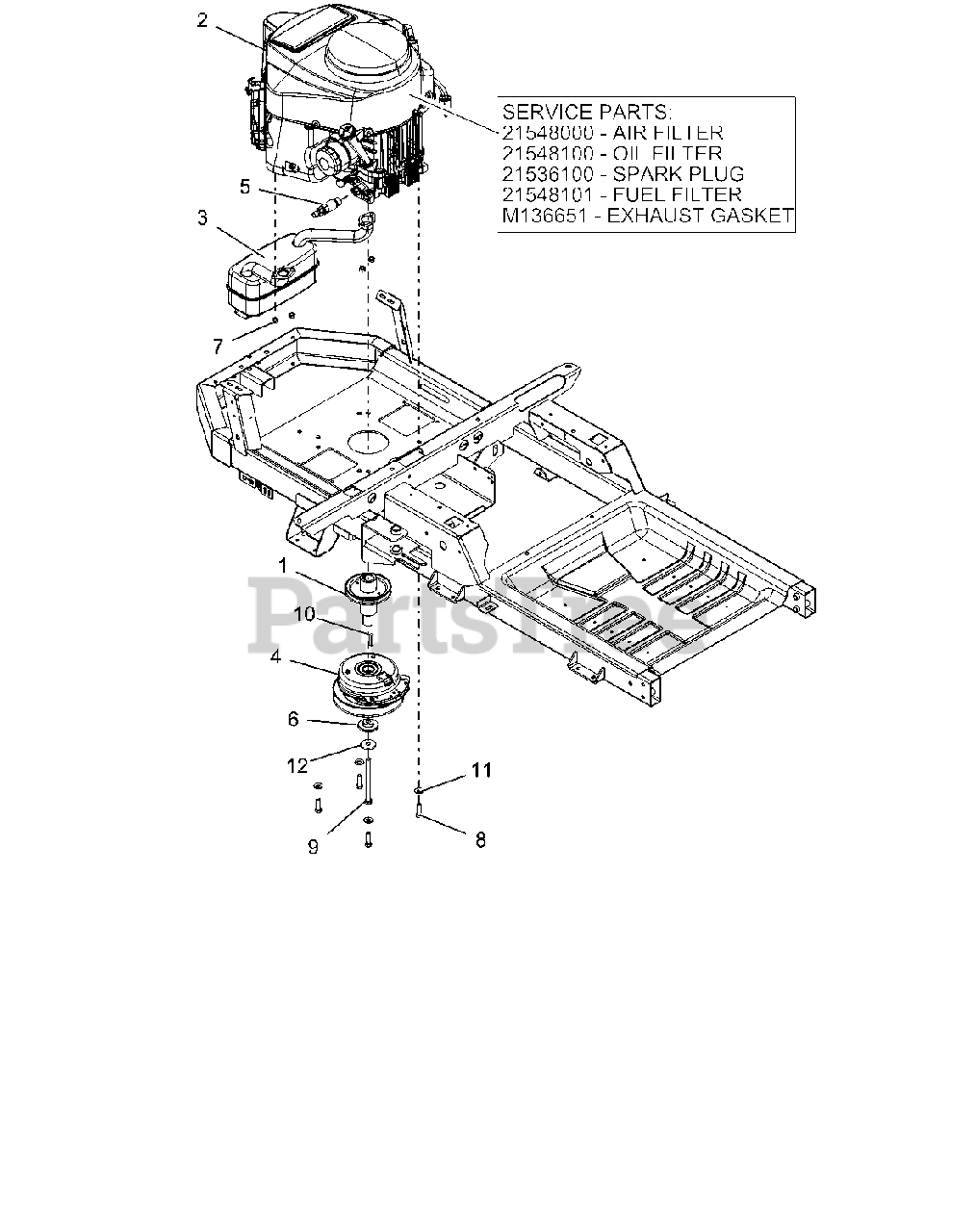

Engine - Kawasaki FR651 Parts Diagram

  • Title

1

Gravely 07345000

WLDMT, DRIVE SHEAVE (LONG)

$64.99

$

Usually ships in 4-12 days

0

2

Gravely 08201127

ENGINE, KAWASAKI FR651 21.5HP

$

$

Not available

2

Gravely 21548000

AIR FILTER

$17.99

$

In Stock, Qty 20+

0

2

Gravely 21548100

OIL FILTER
(Superseded to 49065-0721)

$18.99

$

In Stock, Qty 20+

0

2

Gravely 21536100

SPARK PLUG

$3.49

$

In Stock, Qty 11

0

2

Gravely 21548101

FUEL FILTER
(Superseded to 21573800)

$

$

Not available

2

Gravely M136651

EXHAUST GASKET
(Superseded to 00191627)

$7.99

$

Usually ships in 4-12 days

0

3

Gravely 04411300

MUFFLER, KAWASAKI
(Superseded to 05088300)

$102.99

$

In Stock, only 1 left!

0

4

Gravely 04678300

CLUTCH, ELEC 105 FT LB MONOPOLE 6.83"

$258.99

$

In Stock, Qty 6

0

5

Gravely 04977100

VALVE, DRAIN -M20X2.5

$12.99

$

In Stock, Qty 20+

0

6

Gravely 05501206

BSHG, -FLG .469 x 1.06 x .574 x 2.0

$19.99

$

In Stock, only 1 left!

0

7

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

8

Gravely 05901522

BLT-HEX .38-16X1.25 GR5 YWZC NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 11

0

9

Gravely 05901606

BLT-HEX .44-20X5.00 GR8 YWZC NYTORQ
(Superseded to 05901823)

$6.99

$

In Stock, only 1 left!

0

10

Gravely 06603400

KEY-SQ .250X.250X1.250

$3.99

$

In Stock, Qty 11

0

11

Gravely 06400927

WSHR, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

12

Gravely 06400936

WSHR, 7/16" SPRING DISC

$11.99

$

In Stock, only 1 left!

0
