915204 (ZT XL 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 035000 - 039999) Bumper Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

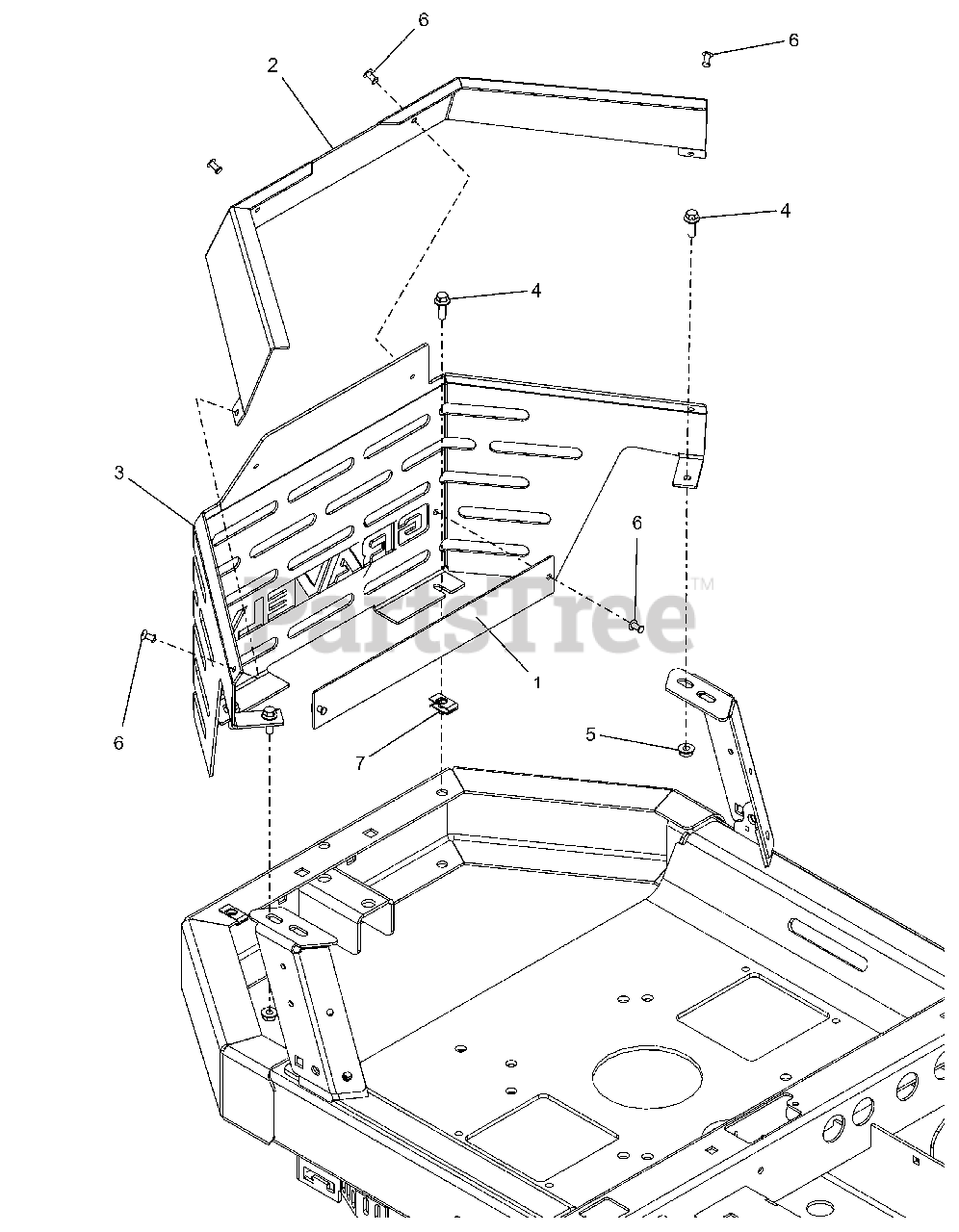

Bumper Parts Diagram

  • Title
1

Gravely 04820553

PLATE, SHROUD BACKER

$

$

Not available

2

Gravely 04889253

WLDMT, ENGINE SHROUD TRIM-XL

$145.99

$

Usually ships in 4-12 days

0

3

Gravely 04889351

SHROUD, ENGINE - GRAVELY XL

$126.99

$

In Stock, only 1 left!

0

4

Gravely 05901731

BLT,HEX-FLG .25-20X.75 G5 BFP

$

$

Not available

5

Gravely 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06800107

RIVET, #66 STEEL POP PD BLACK

$

$

Not available

7

Gravely 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0
