915202 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro (SN: 075000 - 079999) Idlers And Sheaves - 42" Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro

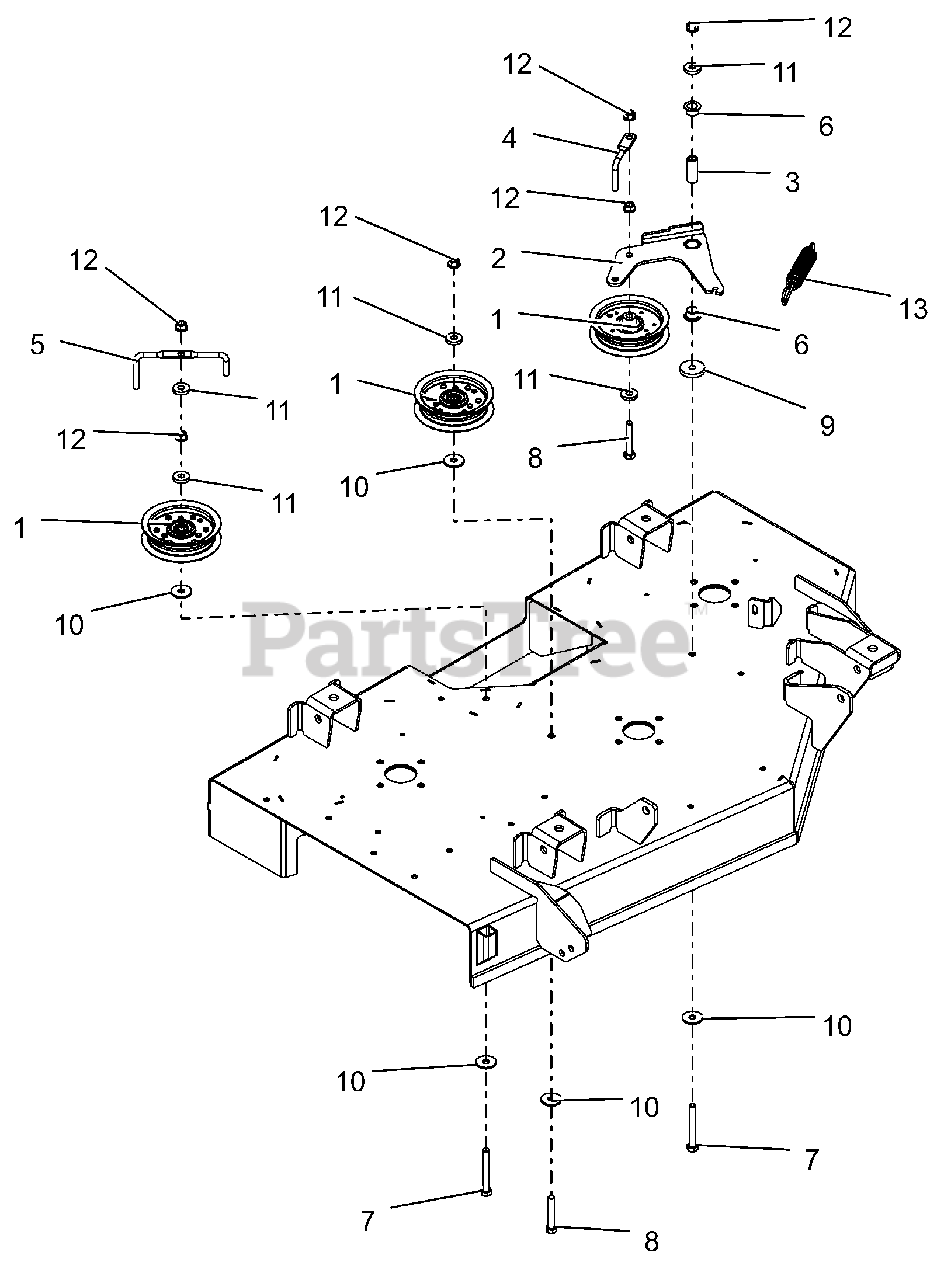

Idlers And Sheaves - 42" Parts Diagram

  • Title

1

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

2

Gravely 04773353

WLDMT, IDLER ARM-42"

$41.99

$

Usually ships in 4-12 days

0

3

Gravely 03763400

SPACER, .375IDX.625ODX1.66 PM

$3.99

$

In Stock, Qty 20+

0

4

Gravely 03828853

WIREFORM, BELT FINGER
(Superseded to 03828800)

$9.49

$

In Stock, only 1 left!

0

5

Gravely 03974153

WIREFORM, BELT FINGER
(Superseded to 03974100)

$

$

Not available

6

Gravely 05500907

BSHG-FLG, .625X.750X.500X1.00

$5.99

$

In Stock, Qty 20+

0

7

Gravely 05901815

BLT, HEX .38-16X3.00F G5 ZCC

$3.49

$

In Stock, only 1 left!

0

8

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

9

Gravely 06401110

WSHR, FLT .406X1.50X.245 ZCC

$3.99

$

In Stock, Qty 20+

0

10

Gravely 06401021

WSHR FL STL .406X1.25X.10ZC120

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 08320300

SG-TENS .135X.98X6.0 WLD 62

$17.99

$

In Stock, Qty 20+

0
