915200 (ZT XL 52) - Gravely 52" Zero-Turn Mower, 25hp Kohler Twin Pro (SN: 020000 - 029999) Front Caster Wheels Parts Diagram

52" Zero-Turn Mower, 25hp Kohler Twin Pro

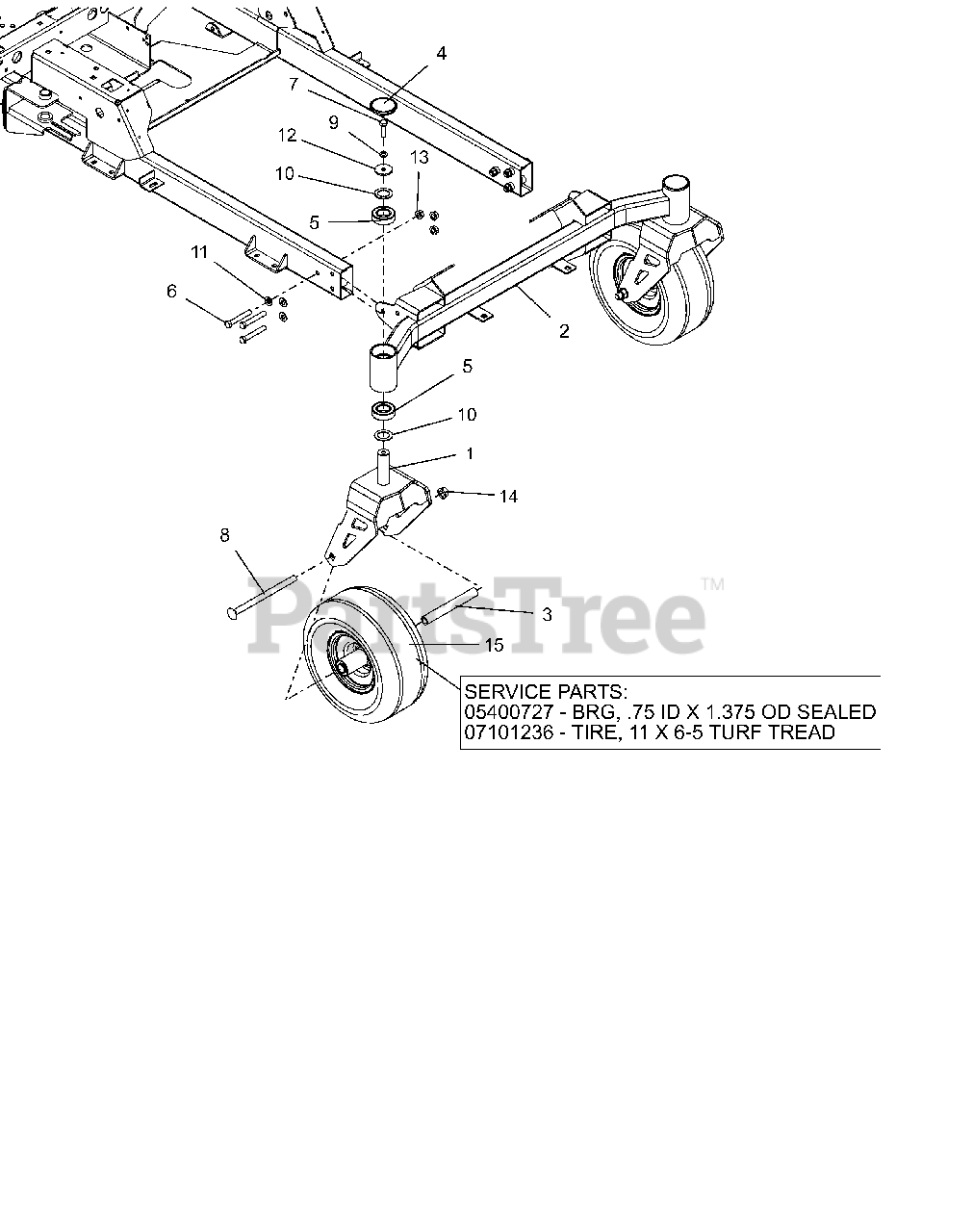

Front Caster Wheels Parts Diagram

  • Title

1

Gravely 04873053

WLDMT, CASTER FORK (WIDE)

$103.99

$

In Stock, only 1 left!

0

2

Gravely 04968653

WLDMT, AXLE FRONT

$264.99

$

Usually ships in 4-12 days

0

3

Gravely 00853400

SPACER, FRONT WHEEL (WIDE 6.0)

$14.99

$

In Stock, only 1 left!

0

4

Gravely 04792200

CAP, DUST

$12.99

$

In Stock, Qty 20+

0

5

Gravely 05400722

BRG,BALL 1.00X2.00X.563(1641)

$17.99

$

Usually ships in 4-12 days

0

6

Gravely 05901601

BLT-HEX .38-16X2.50 GR8 YWZC

$

$

Not available

7

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06200228

@BLT-RDHDSQNK .50-13X7.50 G5YZ
(Superseded to 06200509)

$6.99

$

In Stock, only 3 left!

0

9

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0

11

Gravely 06439900

WSHR-HDND .406X.812X.055

$0.99

$

Usually ships in 4-12 days

0

12

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 11

0

13

Gravely 06500736

NUT-LK-TOP-FLG .38-16 GRG YWZC
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07101105

TIRE/WHEEL ASSY, 11X6-5
(Superseded to 07101336)

$91.99

$

Usually ships in 4-12 days

0

15

Gravely 05400727

BRG, .75 ID X 1.375 OD SEALED

Note: SERVICE PART

$

$

Not available

15

Gravely 07101236

TIRE, 11X6-5 TURF TREAD

Note: SERVICE PART

$67.99

$

Usually ships in 4-12 days

0
