915200 (ZT XL 52) - Gravely 52" Zero-Turn Mower, 25hp Kohler Twin Pro (SN: 000101 - 019999) Rear Tires And Transaxles - 52" Parts Diagram

52" Zero-Turn Mower, 25hp Kohler Twin Pro

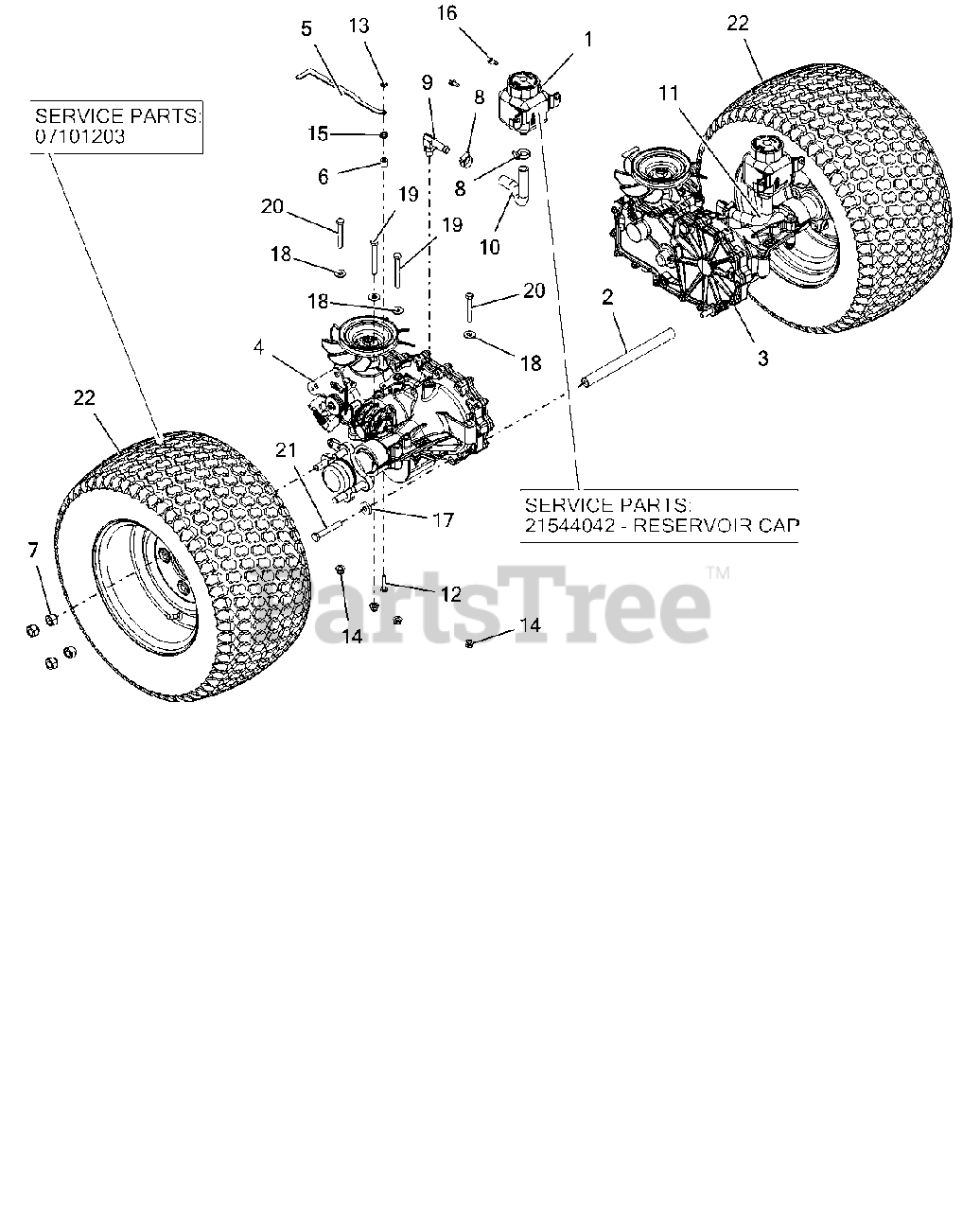

Rear Tires And Transaxles - 52" Parts Diagram

  • Title
1

Gravely 02970200

TANK, EXPANSION ZT2800

$34.99

$

In Stock, only 2 left!

0

1

Gravely 21544042

RESERVIOR CAP

$21.99

$

Usually ships in 4-12 days

0

2

Gravely 04875051

ROD, TRANSAXLE BRACE-9.27 (BLACK)

$54.99

$

In Stock, only 1 left!

0

3

Gravely 04879900

TRANSAXLE, ZT2800 - LH
(Superseded to 09160600)

$1427.99

$

Usually ships in 4-12 days

0

4

Gravely 04880100

TRANSAXLE, ZT2800 - RH
(Superseded to 09160700)

$1428.99

$

Usually ships in 4-12 days

0

5

Gravely 04884151

BRKT, VALVE DUMP -XL

$14.99

$

In Stock, only 1 left!

0

6

Gravely 05501112

BSHG, SLV .265X.500X.500

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 06517600

NUT, LUG .500-13
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06923500

CLAMP, .88 DIA HOSE

$1.99

$

In Stock, Qty 6

0

9

Gravely 07001528

FITTING, HYD (90 DEG)

$

$

Not available

10

Gravely 07001732

HOSE, EXPANSION TANK-FORMED RH

$20.99

$

Usually ships in 4-12 days

0

11

Gravely 07001735

HOSE, EXPANSION TANK-FORMED LH

$20.99

$

Usually ships in 4-12 days

0

12

Gravely 05947400

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

13

Gravely 06500635

NUT-LK-CTR-JAM .25-20 YWZC
(Superseded to 06500912)

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZC
(Superseded to 06401108)

$2.49

$

In Stock, Qty 7

0

18

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05960600

BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

20

Gravely 05963700

BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 07101222

TIRE, 20X10.00-10
(Superseded to 07101312)

$159.99

$

Usually ships in 4-12 days

0

22

Gravely 07101203

ASSM TIRE\WHEEL, 20 X 10.00 - 10
(Superseded to 07101312)

$159.99

$

Usually ships in 4-12 days

0
