915198 (ZT XL 48) - Gravely 48" Zero-Turn Mower, CARB (SN: 000101 & Above) Electrical System Parts Diagram

48" Zero-Turn Mower, CARB

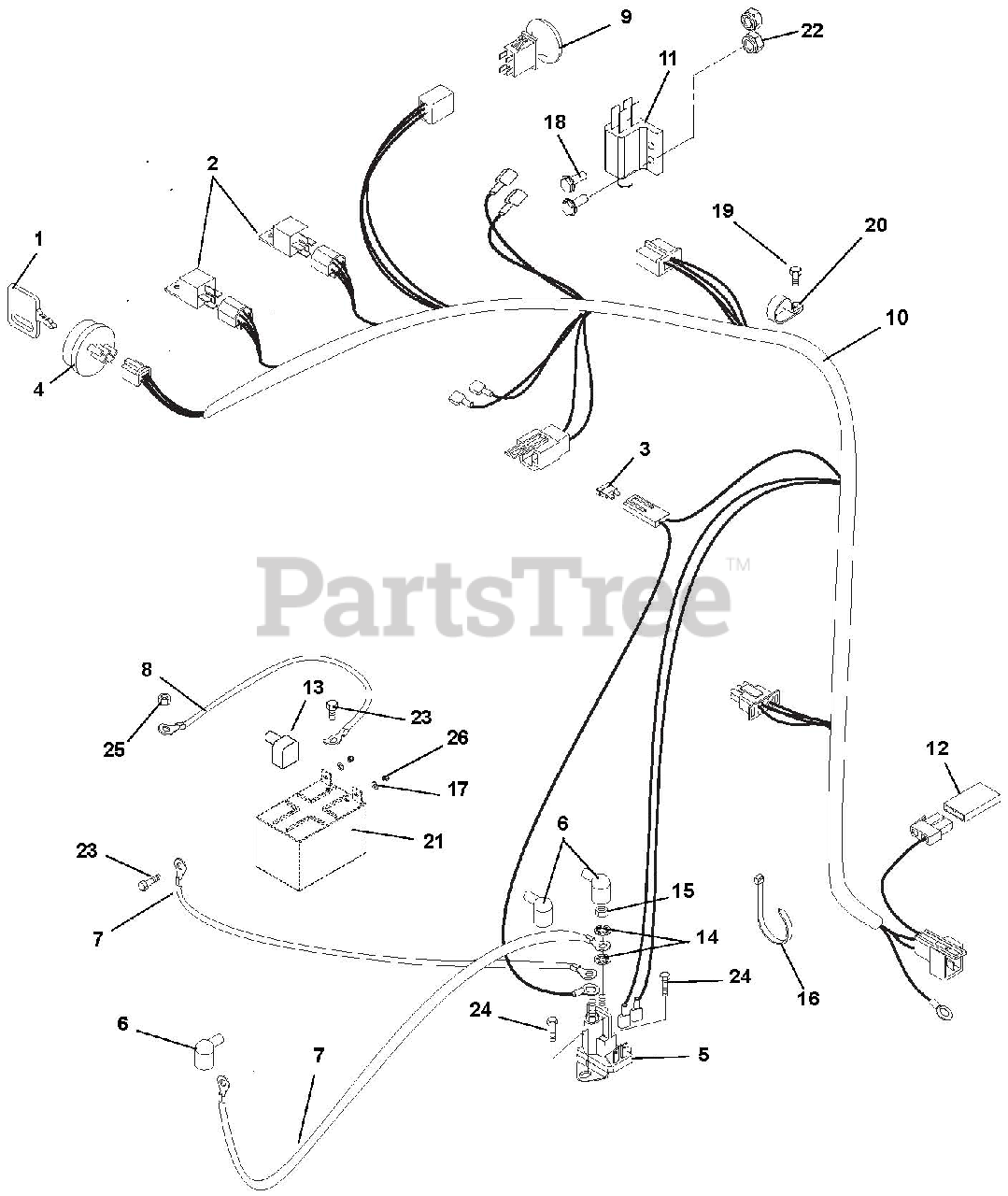

Electrical System Parts Diagram

  • Title
1

Gravely 02460700

Key with Cap

$7.99

$

In Stock, Qty 20+

0

2

Gravely 03042800

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

3

Gravely 09351100

Fuse, 30 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

4

Gravely 01588300

Key Switch

$30.99

$

In Stock, only 1 left!

0

5

Gravely 04781700

Solenoid,Starter

Note: (Sealed)

$44.99

$

In Stock, only 1 left!

0

6

Gravely 07533200

Boot, Eyelet Terminal

$3.49

$

In Stock, only 2 left!

0

7

Gravely 04787500

Starter Cable

$

$

Not available

8

Gravely 03287100

Cable, Ground .25 x 13.00 x .31

$14.99

$

In Stock, only 1 left!

0

9

Gravely 01545600

Switch, Clutch With Retainer

$25.99

$

In Stock, Qty 20+

0

10

$137.99

$

Usually ships in 4-12 days

0

11

Gravely 03606600

Switch, Double Pole N.O. / N.O.

$17.99

$

In Stock, only 1 left!

0

12

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 2 left!

0

13

Gravely 07505700

Insulator

$9.49

$

Usually ships in 4-12 days

0

14

Gravely 06306800

Washer, Locking .31
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

15

Gravely 06539800

Nut, Jam .31-24
(Superseded to 06500925)

$

$

Not available

16

Gravely 07517300

Cable Tie

$

$

Not available

17

Gravely 06437300

Washer, FL-STL .281x.62x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06116900

Screw, Hex Washer Head Machine 10-24 x .75
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

19

Gravely 07412900

Screw, Tapping Hex Washer Head Thread Rolling .38-16 x .50
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06900036

Clamp, Cushioned Steel .75

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 04738800

Battery, 12V-12A-190CCA

$122.99

$

In Stock, Qty 20+

0

22

Gravely 06536000

NUT, LOCKING NYLON 10-24 WITH INSERT
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 05946800

Bolt-Hex .25-20x.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 07411600

Screw-Tap .25-20x.37 HWH YWZTR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06543500

Nut-Lock Top FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06509200

Nut - KEPS .25-.20
(Superseded to 06500921)

$1.49

$

In Stock, only 1 left!

0

27

Gravely 07800336

Decal, U1 Battery Replacement

$

$

Not available
