915195 - Ariens Zoom XL 48" Zero-Turn Mower, 22hp Kohler Twin, CARB (SN: 000101 & Above) Fuel Tank: CARB Parts Diagram

Zoom XL 48" Zero-Turn Mower, 22hp Kohler Twin, CARB

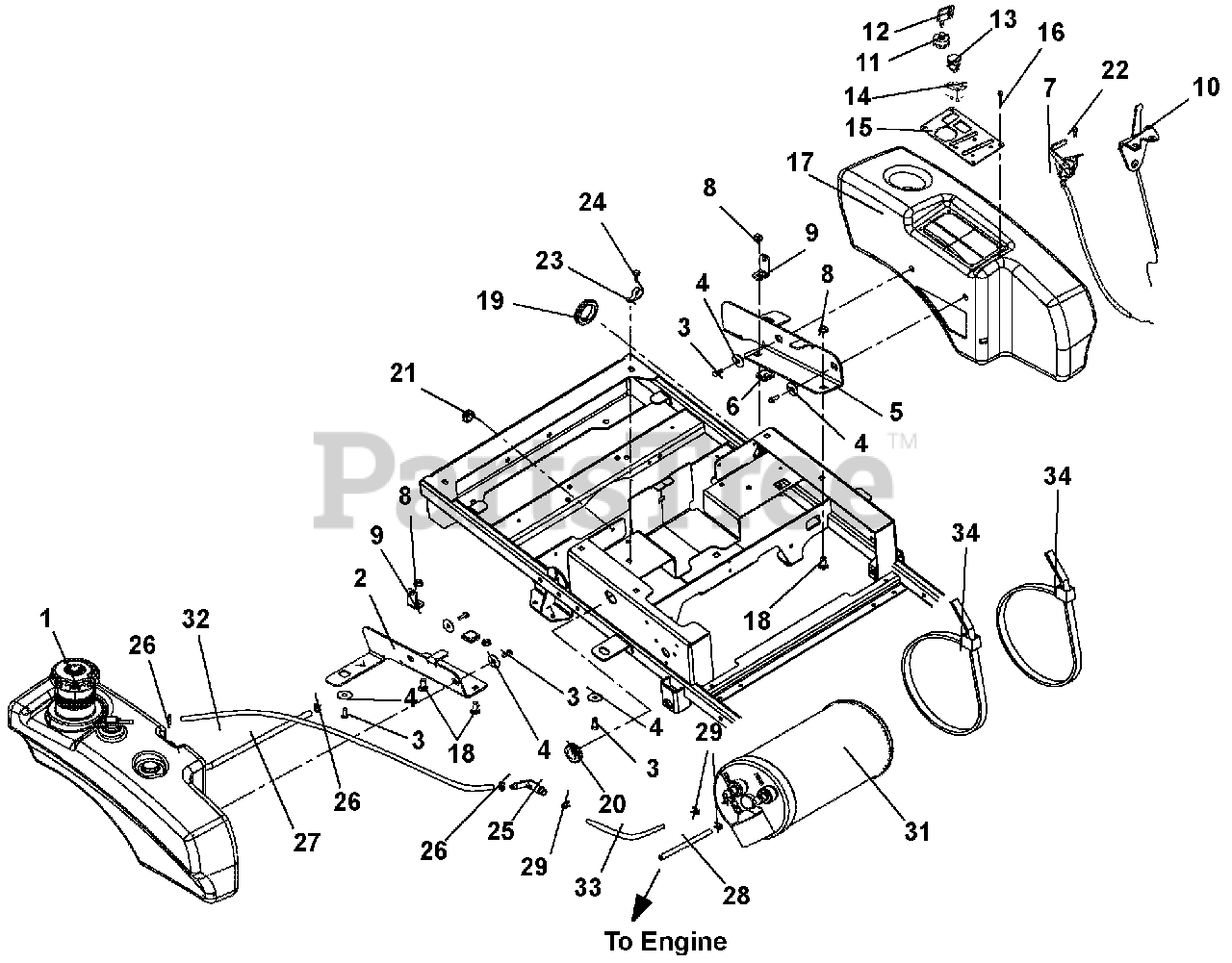

Fuel Tank: CARB Parts Diagram

  • Title

1

Ariens 04429900

TANK, XL NON-PERM ASSEMBLY
(Superseded to 04737800)

$352.99

$

Usually ships in 4-12 days

0

2

Ariens 02973359

BRKT, RH REAR TANK MOUNT

$

$

Not available

3

Ariens 07049500

BLT-SERHFWH .312-18X.50 YWZC

$2.49

$

Usually ships in 4-12 days

0

4

Ariens 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$2.49

$

In Stock, only 2 left!

0

5

Ariens 02973459

BRKT, LH REAR TANK MOUNT

$

$

Not available

6

Ariens 07500037

GRIP, RUBBER (1.0X1.0X.187)BLK

$

$

Not available

7

Ariens 06900423

CABLE, XL THROTTLE

$40.99

$

In Stock, only 1 left!

0

8

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 03200051

BRKT, HOOD PIVOT

$36.99

$

Usually ships in 4-12 days

0

10

Ariens 06900424

CABLE, XL CHOKE

$40.99

$

In Stock, only 1 left!

0

11

Ariens 01588300

KEY SWITCH

$31.99

$

In Stock, only 1 left!

0

12

Ariens 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

13

Ariens 01545600

SWITCH, CLUTCH

$26.99

$

In Stock, Qty 20+

0

14

Ariens 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

15

Ariens 03887051

CONTROL PANEL

$31.99

$

Usually ships in 4-12 days

0

16

Ariens 07400106

SCR-HEX .25X14-.75

$2.49

$

In Stock, only 1 left!

0

17

Ariens 02967400

FENDER, XL

$147.99

$

Usually ships in 4-12 days

0

18

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

19

Ariens 07500017

GROMMET 1.70ID X 2.0OD

$5.49

$

Usually ships in 4-12 days

0

20

Ariens 07506500

GROMMET 1.0ID X 1.38 OD

$3.49

$

In Stock, only 1 left!

0

21

Ariens 07500031

GROMMET,RUBBER 5/8 ID/1.13 OD

$3.49

$

Usually ships in 4-12 days

0

22

Ariens 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

23

Ariens 06900036

CLAMP, CUSHIONED STEEL .75

$5.99

$

Usually ships in 4-12 days

0

24

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 04097000

FITTING-3/16X1/4 90DEGREE VAC

$14.99

$

Usually ships in 4-12 days

0

26

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

27

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

28

Ariens 03375900

HOSE, .188 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 10

0

29

Ariens 04097700

CLAMP-HOSE, SPRING .188

$1.49

$

Usually ships in 4-12 days

0

30

Ariens 07500314

CAP, END .315 X 1.00

$

$

Not available

31

Ariens 04058210

400 CC CARBON CANISTER 3/16 PT

$96.99

$

Usually ships in 4-12 days

0

32

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

33

Ariens 03375900

HOSE, .188 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 10

0

34

Ariens 04003800

TIE WRAP

$

$

Not available
