915193 - Ariens Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton, CARB (SN: 000101 - 044999) Parking Brake Parts Diagram

Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton, CARB

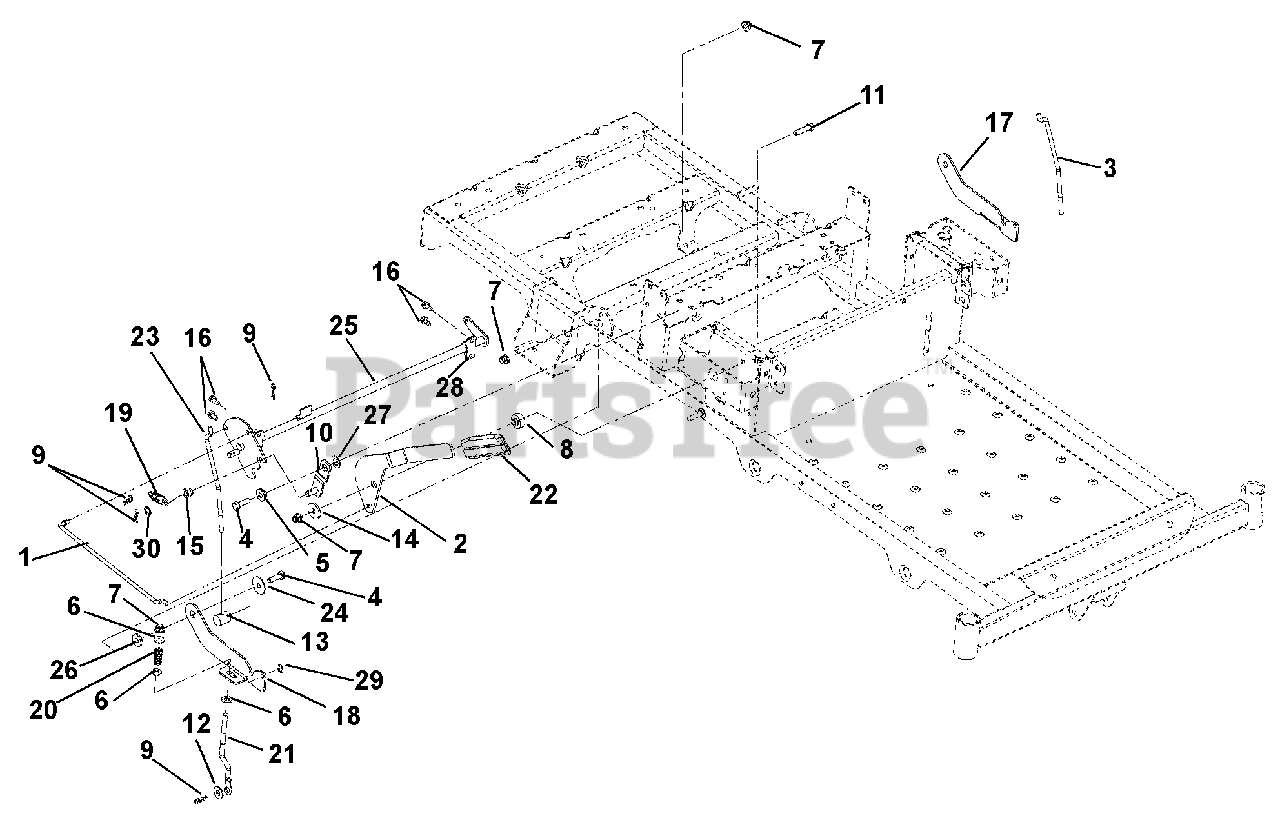

Parking Brake Parts Diagram

  • Title

1

Ariens 03759400

LINK, BRAKE HANDLE

$14.99

$

In Stock, only 1 left!

0

2

Ariens 03759167

HANDLE, PARKING BRAKE

$46.99

$

Usually ships in 4-12 days

0

3

Ariens 03823300

LINK, NEUTRAL LH

$13.99

$

Usually ships in 4-12 days

0

4

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 3 left!

0

6

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 03769400

SPCR,BRAKE .32X.49X.192X1.00

$

$

Not available

9

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 03759200

WELDMENT,DETENT ARM

$19.99

$

Usually ships in 4-12 days

0

11

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

12

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 03764800

TRUNION, 1/4-20

$13.99

$

In Stock, Qty 20+

0

14

Ariens 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0

15

Ariens 03764900

ROLLER

$3.49

$

Usually ships in 4-12 days

0

16

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 03759067

LATCH, LH NEUTRAL
(Superseded to 03759000)

$

$

Not available

18

Ariens 03758967

LATCH, RH NEUTRAL
(Superseded to 03758900)

$

$

Not available

19

Ariens 08326700

SG-TENS .072X.565X1.87

$20.99

$

In Stock, only 1 left!

0

20

Ariens 08300028

SPRING, COMPRESSION

$4.99

$

In Stock, Qty 7

0

21

Ariens 03759667

LINK, BRAKE COG
(Superseded to 03759600)

$

$

Not available

22

Ariens 03826900

GRIP, PARKING BRAKE (YELLOW)

$3.99

$

In Stock, only 1 left!

0

23

Ariens 03759500

LINK, NEUTRAL RH

$18.99

$

In Stock, only 2 left!

0

24

Ariens 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$2.49

$

In Stock, only 2 left!

0

25

Ariens 03761167

WLDMT, BRAKE SHAFT
(Superseded to 03761151)

$31.99

$

Usually ships in 4-12 days

0

26

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

27

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

28

Ariens 03757501

BUSHING-.50 CLAMP BLOCK MOLDED

$3.99

$

In Stock, only 2 left!

0

29

Ariens 05700125

RG-RTNG-EXT .250X.025

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06400840

WSHR,.385X.745X.030 STL YWZC
(Superseded to 06401107)

$2.49

$

In Stock, only 1 left!

0
