915189 - Ariens Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 - 044999) Seat And Seat Support Parts Diagram

Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton

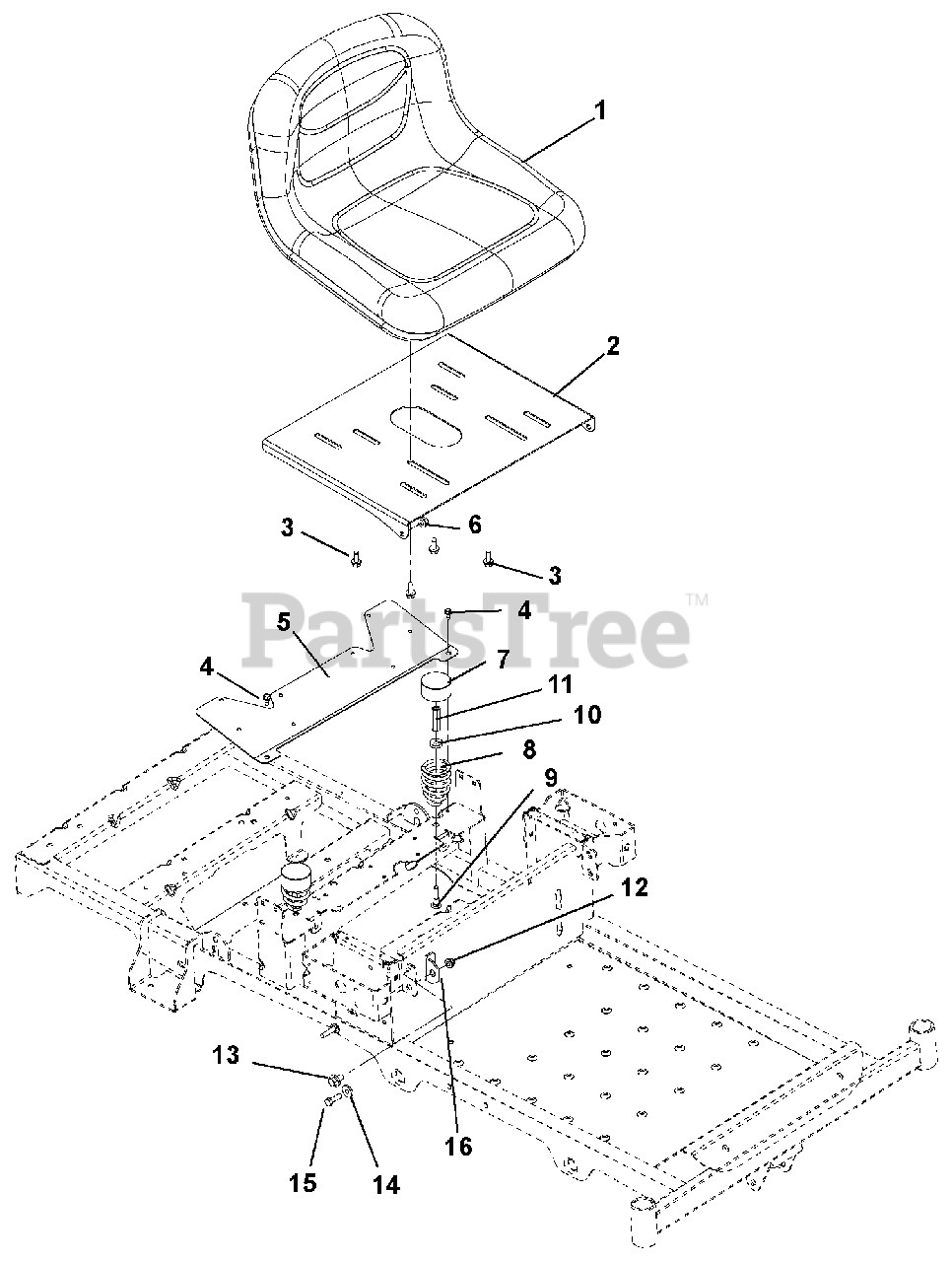

Seat And Seat Support Parts Diagram

  • Title

1

Ariens 03795800

SEAT-13" GREY

$

$

Not available

2

Ariens 03782051

PLATE, SEAT

$98.99

$

Usually ships in 4-12 days

0

3

Ariens 05900033

5/16-18X3/4 HX/W/HD WHIZ
(Superseded to 07001820)

$

$

Not available

4

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 03753351

GUARD, FAN
(Superseded to 51534500)

$55.99

$

Usually ships in 4-12 days

0

6

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

8

Ariens 08300021

SPRING, SEAT

$20.99

$

Usually ships in 4-12 days

0

9

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 1 left!

0

11

Ariens 06500015

NUT, COUPLING 5/16-18 X 1 3/4
(Superseded to 06500927)

$3.99

$

In Stock, only 1 left!

0

12

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

14

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

15

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 03798751

BRKT, SEAT STOP

$64.99

$

Usually ships in 4-12 days

0
