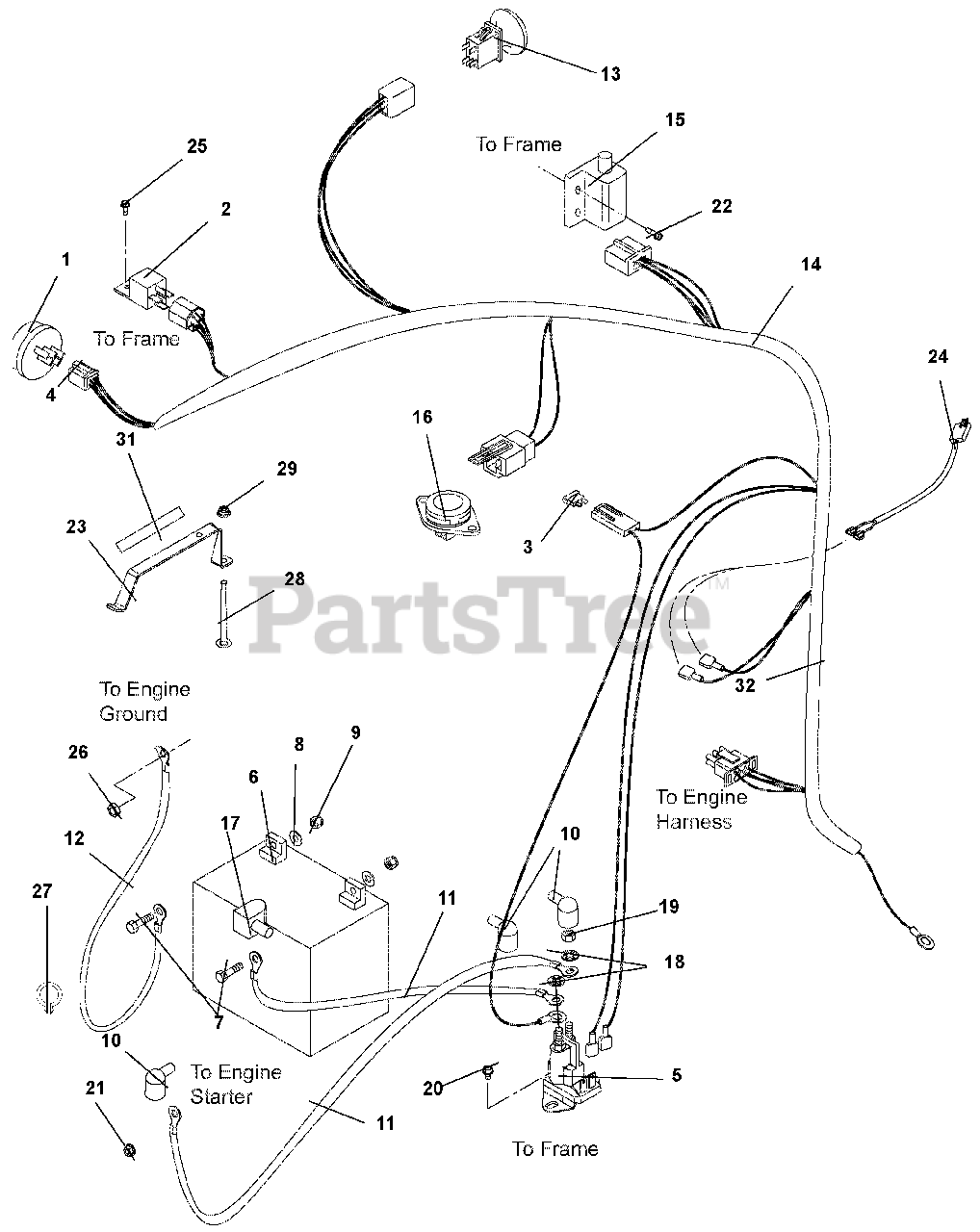

915189 - Ariens Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 - 044999) Electrical System Parts Diagram

Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton

Electrical System Parts Diagram

  • Title

1

Ariens 03927000

KEY, 03290500 KEYSWITCH

$9.99

$

In Stock, Qty 13

0

2

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

3

Ariens 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

4

Ariens 03290500

KEYSWITCH-IGNITION 3 POS

$18.99

$

In Stock, Qty 20+

0

5

Ariens 04781700

SOLENOID, STARTER (SEALED)

$44.99

$

In Stock, only 1 left!

0

6

Ariens 04738800

BATTERY, 12V 12A-190CCA

$122.99

$

In Stock, Qty 20+

0

7

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06509200

NUT-KEPS .250-20
(Superseded to 06500921)

$1.49

$

In Stock, only 1 left!

0

10

Ariens 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 2 left!

0

11

Ariens 04787400

CABLE,POS W/2 1/4 RING 15.0 LG

$9.99

$

In Stock, only 1 left!

0

12

Ariens 04249900

CABLE, NEGATIVE 26" 6 GA.

$34.99

$

In Stock, only 1 left!

0

13

Ariens 04399600

SWITCH, CLUTCH (YELLOW)

$22.99

$

In Stock, only 1 left!

0

14

Ariens 04782000

HARNESS, ZOOM/ZT WIRE

$85.99

$

Usually ships in 4-12 days

0

15

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

16

Ariens 03654200

SWITCH- SEAT

$

$

Not available

17

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

18

Ariens 06306800

@WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

19

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07400038

SCR- 12-14X.75 HX W/HD TEK ZC

$

$

Not available

23

Ariens 04385351

HOLDDOWN, BATTERY, U1&190CCA

$22.99

$

Usually ships in 4-12 days

0

24

Ariens 03972600

HARNESS, CLUTCH

$

$

Not available

25

Ariens 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

26

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 00390100

WIRE CLIP

$3.49

$

Usually ships in 4-12 days

0

28

Ariens 06200211

@BLT-RDHDSQNK .25-20X4.50 G2YZ
(Superseded to 06200308)

$2.99

$

Usually ships in 4-12 days

0

29

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

30

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available
