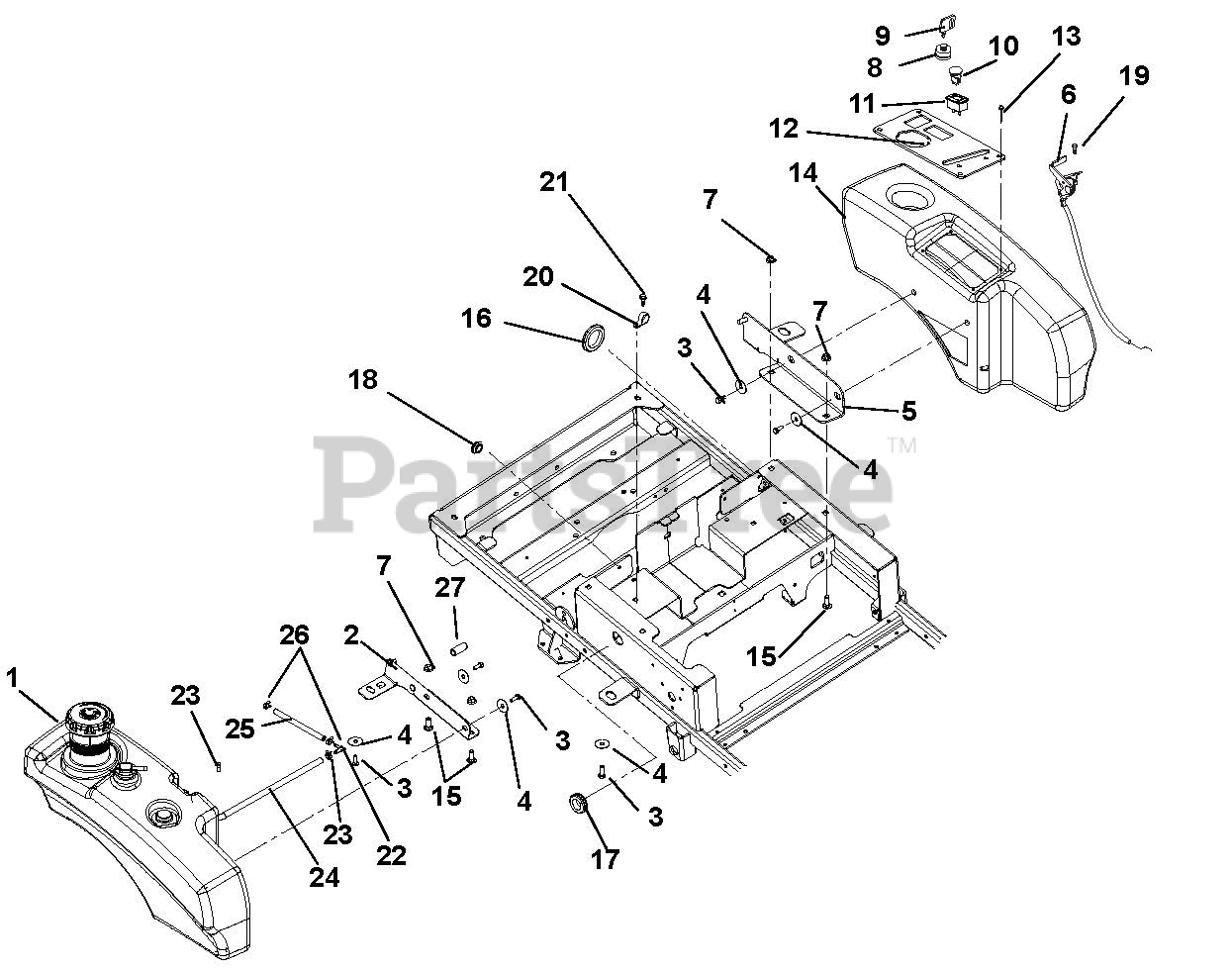

915184 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler (SN: 045000 & Above) Fuel Tank Parts Diagram

42" Zero-Turn Mower, 24hp Kohler

Fuel Tank Parts Diagram

  • Title

1

Gravely 04429900

Tank, XL Non-Permeable Fuel
(Superseded to 04737800)

$352.99

$

Usually ships in 4-12 days

0

1

Gravely 07500309

GAUGE, REMOTE FUEL SEALED 10"

Note: NOT SHOWN

$

$

Not available

1

Gravely 07500221

GROMMET, FUEL GUAGE

Note: NOT SHOWN

$5.99

$

In Stock, only 1 left!

0

1

Gravely 04558000

CAP, FUEL VENT IN AUTOLOCK
(Superseded to 09190300)

Note: NOT SHOWN

$33.99

$

In Stock, Qty 20+

0

1

Gravely 04280700

ASM, FUEL PICK-UP - XL

Note: NOT SHOWN

$35.99

$

Usually ships in 4-12 days

0

2

Gravely 04718053

Weldment, RH Tank Mount

$51.99

$

Usually ships in 4-12 days

0

3

Gravely 07049500

Bolt, Serrated Hex Flange Washer Head .312-18 x .50

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 06446900

Washer, Flat Steel .347 x 1.254 x .048
(Superseded to 06401105)

$2.49

$

In Stock, only 2 left!

0

5

Gravely 04718153

Weldment, LH Fender Mount

$

$

Not available

6

Gravely 06900423

Cable, Throttle

$40.99

$

In Stock, only 1 left!

0

7

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 01588300

Key Switch

$30.99

$

Usually ships in 4-12 days

0

9

Gravely 02460700

Key, w/Cap

$7.99

$

In Stock, Qty 20+

0

10

Gravely 01545600

Switch, Clutch

$25.99

$

In Stock, Qty 20+

0

11

Gravely 03966800

Hour Meter, Digital
(Superseded to 09497400)

$23.99

$

In Stock, only 3 left!

0

12

Gravely 04824151

Panel, Control

$

$

Not available

13

Gravely 07400106

Screw, Hex .25 x 14-.75

$2.49

$

In Stock, only 1 left!

0

14

Gravely 02967400

Fender, XL

$147.99

$

Usually ships in 4-12 days

0

15

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 12

0

16

Gravely 07500017

Grommet, 2.00"

$5.49

$

Usually ships in 4-12 days

0

17

Gravely 07506500

Grommet .125 x 1.000 ID

$3.49

$

In Stock, only 1 left!

0

18

Gravely 07500031

Grommet, Rubber 5/8 ID/1.13 OD

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 07415800

Screw, Tapping 10-24 x .50 Hex Washer Head Thread
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

20

Gravely 06900036

Clamp, Cushioned Steel

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 07412900

Screw, Tap Hex Washer Head .38-16 x .5
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 04097000

Fitting, 3/16 x 1/4 90 Degree VAC

$14.99

$

Usually ships in 4-12 days

0

23

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

24

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas

$1.49

$

In Stock, Qty 20+

0

25

Gravely 03375900

Hose, .188 Low-Perm Bulk Gas

$0.99

$

Usually ships in 4-12 days

0

26

Gravely 04097700

Clamp, Hose, Spring .188

$

$

Not available

27

Gravely 07500314

Cap, End .315 x 1.00

$

$

Not available
