915184 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler (SN: 030000 - 044999) Parking Brake Parts Diagram

42" Zero-Turn Mower, 24hp Kohler

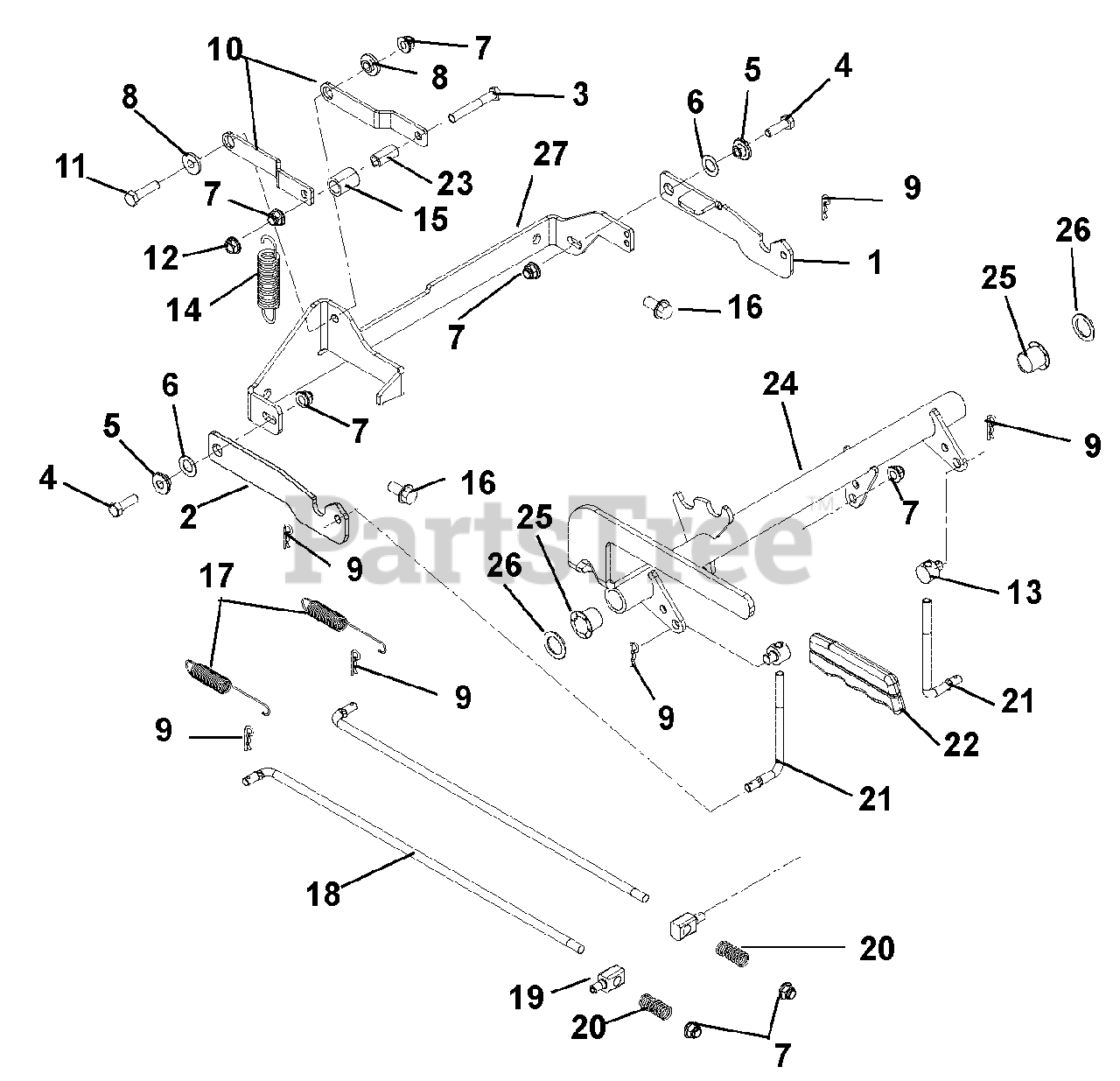

Parking Brake Parts Diagram

  • Title
1

Gravely 00952100

Link, Brake Interlock

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 00952000

Interlock, Brake
(Superseded to 00952067)

$

$

Not available

3

Gravely 05963700

Bolt, Hex .31-18 x 2.25 Grade 5
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05514800

Bushing, Flange .312 x .500 x .344 x .880

$2.49

$

In Stock, only 3 left!

0

6

Gravely 06436000

Washer, Flat Steel .505 x .875 x .024

$2.49

$

In Stock, only 4 left!

0

7

Gravely 06545400

Nut, Flange Nyloc 5/16-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 01305900

Shoulder Spacer

$2.49

$

In Stock, only 1 left!

0

9

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 00952200

Arm, Brake Cam

$

$

Not available

11

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

12

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 01596400

Trunnion, Brake

$51.99

$

Usually ships in 4-12 days

0

14

Gravely 08311700

Spring, Tension .105 x .812 x 3.88

$7.99

$

In Stock, only 1 left!

0

15

Gravely 02973100

Roller, Cam Lock

$13.99

$

In Stock, only 1 left!

0

16

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 08300017

Spring, Tension .056 x .60 x 4.40

$5.99

$

In Stock, Qty 20+

0

18

Gravely 01959400

Rod, Park Brake

$17.99

$

Usually ships in 4-12 days

0

19

Gravely 09267300

Pin, Pivot

$6.99

$

In Stock, only 1 left!

0

20

Gravely 08300028

Spring, Compression

$4.99

$

In Stock, Qty 7

0

21

Gravely 01921600

Link, Interlock Brake

$77.99

$

Usually ships in 4-12 days

0

22

Gravely 03826900

Grip, Park Brake

$3.99

$

In Stock, only 1 left!

0

23

$6.49

$

In Stock, only 2 left!

0

24

Gravely 00826451

Weldment, Brake Shaft

$120.99

$

Usually ships in 4-12 days

0

25

Gravely 05500822

Bushing, IGLIDE Clip

$

$

Not available

26

Gravely 06441400

Washer, Flat Steel .754 x 1.125 x .062
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 01959351

Bracket, Brake Mounting

$

$

Not available
