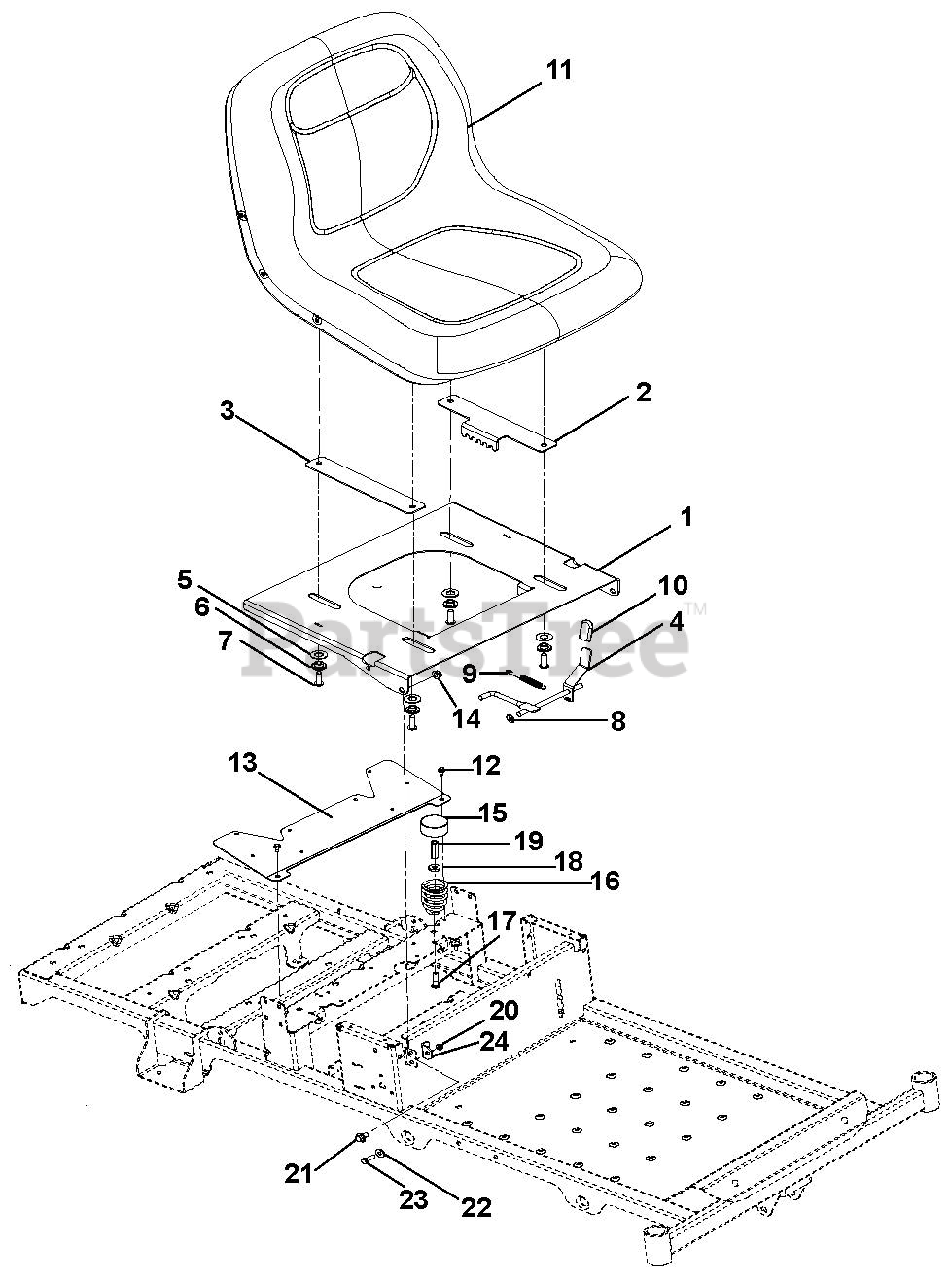

915178 (ZT 42) - Gravely 42" Zero-Turn Mower, Kohler (SN: 000101 - 034999) Seat And Seat Support Parts Diagram

42" Zero-Turn Mower, Kohler

Seat And Seat Support Parts Diagram

  • Title

1

Gravely 04376251

Plate, Adjustable Seat

$103.99

$

Usually ships in 4-12 days

0

2

Gravely 04376951

Plate, Adjustable Seat Track

$13.99

$

In Stock, only 1 left!

0

3

Gravely 04377051

Plate Adjustable Seat Slide

$22.99

$

Usually ships in 4-12 days

0

4

Gravely 04377167

Weldment, Adjustable Seat Latch

$

$

Not available

5

Gravely 06439200

Washer, Flat Steel .505 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05514800

Bushing, Flange .32 x .500 x .344 x .880

$2.49

$

In Stock, only 1 left!

0

7

Gravely 05901508

Screw, Socket Head, Button Head .31-18 x 1.00
(Superseded to 05901840)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06514900

Push Nut 5/16

$0.99

$

In Stock, Qty 20+

0

9

Gravely 08321100

Spring Tension .043 x .44 x 3.31 Weldment 5.8

$6.49

$

In Stock, Qty 6

0

10

Gravely 04396600

Grip, Seat Lever, Grey

$

$

Not available

11

Gravely 04278000

Seat, Milsco XB180 Grey
(Superseded to 51521700)

$

$

Not available

12

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head Thread
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 03753351

Guard, Fan
(Superseded to 51534500)

$55.99

$

Usually ships in 4-12 days

0

14

Gravely 06542000

Nut, .38-16 Locking Top Flange
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 00337700

Hub Cap

$2.99

$

In Stock, Qty 20+

0

16

Gravely 08300021

Spring, Seat

$20.99

$

Usually ships in 4-12 days

0

17

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50
(Superseded to 06200233)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06439100

Washer, Flat Steel .328 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 1 left!

0

19

Gravely 06500015

Nut, Coupling 5/16-18 x 1.75
(Superseded to 06500927)

$3.99

$

In Stock, only 1 left!

0

20

Gravely 06545400

Nut, 5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07056700

Bolt, Shoulder .375-16 x .135

$3.99

$

In Stock, only 2 left!

0

22

Gravely 01305900

Bushing, Flange .325 x .499 x .26 x .88

$2.49

$

In Stock, only 1 left!

0

23

Gravely 05946900

Bolt, Hex .31-18 x 1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 03798751

Bracket, Seat Stop

$64.99

$

Usually ships in 4-12 days

0
