915177 - Ariens Ikon-X 52" Zero-Turn Mower, 24hp Kohler Twin (SN: 016000 & Above) Engine - Kohler KT735 Parts Diagram

Ikon-X 52" Zero-Turn Mower, 24hp Kohler Twin

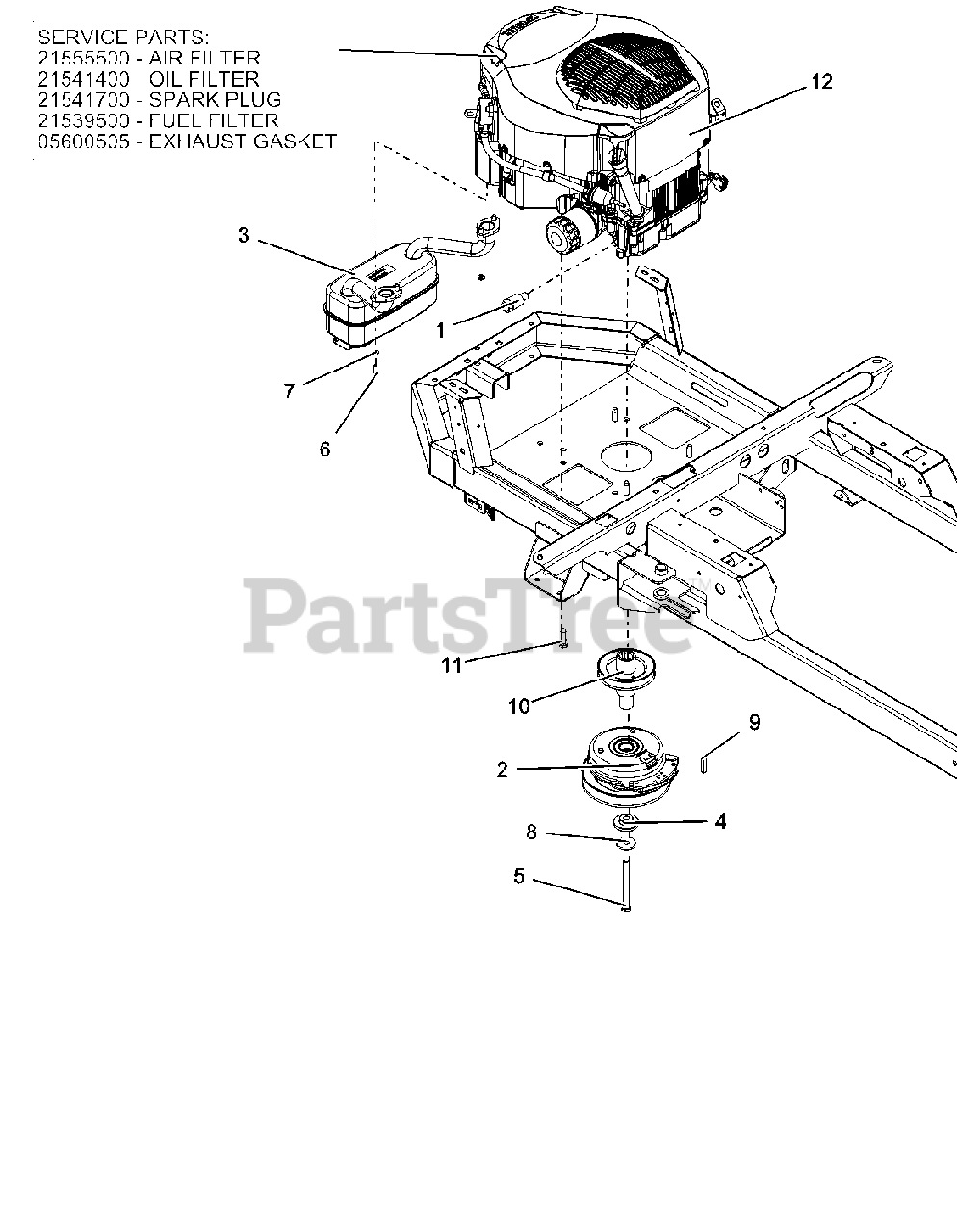

Engine - Kohler KT735 Parts Diagram

  • Title

1

Ariens 03943600

DRAIN, OIL

$14.99

$

In Stock, only 2 left!

0

2

Ariens 04678300

CLUTCH,105FTLB MONOPOLE 6.83"

$258.99

$

In Stock, only 4 left!

0

3

Ariens 04783600

MUFFLER, KOHLER TWIN

$134.99

$

Usually ships in 4-12 days

0

4

Ariens 05501206

BSHG-FLG .469X1.06X.574X2.0

$19.99

$

In Stock, only 1 left!

0

5

Ariens 05901707

BLT-HEX.438-20X4.5GR8YZ NYTORQ
(Superseded to 05901820)

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

$2.49

$

In Stock, only 2 left!

0

7

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 1 left!

0

9

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

10

Ariens 07345100

WLDMT, DRIVE SHEAVE-X

$75.99

$

Usually ships in 4-12 days

0

11

Ariens 07414700

@SCR-TAP .38-16X1.25 HWH TR YZ
(Superseded to 07400128)

$2.99

$

In Stock, only 3 left!

0

12

Ariens 21539500

FILTER, FUEL

Note: SERVICE PART

$12.99

$

In Stock, Qty 12

0

12

Ariens 21541700

PLUG, SPARK

Note: SERVICE PART

$4.49

$

In Stock, Qty 17

0

12

Ariens 21541400

FILTER, ENGINE OIL (COURAGE)
(Superseded to 21397200)

Note: SERVICE PART

$20.99

$

In Stock, Qty 5

0

12

Ariens 05600505

GASKET, MUFFLER COURAGE TWIN

Note: SERVICE PART

$9.99

$

Usually ships in 4-12 days

0

12

Ariens 21555500

AIR CLEANER, KOHLER

Note: SERVICE PART

$29.99

$

Usually ships in 4-12 days

0

12

Ariens 08201108

ENGINE, KOHLER 24HP TWIN

$

$

Not available
