915176 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro, CARB (SN: 020000 - 029999) Deck Lift Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro, CARB

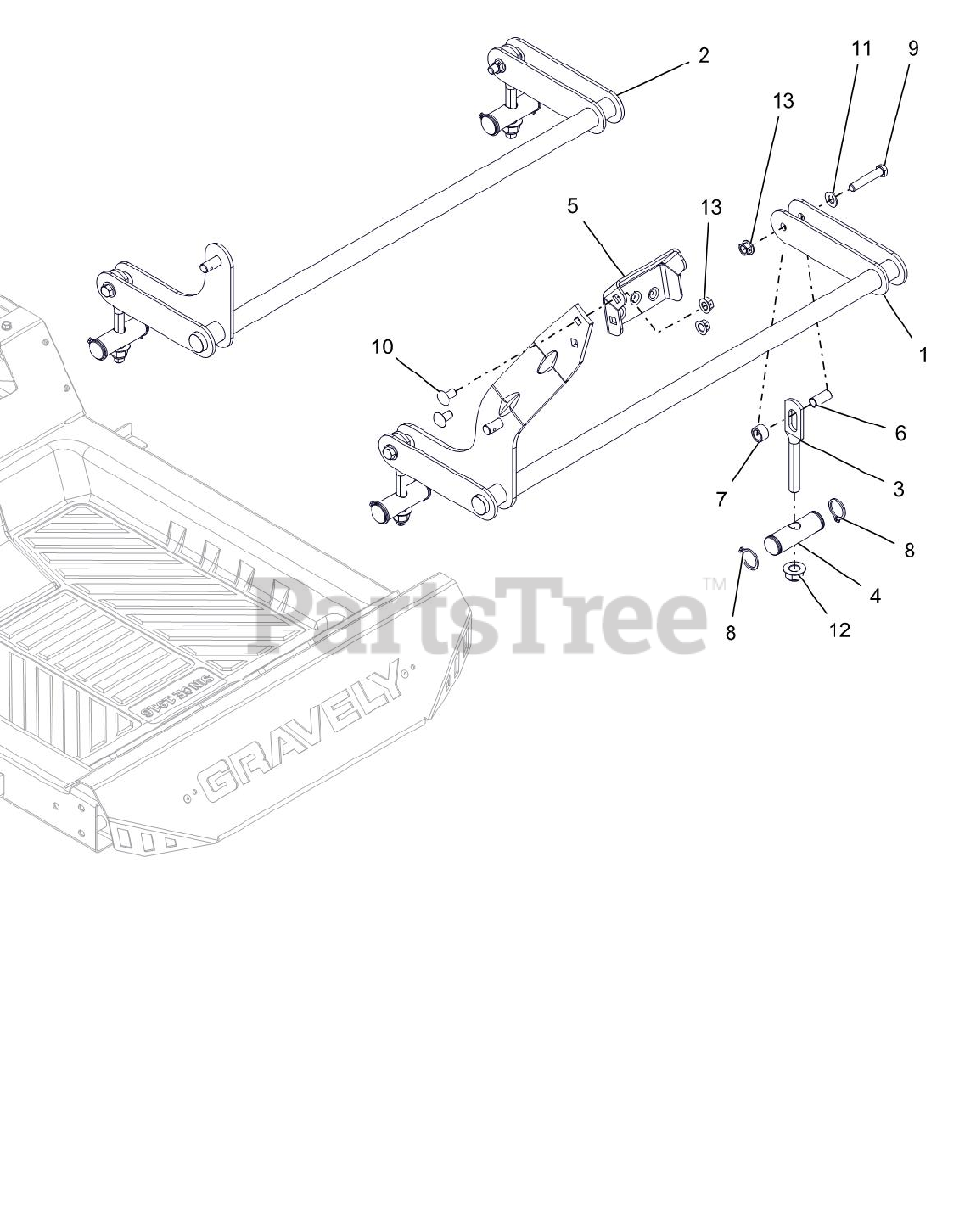

Deck Lift Parts Diagram

  • Title

1

Gravely 04778253

WLDMT, FRONT DECK LIFT PIVOT
(Superseded to 05246053)

$131.99

$

Usually ships in 4-12 days

0

2

Gravely 04778353

WLDMT, REAR DECK PIVOT
(Superseded to 05246153)

$

$

Not available

3

Gravely 04778400

LINK, DECK

$

$

Not available

4

Gravely 04812800

SHAFT, DECK LINK PIVOT

$33.99

$

Usually ships in 4-12 days

0

5

Gravely 04869253

PEDAL, DECK LIFT (BOLT ON)

$19.99

$

Usually ships in 4-12 days

0

6

Gravely 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

7

Gravely 05500107

BSHG-SLV .510X.751X.475

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

9

Gravely 05963100

BLT-HEX .38-16X2.00 GR8 YWZC
(Superseded to 05901810)

$2.99

$

In Stock, only 1 left!

0

10

Gravely 06200225

BLT,RHSN .38-16X.75 G5 BFP
(Superseded to 06200432)

$3.99

$

In Stock, only 1 left!

0

11

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0
