915176 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro, CARB (SN: 016000 - 019999) Idlers And Sheaves - 42 Inch Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro, CARB

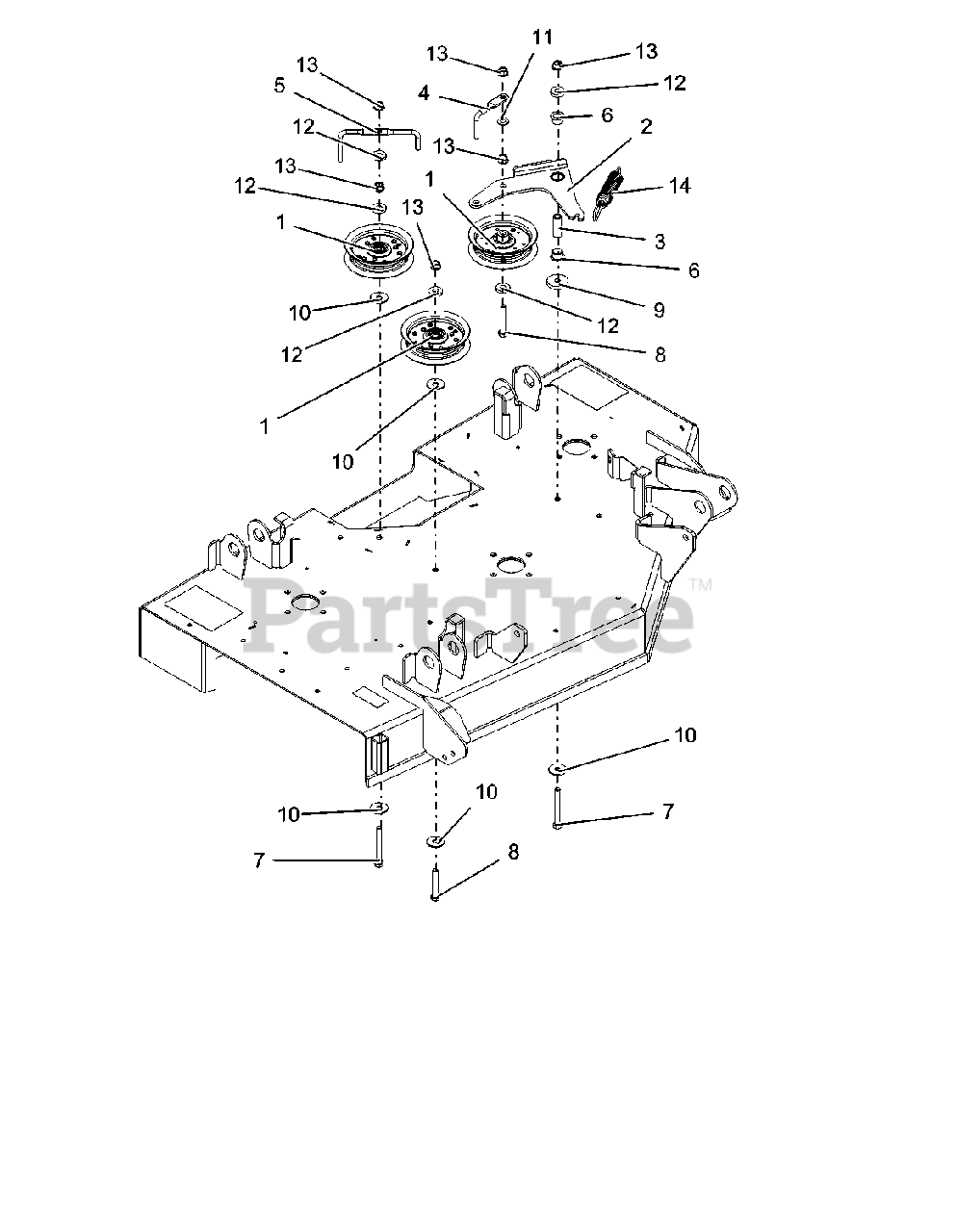

Idlers And Sheaves - 42 Inch Parts Diagram

  • Title

1

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

2

Gravely 04773353

WLDMT, IDLER ARM (RED)

$41.99

$

Usually ships in 4-12 days

0

3

Gravely 03763400

SPCR, .375IDX.625ODX1.66 PM

$3.99

$

In Stock, Qty 20+

0

4

Gravely 03828853

WIREFORM, BELT FINGER (RED)
(Superseded to 03828800)

$9.49

$

In Stock, only 1 left!

0

5

Gravely 03974153

FINGER, BELT (RED)
(Superseded to 03974100)

$

$

Not available

6

Gravely 05500907

BSHG, FLANGE .625 x .75 x .50 x 1.00

$5.99

$

In Stock, Qty 20+

0

7

Gravely 05958300

BLT-HEX .38-16X3.00 GR5 FTH YWZC
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

8

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

9

Gravely 06400006

WSHR-FL-STL .406X1.50X.245 YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 06400917

WSHR-FL-STL .406X1.25X.10 YWZC
(Superseded to 06401021)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZC
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 08320300

SPRG, EXTENSION

$17.99

$

In Stock, Qty 20+

0
