915176 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro, CARB (SN: 016000 - 019999) Deck, Belt, Blades And Spindles - 42 Inch Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro, CARB

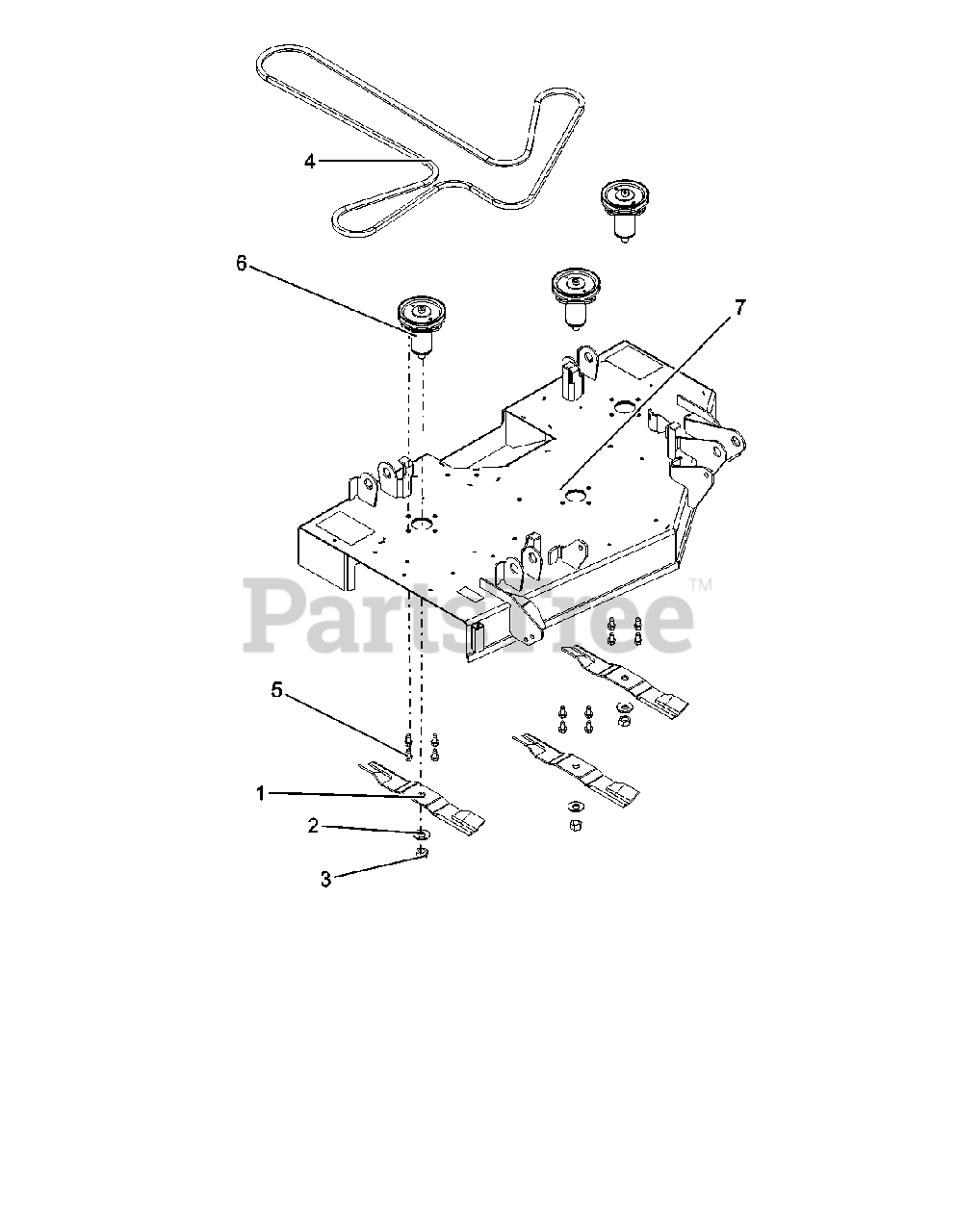

Deck, Belt, Blades And Spindles - 42 Inch Parts Diagram

  • Title

1

Gravely 04769800

BLADE, MOWER 15.00" LG

$25.99

$

In Stock, Qty 20+

0

2

Gravely 06445700

WSHR, BLVL-.63X1.625X.14

$4.99

$

In Stock, only 3 left!

0

3

Gravely 06500630

NUT-HEX .62-18 YWZC
(Superseded to 06500920)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 07200523

V-Belt, HA-WRAPPED CLUTCHING (NO RUBBER BLEED THRU)

$69.99

$

In Stock, Qty 20+

0

5

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 51527900

ASM, SPINDLE 4.75" DIA.
(Superseded to 51537000)

$182.99

$

In Stock, only 3 left!

0

7

Gravely 51528200

WLDMT, DECK 42" (RED)
(Superseded to 51533300)

$597.99

$

Usually ships in 4-12 days

0
