915176 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro, CARB (SN: 000101 - 015999) Fender Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro, CARB

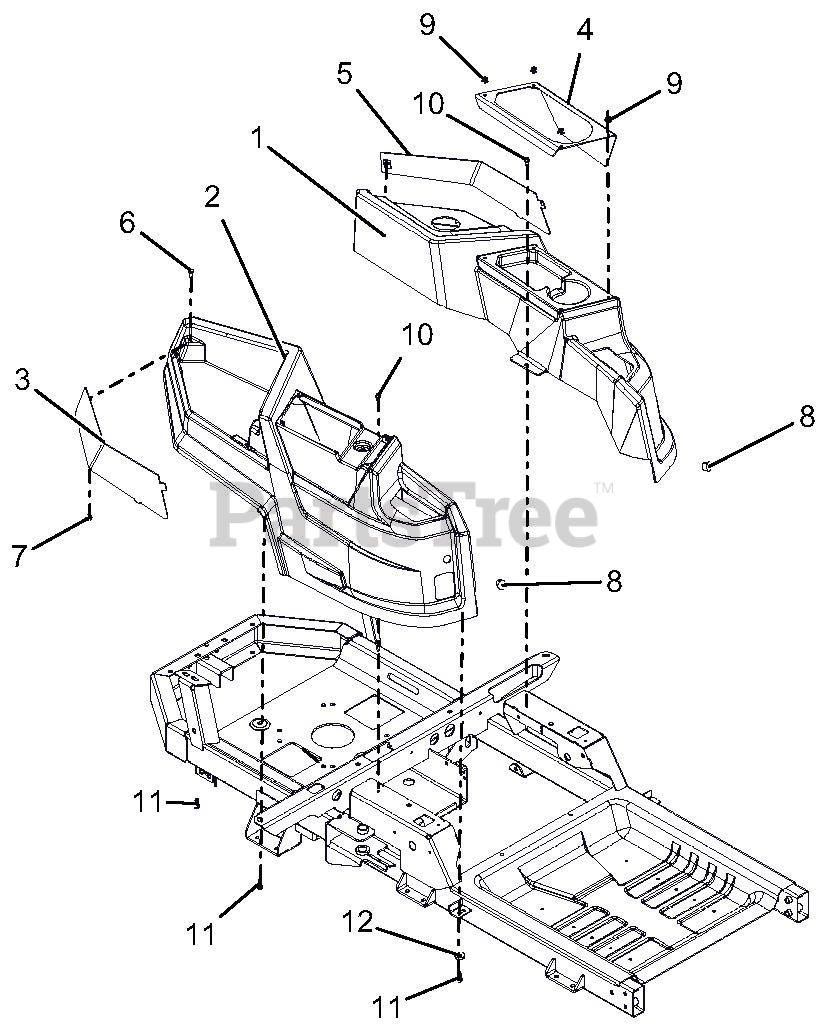

Fender Parts Diagram

  • Title
1

Gravely 04767100

FENDER, LH -ZOOM

$80.99

$

In Stock, only 1 left!

0

2

Gravely 04767200

FENDER, RH -ZOOM

$113.99

$

Usually ships in 4-12 days

0

3

Gravely 04782253

WLDMT, PANEL BLOCKOFF-RH

Note: (RED)

$42.99

$

Usually ships in 4-12 days

0

4

Gravely 04785153

PANEL, CONTROL /CUP-LH

$41.99

$

Usually ships in 4-12 days

0

5

Gravely 04785253

WLDMT, PANEL BLOCK OFF-LH

Note: RED

$

$

Not available

6

Gravely 05901529

BLT-HEX .25-20X.63 GR5 BLKZC

$1.49

$

Usually ships in 4-12 days

0

7

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 07500402

PLUG, HOLE .750-BLACK

$

$

Not available

9

Gravely 06830000

RVT-POP .195 PLASTIC

$2.49

$

In Stock, Qty 20+

0

10

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 07400119

SCR-HEX .312-14X.75 H/L

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZC
(Superseded to 06401108)

$2.49

$

In Stock, Qty 7

0
