915175 - Ariens Ikon-X 42" Zero-Turn Mower, 22hp Kohler Twin (SN: 000101 - 015999) Fuel System Parts Diagram

Ikon-X 42" Zero-Turn Mower, 22hp Kohler Twin

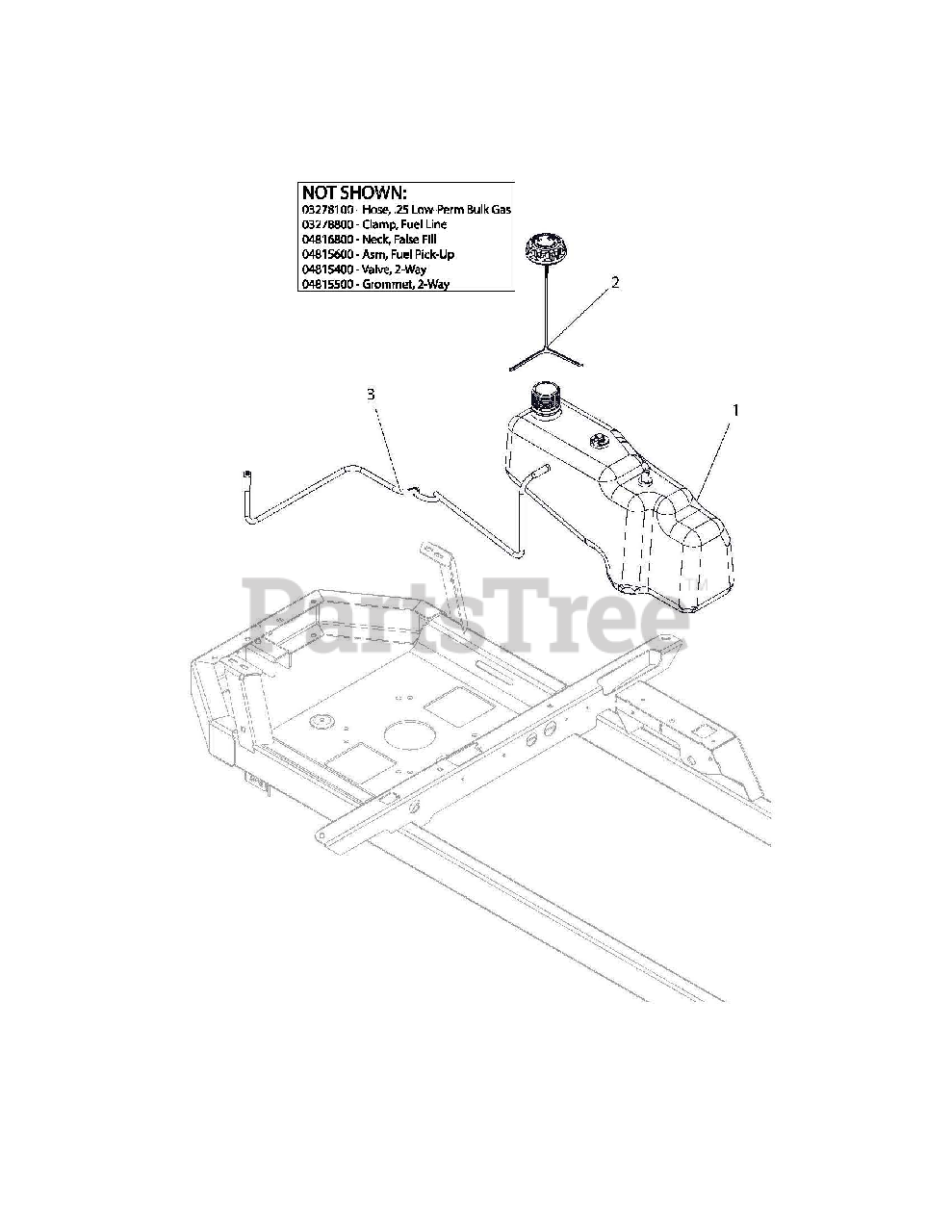

Fuel System Parts Diagram

  • Title
1

Ariens 04751200

ASM,TANK NON-PERM FUEL
(Superseded to 05244600)

$176.99

$

In Stock, only 1 left!

0

2

Ariens 04589200

CAP, FUEL VENT-IN 2.25" RATCH.
(Superseded to 09190200)

$18.99

$

In Stock, Qty 20+

0

3

Ariens 04827300

LINE, FUEL VENT KOHLER

$

$

Not available

4

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: NOT SHOWN

$1.49

$

In Stock, Qty 20+

0

5

Ariens 03278800

CLAMP, FUEL LINE

Note: NOT SHOWN

$1.49

$

In Stock, Qty 20+

0

6

Ariens 04816800

NECK, FALSE FILL ZOOM/ZT

Note: NOT SHOWN

$

$

Not available

7

Ariens 04815600

ASM, FUEL PICK-UP ZOOM/ZT 2015

Note: NOT SHOWN

$37.99

$

In Stock, only 1 left!

0

8

Ariens 04815400

VALVE, 2-WAY

Note: NOT SHOWN

$19.99

$

In Stock, Qty 8

0

9

Ariens 04815500

GROMMET, 2-WAY
(Superseded to 04082700)

Note: NOT SHOWN

$3.49

$

In Stock, Qty 11

0
