915175 - Ariens Ikon-X 42" Zero-Turn Mower, 22hp Kohler Twin (SN: 000101 - 015999) Engine Parts Diagram

Ikon-X 42" Zero-Turn Mower, 22hp Kohler Twin

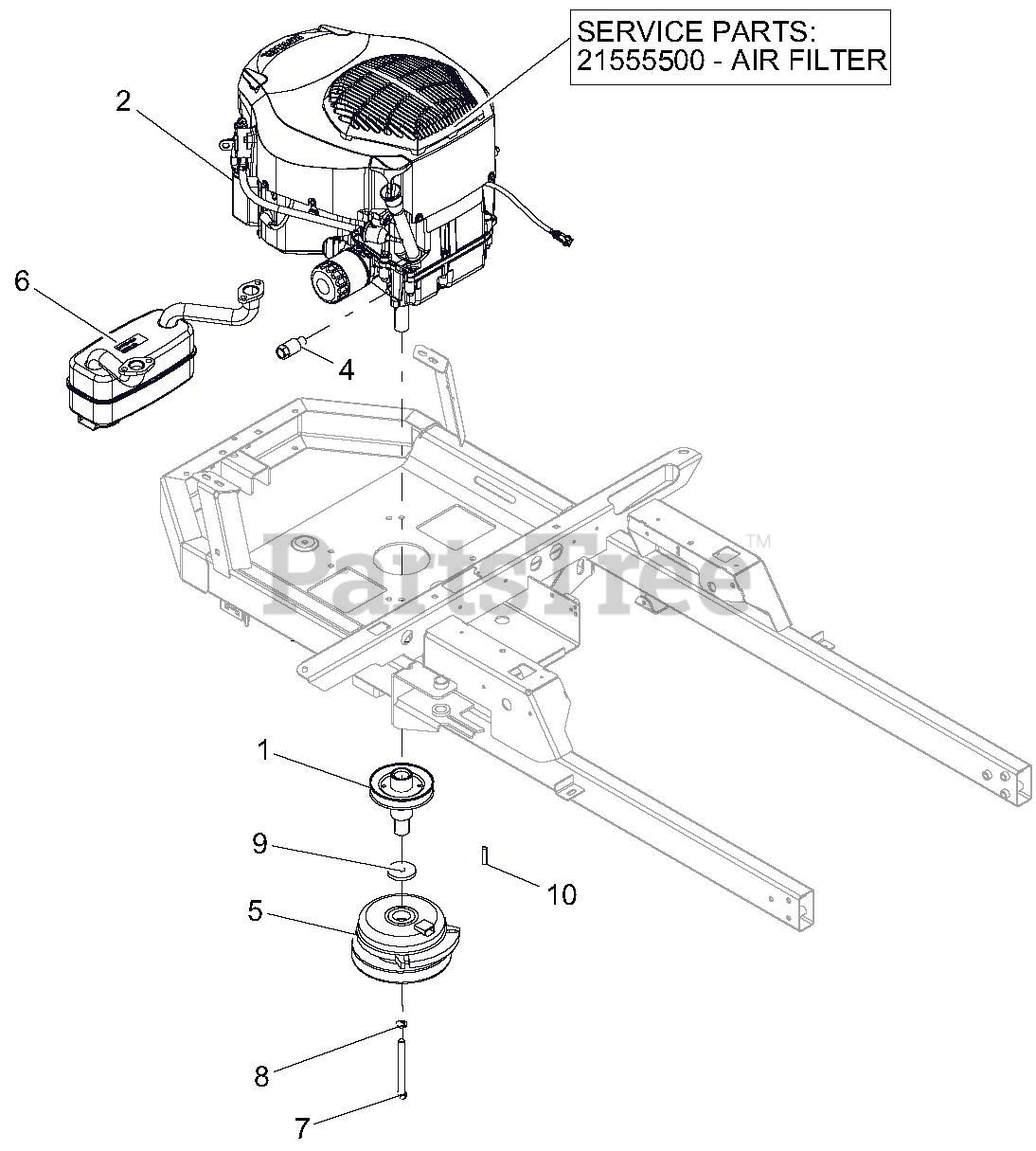

Engine Parts Diagram

  • Title
1

Ariens 07343500

WLDMT, DRIVE SHEAVE

$75.99

$

Usually ships in 4-12 days

0

2

Ariens 08201107

ENGINE, KOHLER 22HP TWIN

$

$

Not available

2

Ariens 21555500

AIR CLEANER, KOHLER

Note: SERVICE PART

$29.99

$

In Stock, only 1 left!

0

4

Ariens 03943600

DRAIN, OIL

$11.99

$

In Stock, only 3 left!

0

5

Ariens 04678300

CLUTCH,105FTLB MONOPOLE 6.83"

$258.99

$

In Stock, Qty 5

0

6

Ariens 04783600

MUFFLER, KOHLER TWIN

$134.99

$

Usually ships in 4-12 days

0

7

Ariens 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

$6.99

$

In Stock, Qty 7

0

8

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

9

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

10

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0
