915175 - Ariens Ikon-X 42" Zero-Turn Mower, 22hp Kohler Twin (SN: 000101 - 015999) Controls Parts Diagram

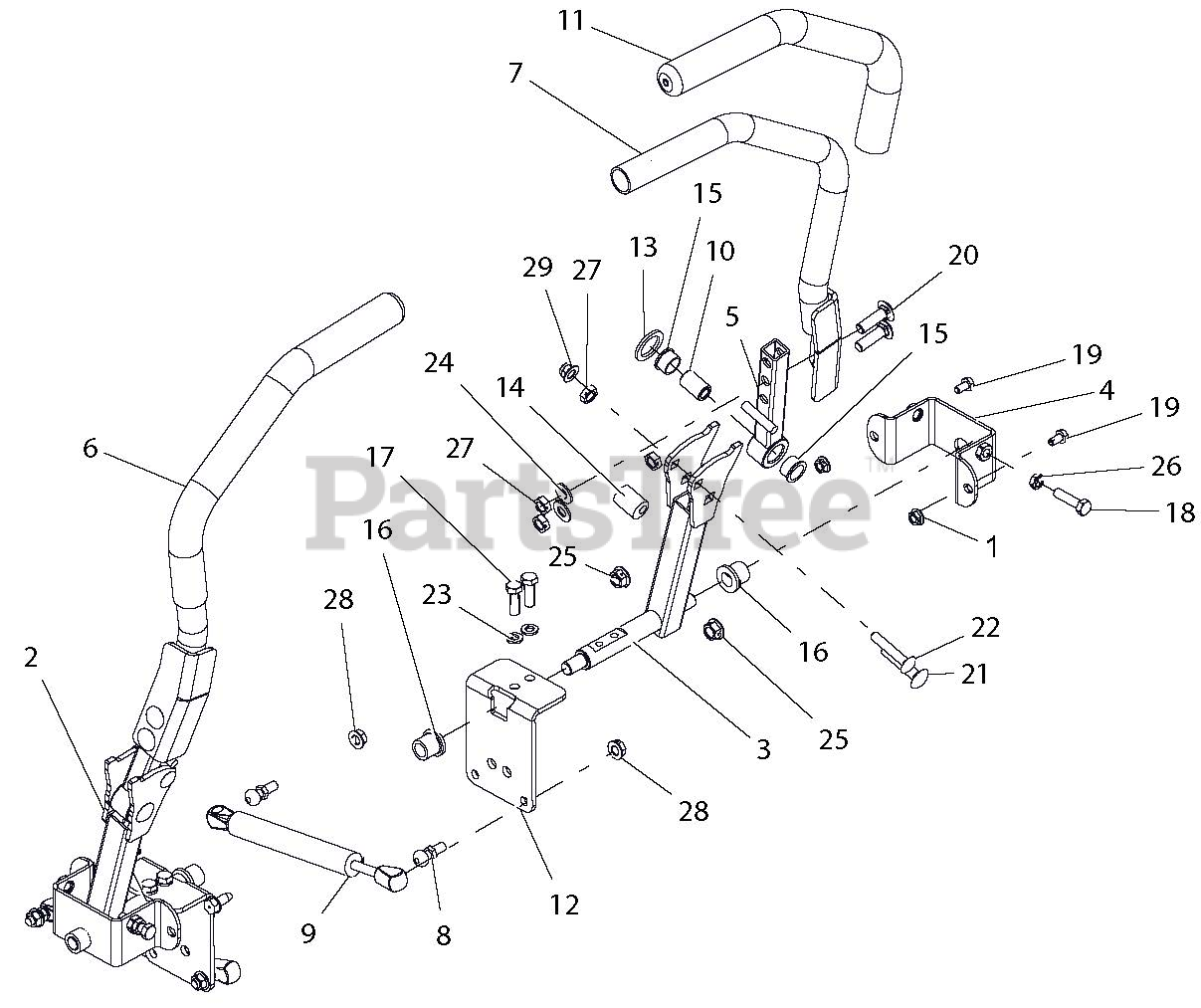

Ikon-X 42" Zero-Turn Mower, 22hp Kohler Twin

Controls Parts Diagram

  • Title

1

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 04767351

WLDMT, RT LOWER STEERING ARM

$116.99

$

Usually ships in 4-12 days

0

3

Ariens 04772751

WLDMT, LEFT LOWER STEERING ARM

$112.99

$

Usually ships in 4-12 days

0

4

Ariens 04776451

BRKT, STEERING SUPPORT
(Superseded to 04990951)

$38.99

$

Usually ships in 4-12 days

0

5

Ariens 04778651

WLDMT, UPPER CONTROL ARM

$129.99

$

Usually ships in 4-12 days

0

6

Ariens 04796051

WLDMT, STEERING HANDLE RH

$64.99

$

In Stock, only 1 left!

0

7

Ariens 04796151

WLDMT, STEERING HANDLE LH

$51.99

$

In Stock, only 1 left!

0

8

Ariens 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

9

Ariens 03943800

DAMPER, STABILUS

$40.99

$

In Stock, only 2 left!

0

10

Ariens 04193500

SPACER, .375X.625X.970 (PM)

$1.49

$

In Stock, only 2 left!

0

11

Ariens 04257400

GRIP, HANDLEBAR 15" FOAM

$15.99

$

Usually ships in 4-12 days

0

12

Ariens 04764100

BRKT, STEERING

$

$

Not available

13

Ariens 04832600

WASHER, FRICTION .875X1.25X.10

$5.99

$

In Stock, only 2 left!

0

14

Ariens 05500932

BSHG, ECCENTRIC .328X.750X.970

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05501017

BSHG-FLG, .625X.75X.450X.875

$7.99

$

In Stock, only 3 left!

0

16

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

17

Ariens 05901311

BLT-HEX .31-18X1.00 GR8 YWZC
(Superseded to 05901802)

$1.49

$

In Stock, Qty 6

0

18

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

19

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06200220

BLT,RHSSN .38-16X1.25 G5 BFP
(Superseded to 06200236)

$2.49

$

In Stock, Qty 20+

0

21

Ariens 06200221

BLT,RHSSN .38-16X1.75 G5 BFP

$5.99

$

Usually ships in 4-12 days

0

22

Ariens 06200222

BLT,RHSSN .31-18X1.75 G5 BFP

$2.49

$

Usually ships in 4-12 days

0

23

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0
