915174 (ZTX 52) - Gravely 52" Zero-Turn Mower, 25hp Kohler Twin Pro (SN: 020000 - 029999) Engine - Kohler Pro 25 Parts Diagram

52" Zero-Turn Mower, 25hp Kohler Twin Pro

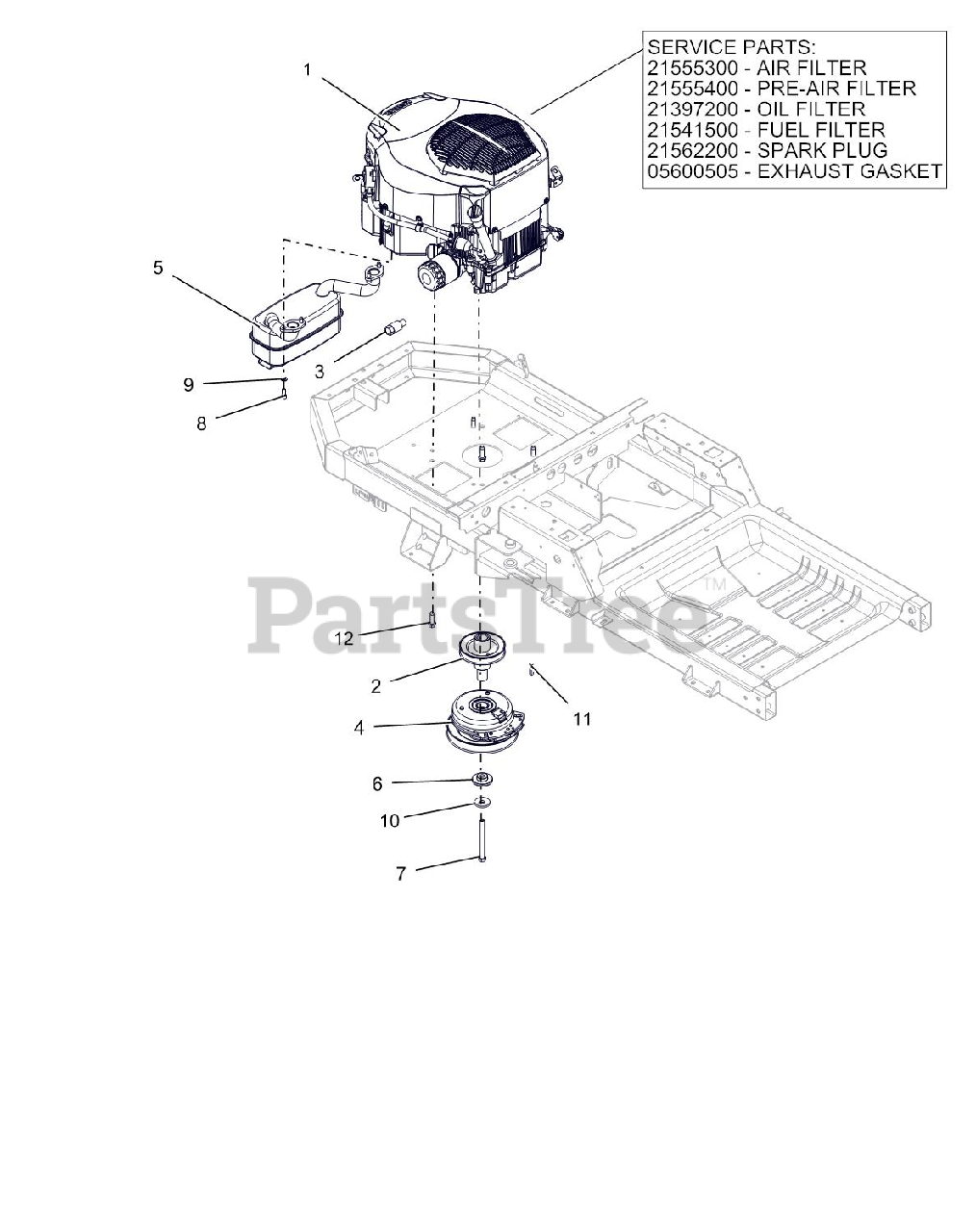

Engine - Kohler Pro 25 Parts Diagram

  • Title

1

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: SERVICE PART

$18.99

$

In Stock, only 4 left!

0

1

Gravely 21541500

FILTER, FUEL

Note: SERVICE PART

$8.99

$

In Stock, Qty 20+

0

1

Gravely 05600505

GASKET, MUFFLER COURAGE TWIN

Note: SERVICE PART

$9.99

$

Usually ships in 4-12 days

0

1

Gravely 21555300

AIR FILTER, KOHLER

Note: SERVICE PART

$26.99

$

In Stock, only 3 left!

0

1

Gravely 21555400

PRE CLEANER, KOHLER

Note: SERVICE PART

$6.99

$

Usually ships in 4-12 days

0

1

Gravely 21562200

PLUG, SPARK (RFI)
(Superseded to 21500009)

Note: SERVICE PART

$10.99

$

Usually ships in 4-12 days

0

1

Gravely 08201203

ENGINE,KOHLER TWIN 25 PRO W/SC

$

$

Not available

2

Gravely 07345100

WLDMT, DRIVE SHEAVE-X YWZC

$

$

Not available

3

Gravely 03943600

DRAIN, OIL

$11.99

$

In Stock, only 3 left!

0

4

Gravely 04678300

CLUTCH,105FTLB MONOPOLE 6.83"

$258.99

$

In Stock, Qty 6

0

5

Gravely 05088400

MUFFLER - KOHLER
(Superseded to 05113700)

$82.99

$

In Stock, only 1 left!

0

6

Gravely 05501206

BSHG-FLG .469X1.06X.574X2.0

$19.99

$

In Stock, only 1 left!

0

7

Gravely 05901707

BLT-HEX.438-20X4.5GR8YZ NYTORQ
(Superseded to 05901820)

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 1 left!

0

11

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

12

Gravely 07414700

SCR-TAP .38-16X1.25 HWH TR YZ
(Superseded to 07400128)

$2.99

$

In Stock, only 3 left!

0
