915174 (ZTX 52) - Gravely 52" Zero-Turn Mower, 25hp Kohler Twin Pro (SN: 016000 - 019999) Engine - Kohler Pro 25 Parts Diagram

52" Zero-Turn Mower, 25hp Kohler Twin Pro

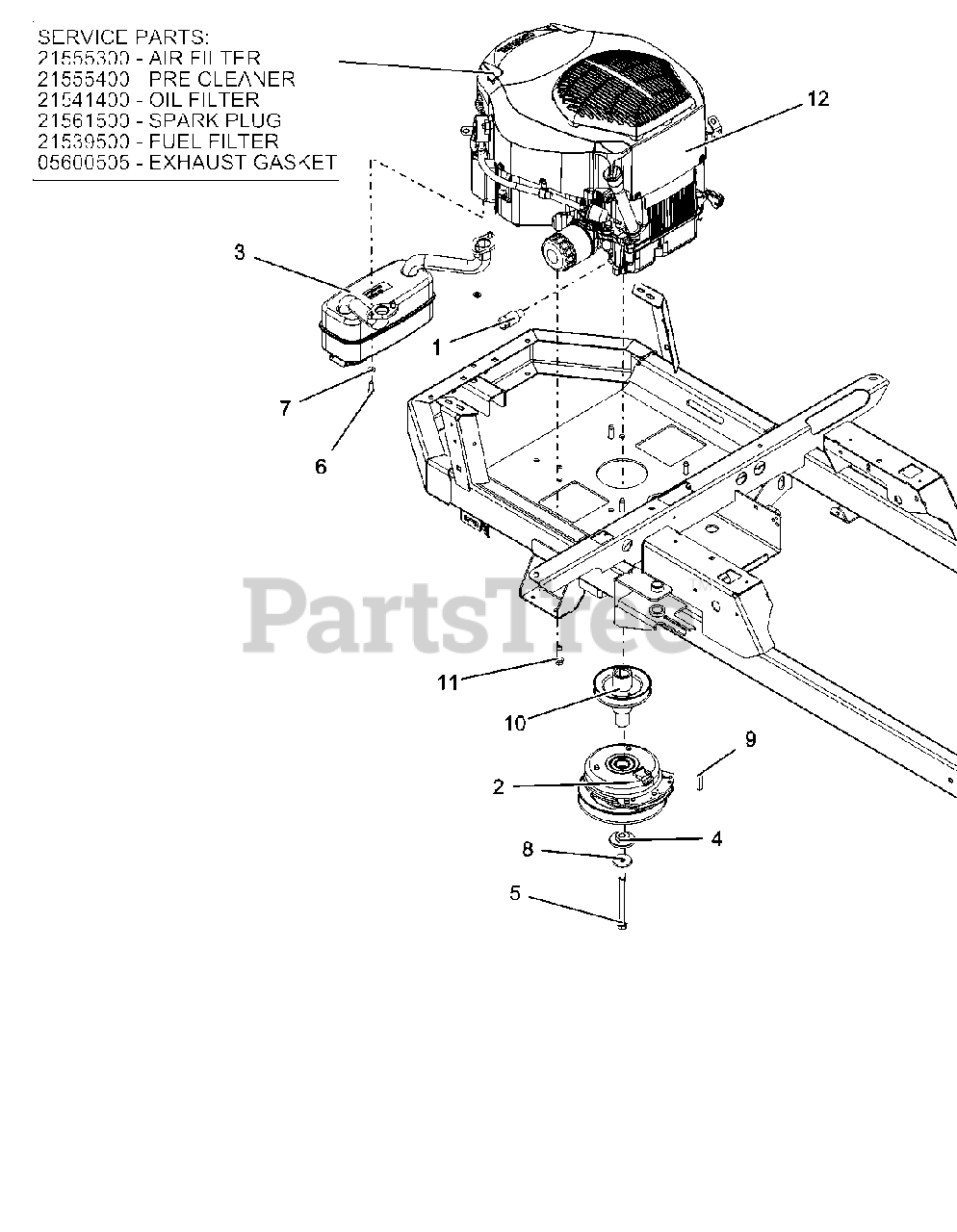

Engine - Kohler Pro 25 Parts Diagram

  • Title

1

Gravely 03943600

DRAIN, OIL

$11.99

$

In Stock, only 3 left!

0

2

Gravely 04678300

CLUTCH, ELEC 105 FT LB MONOPOLE 6.83"

$258.99

$

In Stock, Qty 6

0

3

Gravely 04783600

MUFFLER, KOHLER

$134.99

$

Usually ships in 4-12 days

0

4

Gravely 05501206

BSHG, -FLG .469 x 1.06 x .574 x 2.0

$19.99

$

In Stock, only 1 left!

0

5

Gravely 05901707

BLT-HEX .44-20X4.50 GR8 YWZC NYTORQ
(Superseded to 05901820)

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 05933100

SCR, CAP SOCKET HEAD
(Superseded to 05901827)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06400936

WSHR, 7/16" SPRING DISC

$11.99

$

In Stock, only 1 left!

0

9

Gravely 06603400

KEY-SQ .250X.250X1.250

$3.99

$

In Stock, Qty 11

0

10

Gravely 07345100

WLDMT, DRIVE SHEAVE X (2016)

$

$

Not available

11

Gravely 07414700

SCR-TAP .38-16X1.25 HWH TR YZ
(Superseded to 07400128)

$2.99

$

In Stock, only 3 left!

0

12

Gravely 08201110

ENGINE, KOHLER PRO25 W/SC

$

$

Not available

12

Gravely 21555300

AIR FILTER

Note: SERVICE PART

$26.99

$

In Stock, only 3 left!

0

12

Gravely 21555400

PRE CLEANER

Note: SERVICE PART

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 21541400

OIL FILTER
(Superseded to 21397200)

Note: SERVICE PART

$18.99

$

In Stock, only 4 left!

0

12

Gravely 21561500

SPARK PLUG

Note: SERVICE PART

$

$

Not available

12

Gravely 21539500

FUEL FILTER

Note: SERVICE PART

$12.99

$

In Stock, Qty 20+

0

12

Gravely 05600505

EXHAUST GASKET

Note: SERVICE PART

$9.99

$

Usually ships in 4-12 days

0
