915174 (ZTX 52) - Gravely 52" Zero-Turn Mower, 25hp Kohler Twin Pro (SN: 000101 - 015999) Idlers And Sheaves - 52 Inch Parts Diagram

52" Zero-Turn Mower, 25hp Kohler Twin Pro

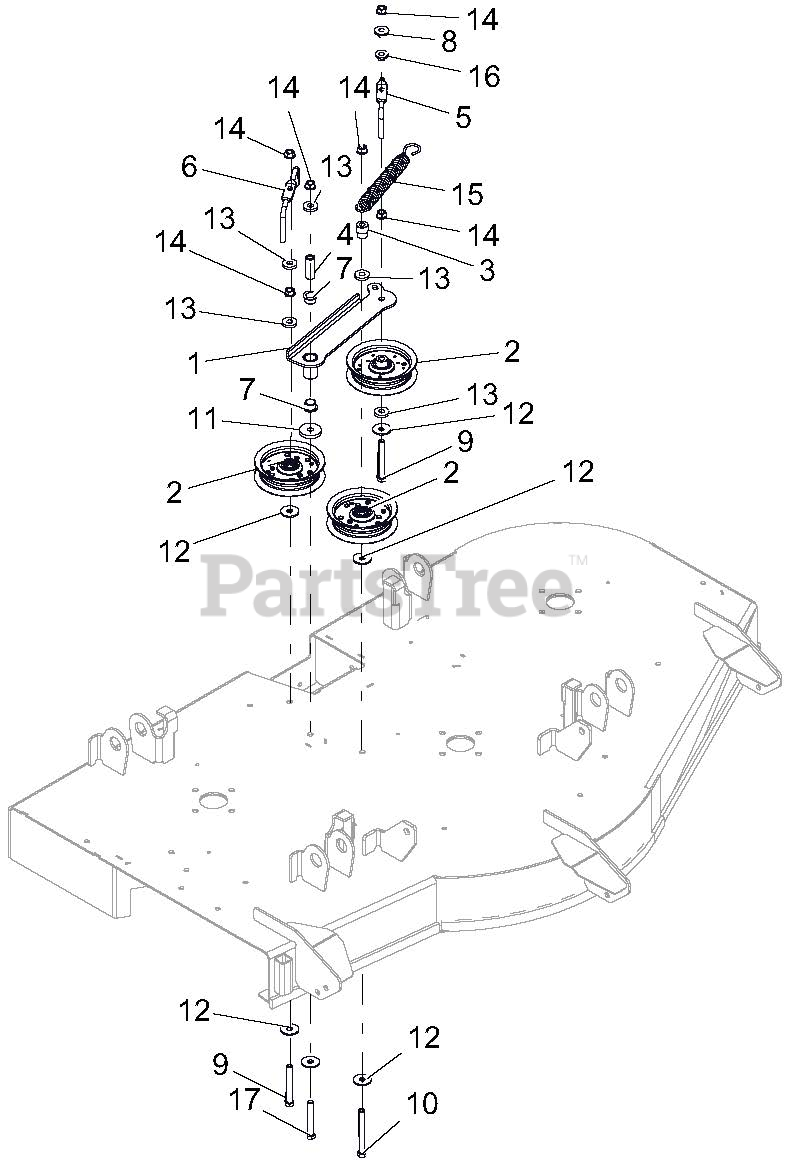

Idlers And Sheaves - 52 Inch Parts Diagram

  • Title

1

Gravely 04795653

WLDMT, IDLER - 52" IDLER ARM

$77.99

$

In Stock, only 1 left!

0

2

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

3

Gravely 00679300

BUSHING, IDLER

$3.49

$

In Stock, only 2 left!

0

4

Gravely 03763400

SPCR, .375IDX.625ODX1.66 PM

$3.99

$

In Stock, Qty 20+

0

5

Gravely 03856800

WIREFORM, BELT FINGER

$6.99

$

In Stock, only 1 left!

0

6

Gravely 03974100

FINGER, BELT

$

$

Not available

7

Gravely 05500907

BSHG, FLANGE .625 x .75 x .50 x 1.00

$5.99

$

In Stock, Qty 20+

0

8

Gravely 05501028

BSHG-FLG .385X.500X.8751X.3

$21.99

$

Usually ships in 4-12 days

0

9

Gravely 05958300

BLT-HEX .38-16X3.00 GR5 FTH YWZC
(Superseded to 05901815)

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 05960900

BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

11

Gravely 06400006

WSHR-FL-STL .406X1.50X.245 YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 06400917

WSHR-FL-STL .406X1.25X.10 YWZC
(Superseded to 06401021)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZC
(Superseded to 06401108)

$2.49

$

In Stock, Qty 7

0

14

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 08320300

SPRG, EXTENSION

$17.99

$

In Stock, Qty 20+

0

16

Gravely 05500435

BSHG, FLG .385 X .500 X .875 X .406

$2.49

$

In Stock, Qty 20+

0

17

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0
