915174 (ZTX 52) - Gravely 52" Zero-Turn Mower, 25hp Kohler Twin Pro (SN: 000101 - 015999) Deck Lift Parts Diagram

52" Zero-Turn Mower, 25hp Kohler Twin Pro

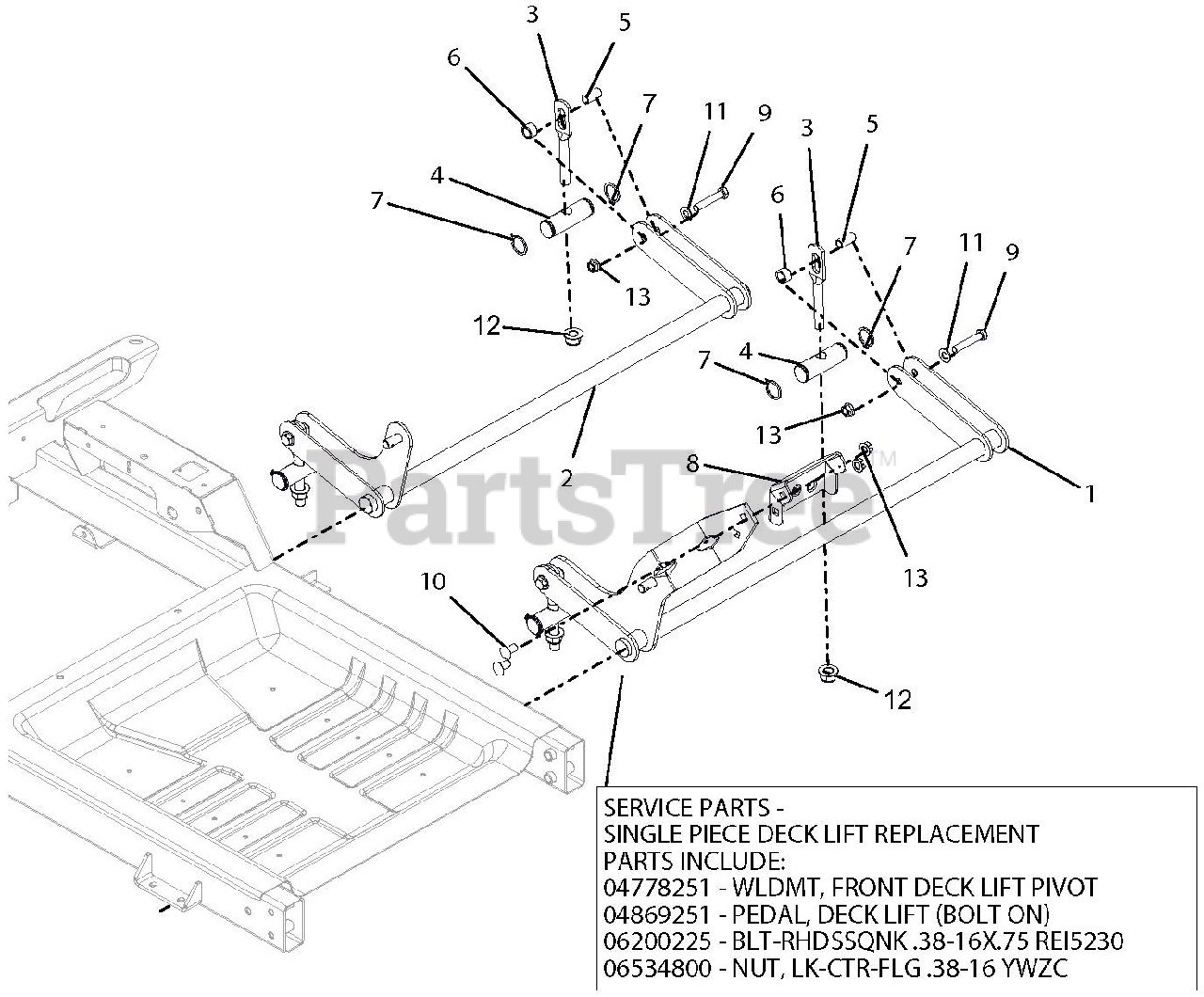

Deck Lift Parts Diagram

  • Title

1

Gravely 04778251

WLDMT, FRONT DECK LIFT PIVOT
(Superseded to 05246051)

$131.99

$

Usually ships in 4-12 days

0

2

Gravely 04778351

WLDMT, REAR DECK LIFT PIVOT

$123.99

$

Usually ships in 4-12 days

0

3

Gravely 04778400

LINK, DECK

$

$

Not available

4

Gravely 04812800

SHAFT, DECK LINK PIVOT

$33.99

$

Usually ships in 4-12 days

0

5

Gravely 05500106

BSHG, SLV .385 X .500 X 1.045

$1.99

$

In Stock, Qty 20+

0

6

Gravely 05500107

BSHG, SLV .510 X .751 X .475

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

8

Gravely 04869251

PEDAL, DECK LIFT (BOLT ON)-BLACK

$18.99

$

Usually ships in 4-12 days

0

9

Gravely 05963100

BLT-HEX .38-16X2.00 GR8 YWZC
(Superseded to 05901810)

$2.99

$

In Stock, only 1 left!

0

10

Gravely 06200225

BLT-RHDSSQNK .38-16X.75 RIE5230
(Superseded to 06200432)

$3.99

$

In Stock, only 1 left!

0

11

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06534800

NUT, LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0
