915172 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro (SN: 040000 & Above) Engine - Kohler Pro 24 Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro

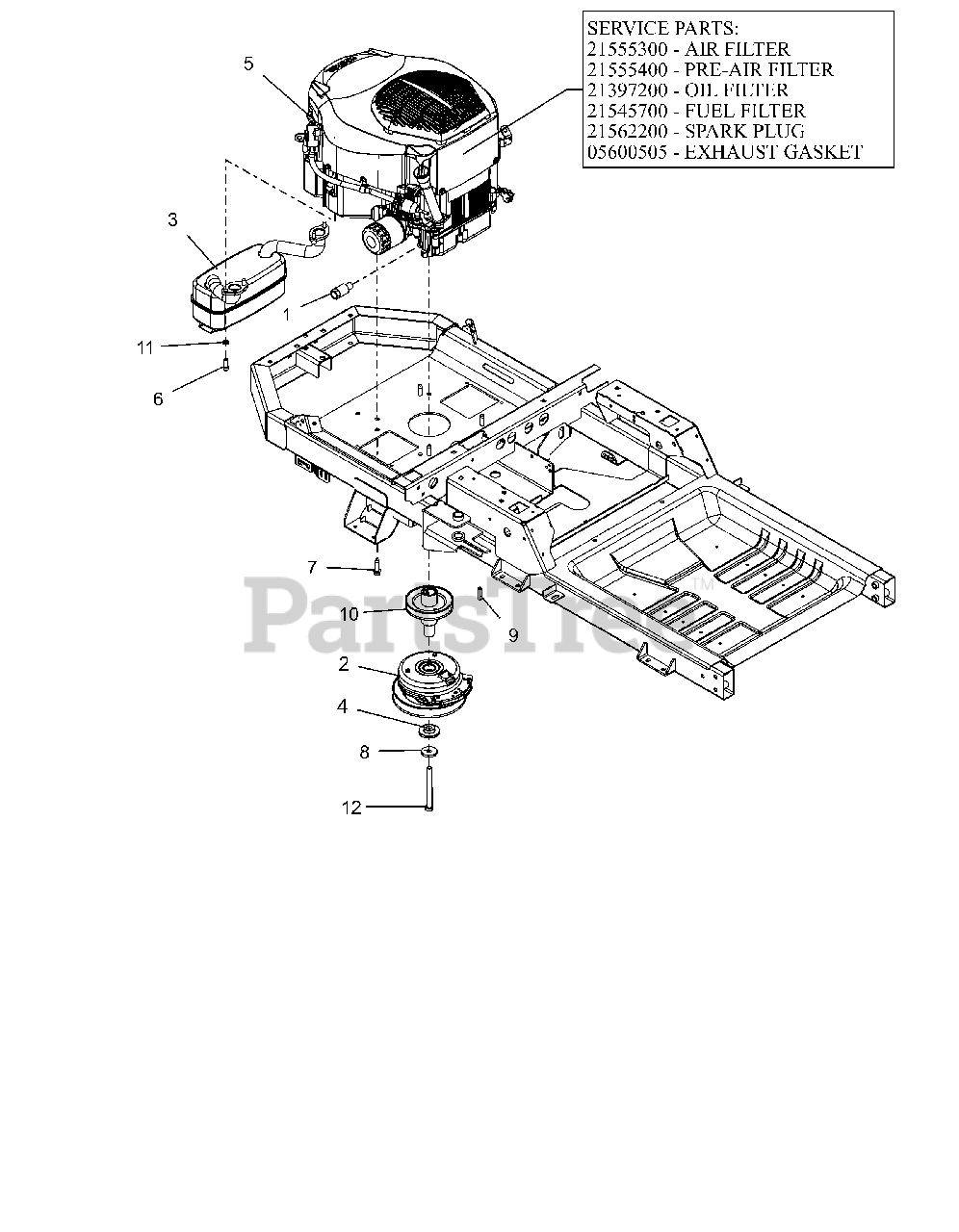

Engine - Kohler Pro 24 Parts Diagram

  • Title

1

Gravely 03943600

DRAIN, OIL

$11.99

$

In Stock, only 2 left!

0

2

Gravely 04678300

CLUTCH,105FTLB MONOPOLE 6.83"

$258.99

$

In Stock, only 4 left!

0

3

Gravely 05088400

MUFFLER - KOHLER
(Superseded to 05113700)

$82.99

$

In Stock, only 1 left!

0

4

Gravely 05501206

BSHG-FLG .469X1.06X.574X2.0

$19.99

$

In Stock, only 1 left!

0

5

Gravely 08201202

ENGINE-KOHLER PRO 24HP W/SC

$

$

Not available

5

Gravely 21555300

AIR FILTER, KOHLER

Note: SERVICE PART

$26.99

$

In Stock, only 2 left!

0

5

Gravely 21555400

PRE CLEANER, KOHLER

Note: SERVICE PART

$6.99

$

In Stock, Qty 6

0

5

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: SERVICE PART

$18.99

$

In Stock, only 1 left!

0

5

Gravely 21545700

FILTER-FUEL KOHLER COURAGE PRO
(Superseded to 21539500)

Note: SERVICE PART

$12.99

$

In Stock, Qty 20+

0

5

Gravely 21562200

PLUG, SPARK (RFI)
(Superseded to 21500009)

Note: SERVICE PART

$10.99

$

Usually ships in 4-12 days

0

5

Gravely 05600505

GASKET, MUFFLER KOHLER TWIN

Note: SERVICE PART

$9.99

$

Usually ships in 4-12 days

0

6

Gravely 05901839

SCR, SKH .312-18X.875 GR8 ZCC

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 07400128

SCR,TAP .375-16X1.25HWH TR ZCC

$2.99

$

In Stock, only 3 left!

0

8

Gravely 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 1 left!

0

9

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

10

Gravely 07345100

WLDMT, DRIVE SHEAVE-X

$

$

Not available

11

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05901820

BLT, HEX .44-20X4.50 G8 ZCC NT

$5.99

$

Usually ships in 4-12 days

0
