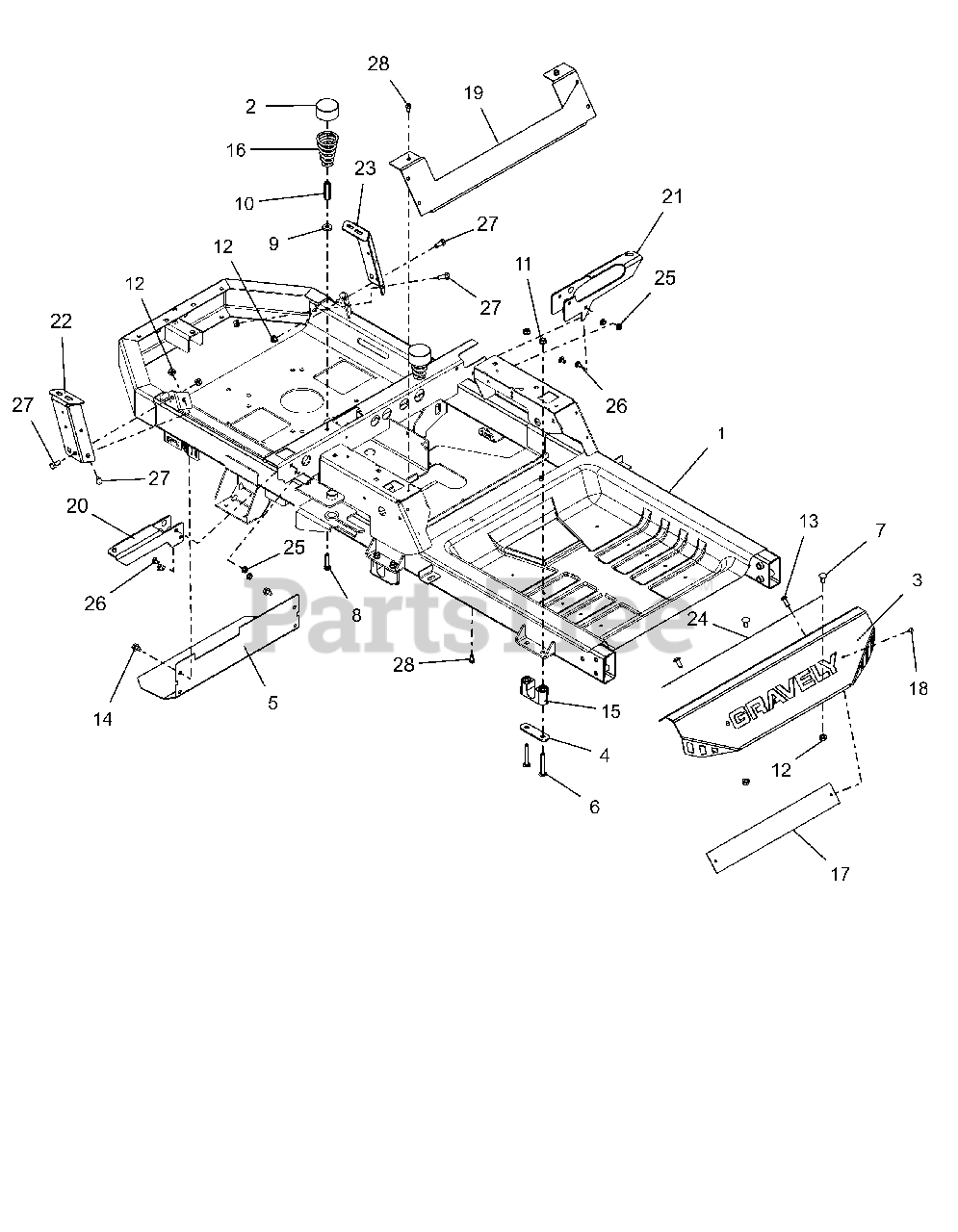

915172 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro (SN: 035000 - 039999) Frame Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro

Frame Parts Diagram

  • Title
1

Gravely 51531700

KIT, ZT-X/XL FRAME SERVICE

$813.99

$

Usually ships in 4-12 days

0

2

$2.99

$

In Stock, Qty 20+

0

3

Gravely 51527600

KIT, FOOTPLATE W/DECAL-ZTX

$101.99

$

Usually ships in 4-12 days

0

4

Gravely 04766551

PLATE, BEARING SUPPORT

$7.99

$

In Stock, only 1 left!

0

5

Gravely 04807951

HEAT, SHIELD

$30.99

$

In Stock, only 1 left!

0

6

Gravely 06200226

BLT-RDHDSQSHNK .31-18X2.25 YWZ
(Superseded to 06200311)

$3.99

$

In Stock, only 2 left!

0

7

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06401103

WSHR, FLT .328X.870X.179 ZCC

$3.49

$

In Stock, only 1 left!

0

10

Gravely 06500015

NUT, COUPLING 5/16-18 X 1 3/4
(Superseded to 06500927)

$3.99

$

In Stock, only 1 left!

0

11

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07400120

SCR-RDHDSKTAP .31-18 X .75
(Superseded to 07400134)

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07500327

BSHG, DECK LIFT PIVOT

$11.99

$

Usually ships in 4-12 days

0

16

Gravely 08300021

SPRING, SEAT

$20.99

$

Usually ships in 4-12 days

0

17

Gravely 04718451

PLATE, BACK FOOT-REST XL

$8.49

$

Usually ships in 4-12 days

0

18

Gravely 06800120

RIVET, .1875 AL/AL .126-.250

$

$

Not available

19

Gravely 04772353

PLATE, SEAT KICK

$

$

Not available

20

Gravely 05077153

BRKT,CROSS EXTENSION - LH

$28.99

$

Usually ships in 4-12 days

0

21

Gravely 05077253

BRKT,CROSS EXTENSTION - RH

$

$

Not available

22

Gravely 05077353

MOUNT,FENDER-RH EXTENSION

$37.99

$

Usually ships in 4-12 days

0

23

Gravely 05077453

MOUNT,FENDER-LH EXTENSION

$33.99

$

Usually ships in 4-12 days

0

24

Gravely 05112300

GRIP, FOOT PLATE

$17.99

$

Usually ships in 4-12 days

0

25

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06200305

BLT, RHSSN.25-20X.500 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

27

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

28

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
