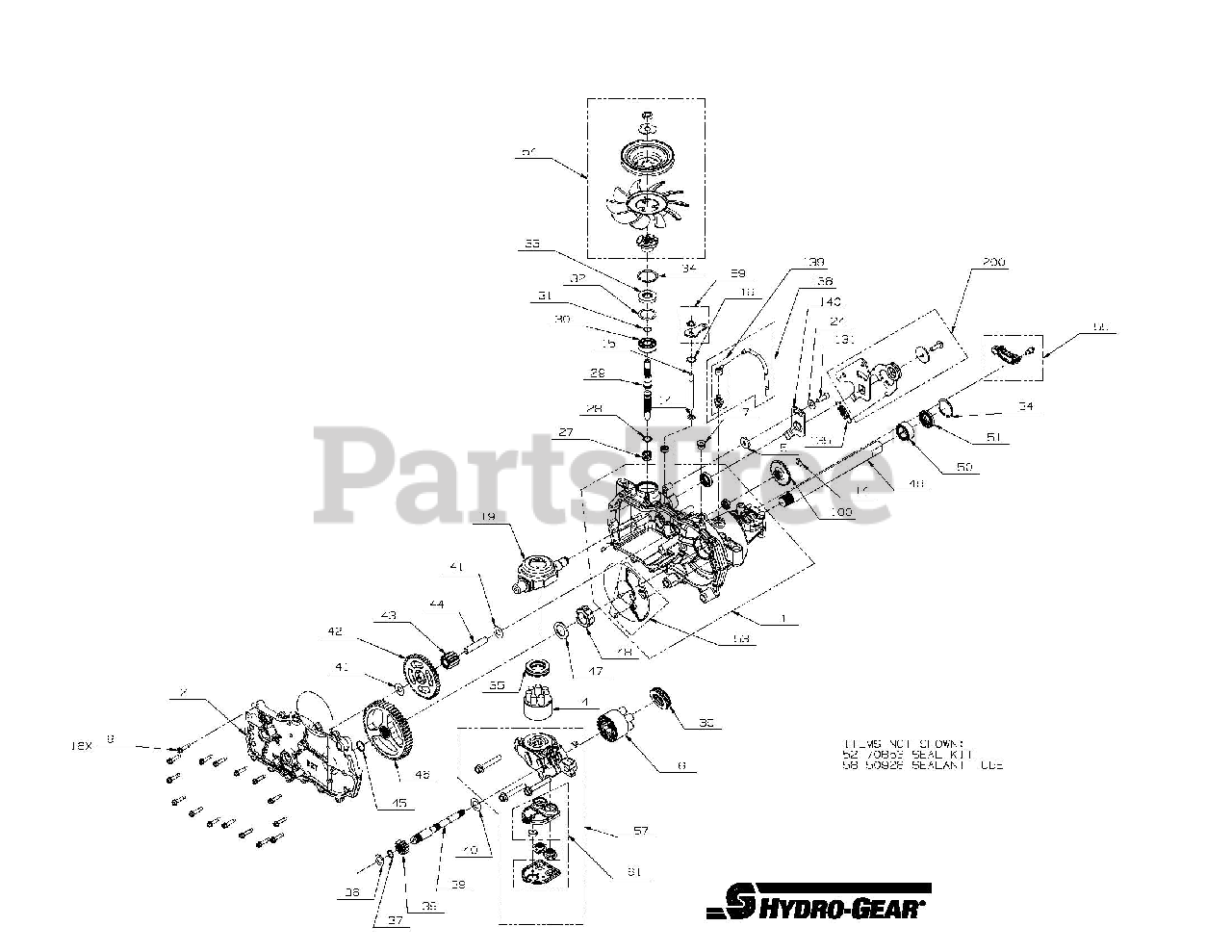

915172 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro (SN: 030000 - 034999) Transmission, RH - 04794800 Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro

Transmission, RH - 04794800 Parts Diagram

  • Title

1

Gravely 21543947

ASSEMBLY, MAIN HOUSING

Note: Hydro-Gear p/n 71098

$399.99

$

Usually ships in 4-12 days

0

2

Gravely 21543989

ASSEMBLY, SIDE HOUSING

Note: Hydro-Gear p/n 70983R

$168.99

$

Usually ships in 4-12 days

0

4

Gravely 21543921

ASSY, BLOCK 7 PISTON

Note: Hydro-Gear p/n 70723

$142.99

$

Usually ships in 4-12 days

0

5

Gravely 21543870

SPACER

Note: Hydro-Gear p/n 54315

$

$

Not available

6

Gravely 21543889

KIT, 10 CC BLOCK

Note: Hydro-Gear p/n 70331

$101.99

$

Usually ships in 4-12 days

0

7

Gravely N/A

Note: Hydro-Gear p/n 9005110-5600

$

$

Currently unavailable

9

Gravely 27105900

SCREW,HEX WASHER 1/4-20X1.125

Note: Hydro-Gear p/n 53246

$2.49

$

In Stock, only 3 left!

0

14

Gravely 08622500

RING. RETAINING

Note: Hydro-Gear p/n 51628

$4.49

$

In Stock, Qty 15

0

15

Gravely 21543844

ROD, BYPASS

Note: Hydro-Gear p/n 51625

$

$

Not available

16

Gravely 21543846

RING, RET .750

Note: Hydro-Gear p/n 51627

$

$

Not available

19

Gravely 21543783

TRUNNION, SWASHPLATE

Note: Hydro-Gear p/n 51048

$70.99

$

Usually ships in 4-12 days

0

24

Gravely 08611200

WASHER

Note: Hydro-Gear p/n 44130

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 08621500

SPRING. BLOCK

Note: Hydro-Gear p/n 2003014

$1.99

$

In Stock, Qty 6

0

28

Gravely 08609400

WASHER. THRUST .59 X .79 X .04

Note: Hydro-Gear p/n 2003017

$1.99

$

In Stock, only 1 left!

0

29

Gravely 21543785

SHAFT, INPUT

Note: Hydro-Gear p/n 51062

$96.99

$

Usually ships in 4-12 days

0

30

Gravely 21543738

BRG, BALL 17X40X12

Note: Hydro-Gear p/n 50315

$19.99

$

Usually ships in 4-12 days

0

31

Gravely 21543960

RING, RET WIRE .561 ID

Note: Hydro-Gear p/n 2000022

$1.99

$

Usually ships in 4-12 days

0

32

Gravely 21543773

WASHER 1.23X1.56X.04

Note: Hydro-Gear p/n 50951

$5.99

$

In Stock, only 2 left!

0

33

Gravely 21543816

SEAL, LIP 17X40X7

Note: Hydro-Gear p/n 51161

$14.99

$

Usually ships in 4-12 days

0

34

Gravely 21543741

RING, RET 1.56 INT

Note: Hydro-Gear p/n 50329

$6.99

$

Usually ships in 4-12 days

0

35

Gravely 08609100

BEARING. THRUST 30 X 52 X 13

Note: Hydro-Gear p/n 50551

$17.99

$

Usually ships in 4-12 days

0

36

Gravely 21543708

WASHER .63X1.0X.05

Note: Hydro-Gear p/n 44371

$

$

Not available

37

Gravely 21543704

RING, RET 62 EXT

Note: Hydro-Gear p/n 44145

$

$

Not available

38

Gravely 21543807

GEAR, 13T PINNION

Note: Hydro-Gear p/n 51130

$5.49

$

Usually ships in 4-12 days

0

39

Gravely 21543859

SHAFT, MOTOR

Note: Hydro-Gear p/n 51845

$

$

Not available

40

Gravely 21543788

WASHER .71 X 1.16 X .04

Note: Hydro-Gear p/n 51069

$

$

Not available

41

Gravely 21543724

WASHER .5X1.0X.032

Note: Hydro-Gear p/n 50132

$

$

Not available

42

Gravely 21543806

GEAR, 10T/48T

Note: Hydro-Gear p/n 51129

$44.99

$

In Stock, only 1 left!

0

43

Gravely 21543781

GEAR, 10T JACKSHAFT

Note: Hydro-Gear p/n 51043

$

$

Not available

44

Gravely 21543793

JACK SHAFT (PIN)

Note: Hydro-Gear p/n 51083

$

$

Not available

45

Gravely N/A

Note: Hydro-Gear p/n 52531

$

$

Currently unavailable

46

Gravely N/A

Note: Hydro-Gear p/n 52541

$

$

Currently unavailable

47

Gravely N/A

Note: Hydro-Gear p/n 52532

$

$

Currently unavailable

48

Gravely N/A

Note: Hydro-Gear p/n 52542

$

$

Currently unavailable

49

Gravely N/A

Note: Hydro-Gear p/n 52545

$

$

Currently unavailable

50

Gravely N/A

Note: Hydro-Gear p/n 51517

$

$

Currently unavailable

51

Gravely N/A

Note: Hydro-Gear p/n 51518

$

$

Currently unavailable

52

Gravely 21543935

KIT, SEALS AND RETAINING

Note: Hydro-Gear p/n 70835

$80.99

$

In Stock, only 1 left!

0

53

Gravely 21543988

KIT, EXPANSION PLATE RH

Note: Hydro-Gear p/n 70868R

$

$

Not available

54

Gravely 21543736

FAN PULLEY KIT 4.5X1.625

Note: Hydro-Gear p/n 72134

$80.99

$

Usually ships in 4-12 days

0

55

Gravely 00362500

BRAKE ARM-LH, EZT
(Superseded to 51514100)

Note: Hydro-Gear p/n 71069

$58.99

$

In Stock, Qty 10

0

57

Gravely N/A

Note: Hydro-Gear p/n 71529

$

$

Currently unavailable

58

Gravely 21543771

SEALANT TUBE 10.1OZ.

Note: Hydro-Gear p/n 50928

$116.99

$

In Stock, only 1 left!

0

59

Gravely 21543937

KIT, BYPASS ARM

Note: Hydro-Gear p/n 70891

$11.99

$

Usually ships in 4-12 days

0

61

Gravely 21543958

KIT, FILTER

Note: Hydro-Gear p/n 71497

$19.99

$

Usually ships in 4-12 days

0

100

Gravely 21543851

DISC, COG BRAKE

Note: Hydro-Gear p/n 51635

$21.99

$

In Stock, only 1 left!

0

131

Gravely 21543843

SHCS 5/16-24X1 PATCH

Note: Hydro-Gear p/n 51616

$

$

Not available

135

Gravely 21544001

SPRING, HYDROGEAR P/N 51833

Note: Hydro-Gear p/n 51833

$

$

Not available

138

Gravely N/A

Note: Hydro-Gear p/n 71510

$

$

Currently unavailable

139

Gravely N/A

Note: Hydro-Gear p/n 71524

$

$

Currently unavailable

140

Gravely 21543866

ARM, NEUTRAL RIGHT

Note: Hydro-Gear p/n 51946

$11.99

$

Usually ships in 4-12 days

0

200

Gravely N/A

Note: Hydro-Gear p/n 71592

$

$

Currently unavailable
