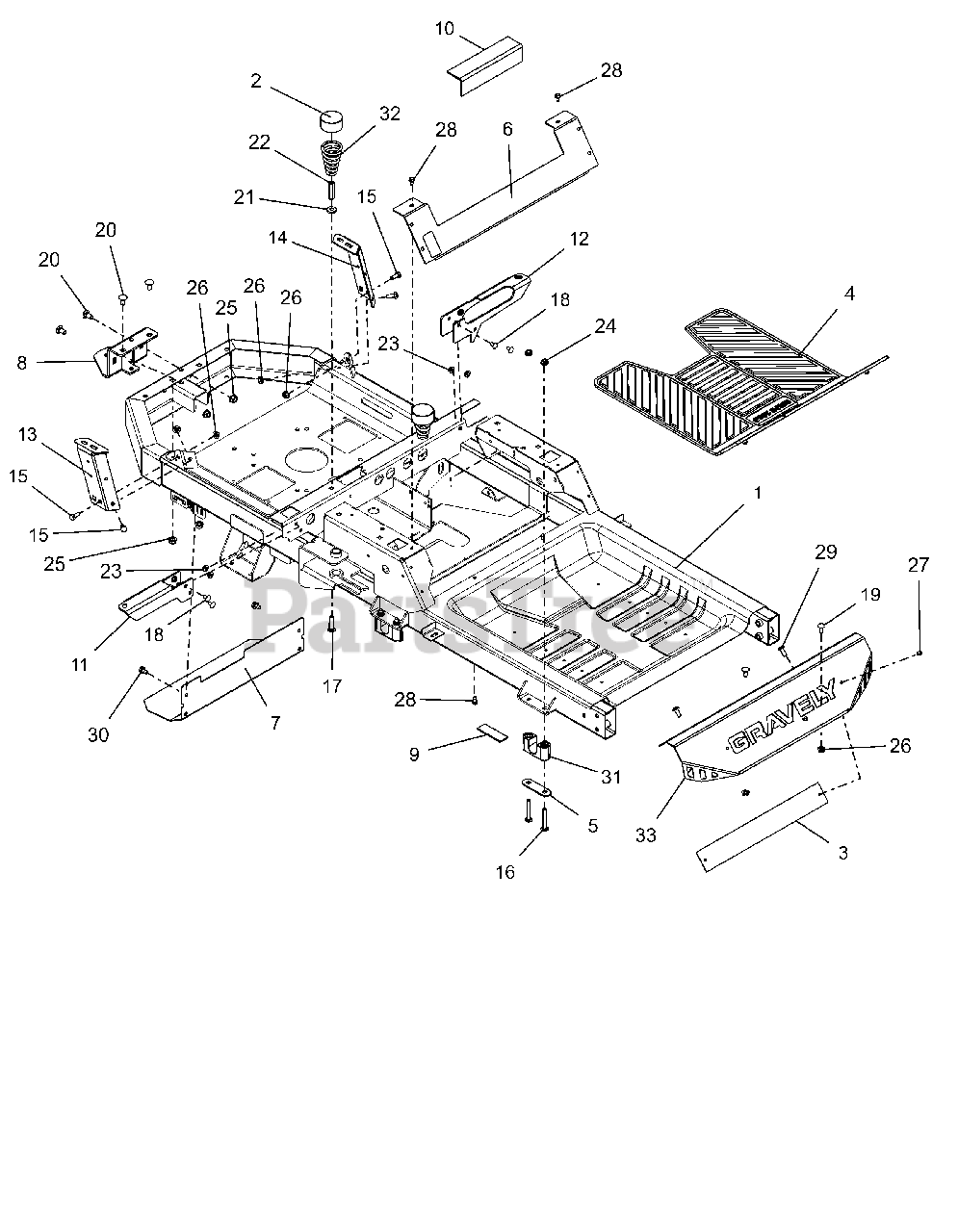

915172 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro (SN: 030000 - 034999) Frame Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro

Frame Parts Diagram

  • Title

1

Gravely 51531700

KIT, ZT-X/XL FRAME SERVICE

$813.99

$

Usually ships in 4-12 days

0

2

Gravely 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

3

Gravely 04718451

PLATE, BACK FOOT-REST XL

$8.49

$

Usually ships in 4-12 days

0

4

Gravely 04751400

FLOOR MAT, RUBBER - GRAVELY

$64.99

$

In Stock, only 3 left!

0

5

Gravely 04766551

PLATE, BEARING SUPPORT

$7.99

$

In Stock, only 1 left!

0

6

Gravely 04772353

PLATE, SEAT KICK

$

$

Not available

7

Gravely 04807951

HEAT, SHIELD

$30.99

$

In Stock, only 1 left!

0

8

Gravely 04835353

BRKT, HITCH TONGUE

$30.99

$

In Stock, only 1 left!

0

9

Gravely 04850000

PAD,RBR 1.0"X3.0" W/ADHESIVE

$

$

Not available

10

Gravely 04864600

PAD, RUBBER-TANK

$

$

Not available

11

Gravely 05077153

BRKT,CROSS EXTENSION - LH

$28.99

$

Usually ships in 4-12 days

0

12

Gravely 05077253

BRKT,CROSS EXTENSTION - RH

$

$

Not available

13

Gravely 05077353

MOUNT,FENDER-RH EXTENSION

$37.99

$

Usually ships in 4-12 days

0

14

Gravely 05077453

MOUNT,FENDER-LH EXTENSION

$33.99

$

Usually ships in 4-12 days

0

15

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06200226

BLT-RDHDSQSHNK .31-18X2.25 YWZ
(Superseded to 06200311)

$3.99

$

In Stock, only 2 left!

0

17

Gravely 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06214300

BLT-RDHDSQSHNK.25-20X.50 YWZC
(Superseded to 06200305)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

21

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 1 left!

0

22

Gravely 06500015

NUT, COUPLING 5/16-18 X 1 3/4
(Superseded to 06500927)

$3.99

$

In Stock, only 1 left!

0

23

Gravely 06500710

NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06800120

RIVET, .1875 AL/AL .126-.250

$

$

Not available

28

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 07400120

SCR-RDHDSKTAP .31-18 X .75
(Superseded to 07400134)

$2.49

$

Usually ships in 4-12 days

0

30

Gravely 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 07500327

BSHG, DECK LIFT PIVOT

$11.99

$

Usually ships in 4-12 days

0

32

Gravely 08300021

SPRING, SEAT

$20.99

$

Usually ships in 4-12 days

0

33

Gravely 51527600

KIT, FOOTPLATE W/DECAL-ZTX

$101.99

$

Usually ships in 4-12 days

0
