915172 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro (SN: 030000 - 034999) Chute Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro

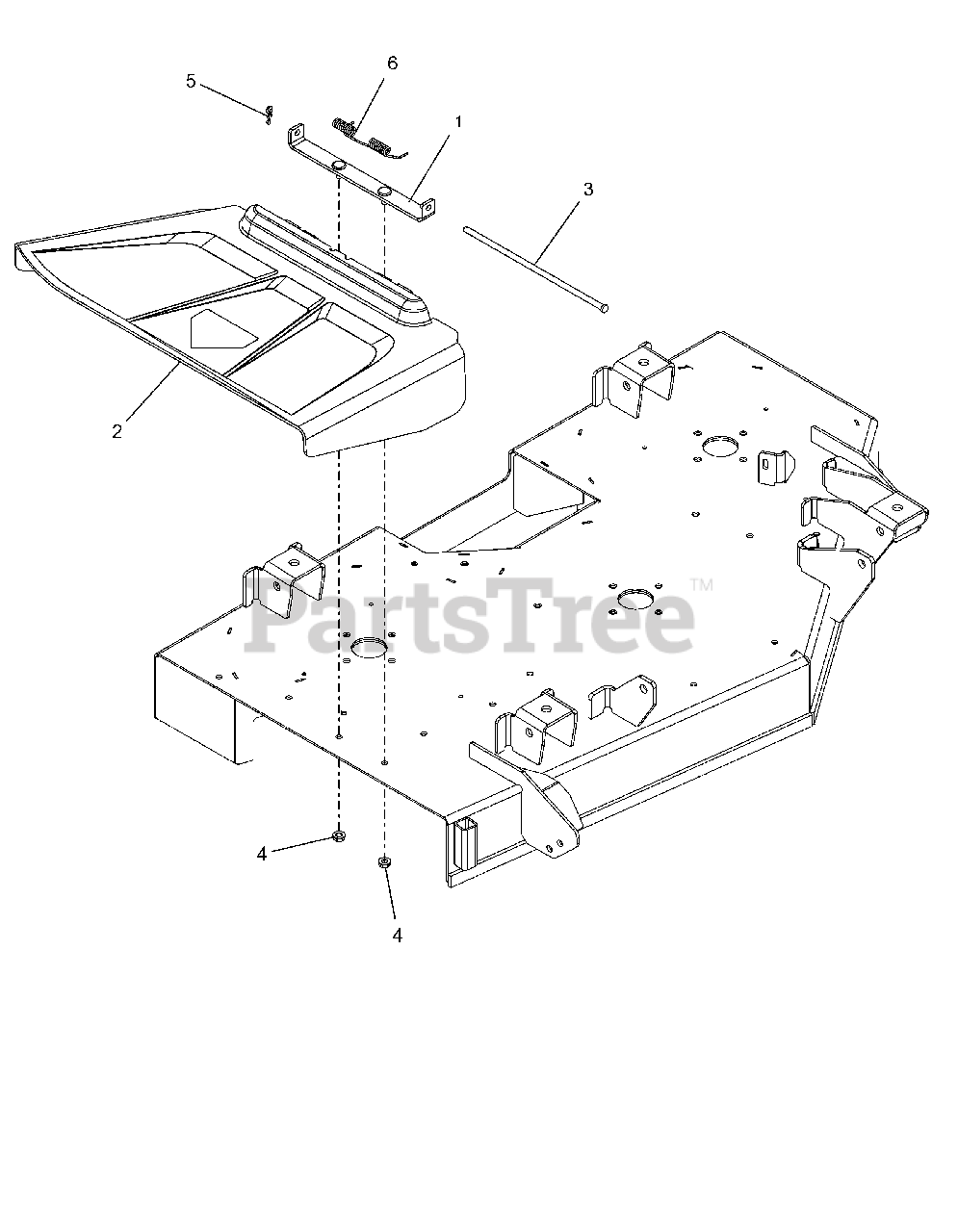

Chute Parts Diagram

  • Title
1

Gravely 04799853

WLDMT, CHUTE MT BRKT
(Superseded to 04799800)

$21.99

$

In Stock, Qty 20+

0

2

Gravely 04795000

CHUTE, SIDE DISCHARGE

$45.99

$

In Stock, Qty 20+

0

3

Gravely 04815900

PIN, 5/16 X 10.5
(Superseded to 06800205)

$15.99

$

In Stock, Qty 20+

0

4

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 08300621

SPRING-TORSION

$5.99

$

In Stock, Qty 20+

0
