915172 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro (SN: 016000 - 019999) Fuel System - Non-CARB Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro

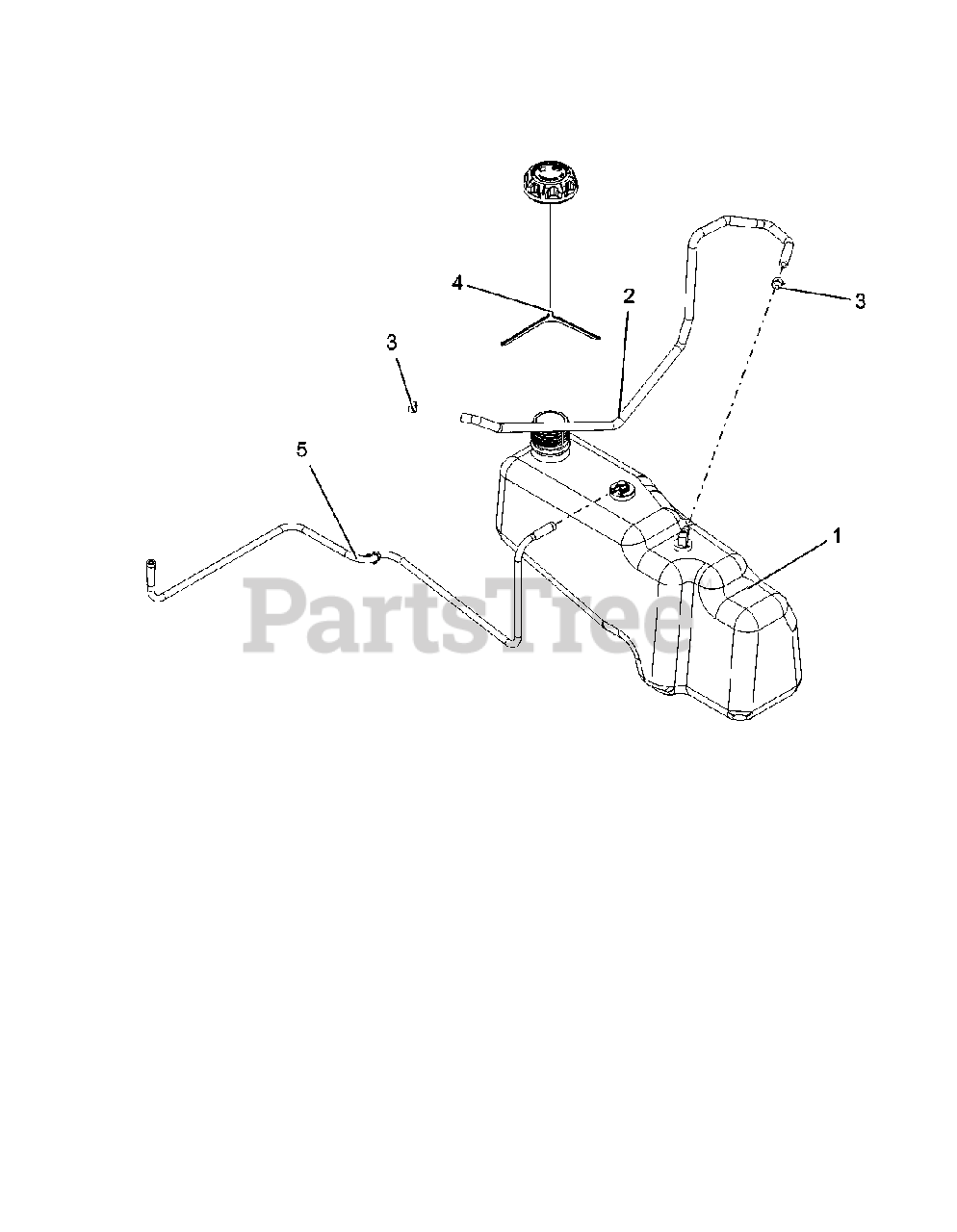

Fuel System - Non-CARB Parts Diagram

  • Title
1

Gravely 04751200

ASM, TANK NON-PERM FUEL
(Superseded to 05244600)

$176.99

$

In Stock, only 1 left!

0

2

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS-25" LONG

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Gravely 04589200

CAP, FUEL VENT-IN 2.25" RATCHET
(Superseded to 09190200)

$18.99

$

In Stock, Qty 20+

0

5

Gravely 04977200

LINE, FUEL VENT KOHLER SMCHOKE

$

$

Not available
