915172 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro (SN: 016000 - 019999) Frame Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro

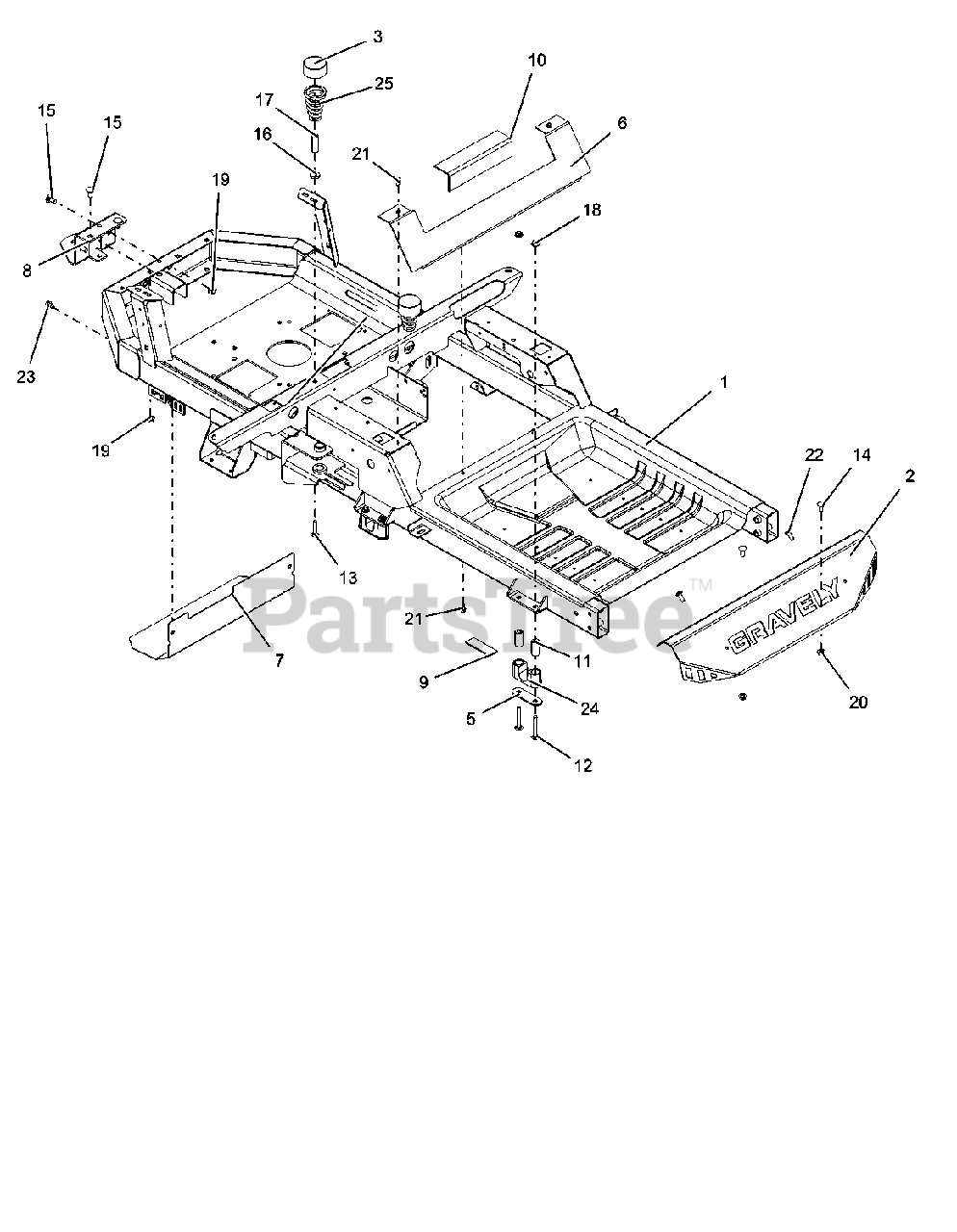

Frame Parts Diagram

  • Title
1

Gravely 04754553

WLDMT, FRAME IKON/ZTX
(Superseded to 51531700)

$813.99

$

Usually ships in 4-12 days

0

2

Gravely 51527600

KIT, FOOTREST W/DECAL-ZTX

$101.99

$

Usually ships in 4-12 days

0

3

$2.99

$

In Stock, Qty 20+

0

5

Gravely 04766551

PLATE, BEARING SUPPORT

$7.99

$

In Stock, only 1 left!

0

6

Gravely 04772353

PLATE, SEAT KICK

$

$

Not available

7

Gravely 04807951

HEAT, SHIELD

$30.99

$

In Stock, only 1 left!

0

8

Gravely 04835353

BRKT, HITCH-RED

$30.99

$

In Stock, only 1 left!

0

9

Gravely 04850000

PAD, RBR 1.0"X3.0" W/ADHESIVE

$

$

Not available

10

Gravely 04864600

PAD, RBR -TANK

$

$

Not available

11

Gravely 05501230

SPCR, SLV .323X.448X1.403

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 06200226

BLT-RDHDSQSHNK .31-18X2.25 YWZC
(Superseded to 06200311)

$3.99

$

In Stock, only 2 left!

0

13

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5 YWZC
(Superseded to 06200233)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5 YWZC
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

16

Gravely 06439100

WSHR-FL-STL, .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 1 left!

0

17

Gravely 06500015

NUT, COUPLER 5/16-18 x 1.75
(Superseded to 06500927)

$3.99

$

In Stock, only 1 left!

0

18

Gravely 06528700

NUT, LK-CTR-FLG .31-18 YWZC
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 07400120

SCR-TAP 10-24X.25 CRSLPH TR YZ
(Superseded to 07400134)

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 07500327

BSHG, DECK LIFT PIVOT

$11.99

$

Usually ships in 4-12 days

0

25

Gravely 08300021

SPRG, COMPRESSION

$20.99

$

Usually ships in 4-12 days

0
