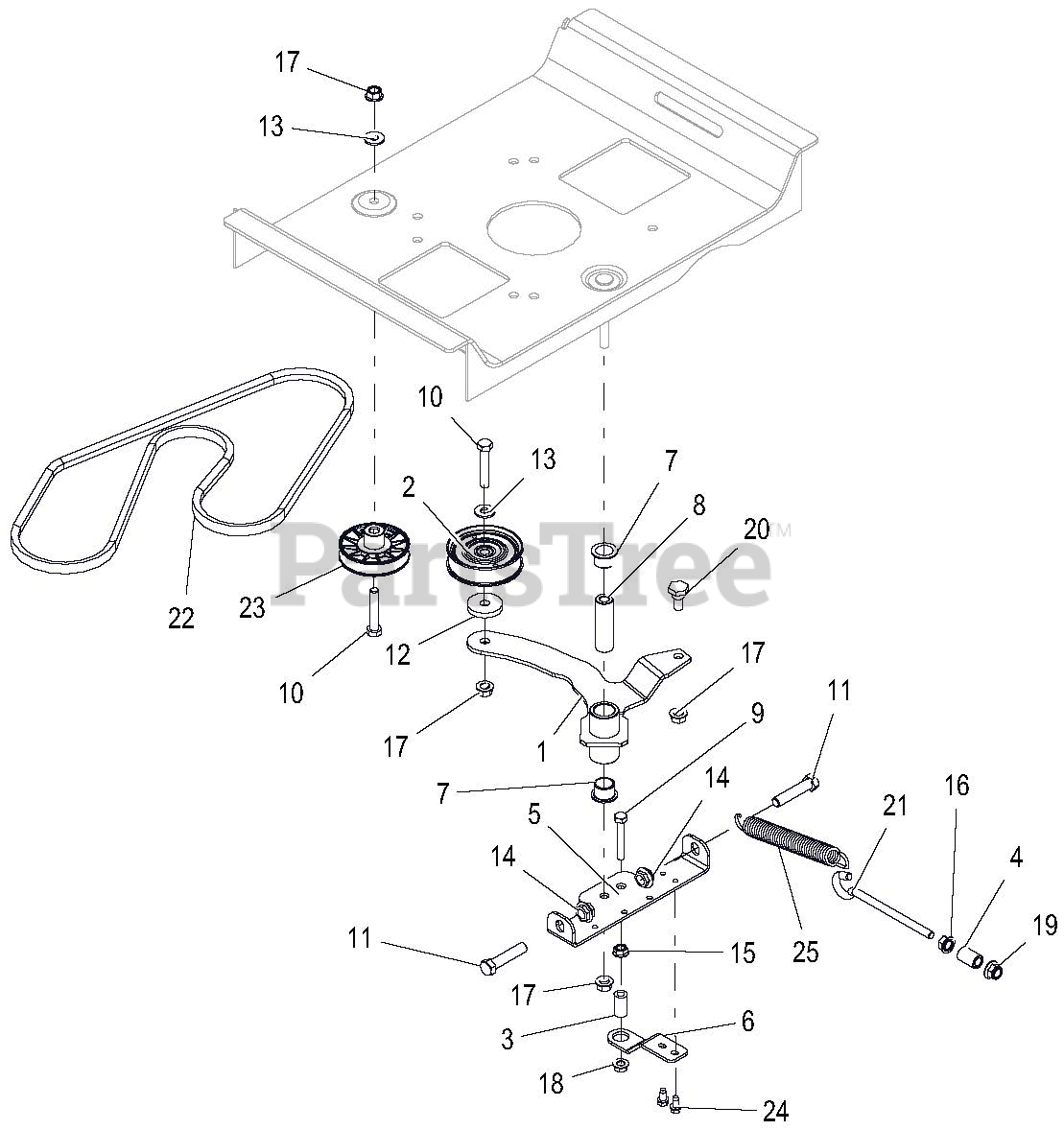

915172 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro (SN: 000101 - 015999) Transaxle Drive Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro

Transaxle Drive Parts Diagram

  • Title
1

Gravely 04780251

WLDMT, IDLER GROUND DRIVE

$142.99

$

Usually ships in 4-12 days

0

2

Gravely 07340000

IDLER, FLAT - 3.05" X .75"
(Superseded to 07350200)

$22.99

$

In Stock, only 1 left!

0

3

Gravely 03980200

SPCR, RUBBER 5/16 ID X 1.0 LG

$2.49

$

In Stock, only 2 left!

0

4

Gravely 04193500

SPCR, .375X.625X.970

$1.49

$

In Stock, only 2 left!

0

5

Gravely 04780651

BRKT, IDLER ATTACHMENT

$

$

Not available

6

Gravely 04793951

BRKT, CLUTCH STOP

$25.99

$

Usually ships in 4-12 days

0

7

Gravely 05500039

BSHG, FLANGE 0.75 X 0.875 X 0.625 X 0.125

$7.49

$

In Stock, only 2 left!

0

8

Gravely 05501227

BSHG, SLV .380x.750x2.53

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

11

Gravely 05982200

BLT-HEX .44-14X2.00 GR5 YWZC

$

$

Not available

12

Gravely 01594000

SPACER, .39 X 1350 X .380

$3.99

$

In Stock, only 1 left!

0

13

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06500009

NUT-LK-NYL-FLG .44-14 YWZC
(Superseded to 06500811)

$5.99

$

In Stock, only 1 left!

0

15

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 07000034

BLT, SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, only 1 left!

0

21

Gravely 07001640

BOLT, EYE .38-16X6.00 .62 DIA

$16.99

$

Usually ships in 4-12 days

0

22

Gravely 07200718

V-Belt, A-RAW EDGE

$52.99

$

In Stock, Qty 20+

0

23

Gravely 07343400

IDLER, V 3.00" COMPOSITE
(Superseded to 51531400)

$39.99

$

In Stock, only 1 left!

0

24

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 08300626

SPRG, EXTENSION .120X.845X6.55 WLD
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0
