915172 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro (SN: 000101 - 015999) Seat Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro

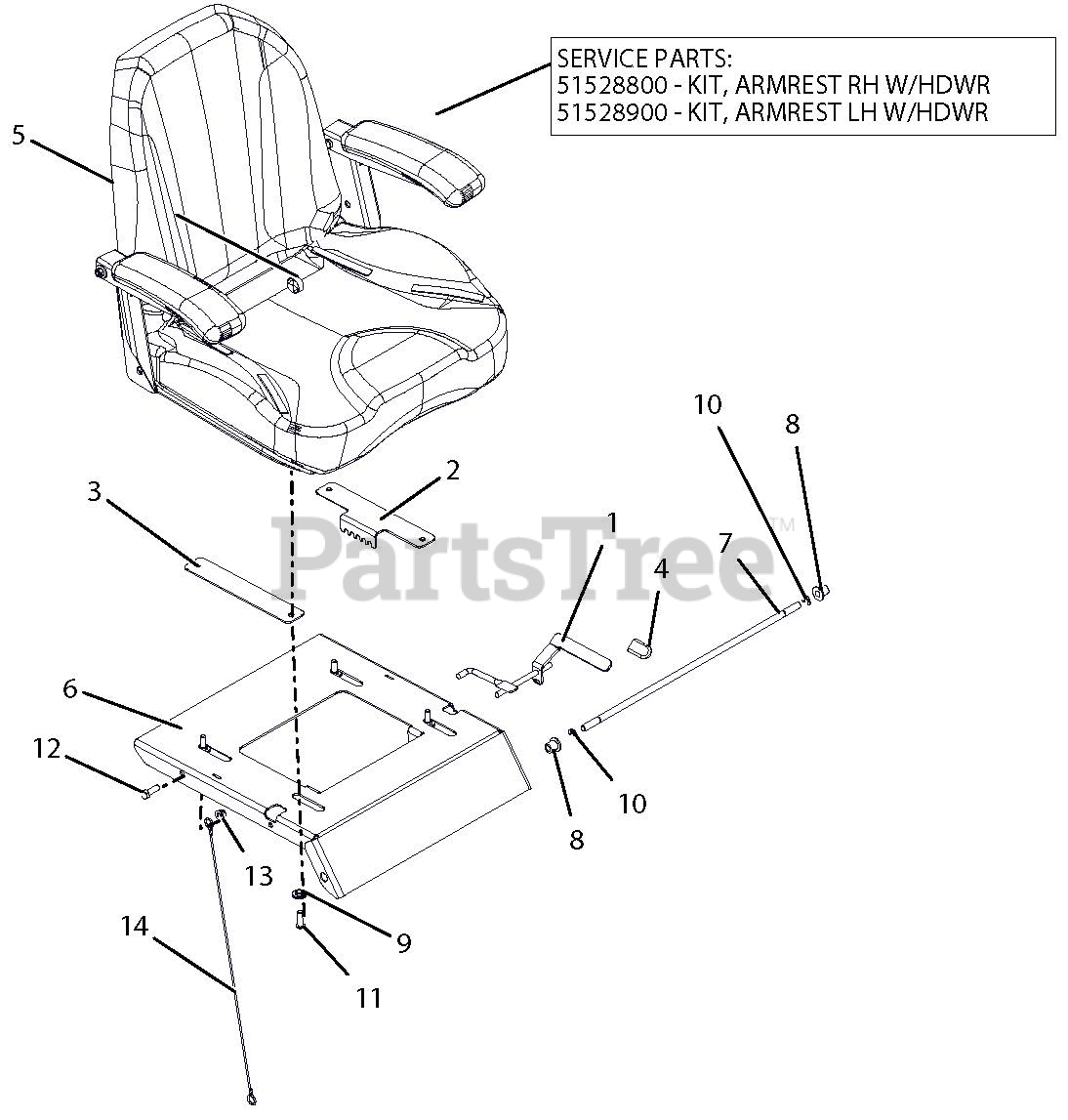

Seat Parts Diagram

  • Title

1

Gravely 04756451

WLDMT, ADJUSTABLE SEAT LATCH

$27.99

$

Usually ships in 4-12 days

0

2

Gravely 04376951

PLATE, ADJUSTABLE SEAT TRACK

$13.99

$

In Stock, only 1 left!

0

3

Gravely 04377051

PLATE, ADJUSTABLE SEAT SLIDE

$22.99

$

Usually ships in 4-12 days

0

4

Gravely 04396600

GRIP, SEAT LEVER, GREY

$

$

Not available

5

Gravely 04751800

SEAT, MOWER
(Superseded to 05176000)

$581.99

$

In Stock, only 1 left!

0

5

Gravely 51528800

KIT, ARMREST RH W/HDWR

Note: SERVICE PART

$136.99

$

Usually ships in 4-12 days

0

5

Gravely 51528900

KIT, ARMREST LH W/HDWR

Note: SERVICE PART

$136.99

$

Usually ships in 4-12 days

0

6

Gravely 04757053

PLATE, SEAT

$90.99

$

Usually ships in 4-12 days

0

7

Gravely 04816200

ROD, SEAT PIVOT
(Superseded to 09448000)

$

$

Not available

8

Gravely 05501231

BSHG, FLANGE .380 X .580 X .667 X .875

$2.99

$

In Stock, Qty 12

0

9

Gravely 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

10

Gravely 05710600

RING, RETAINING-E .375X.035

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05901508

SCR-SKH .31-18X1.00 BTNHD YWZC
(Superseded to 05901840)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06900623

CABLE, WIRE (LANYARD)-.093X19.5

$11.99

$

In Stock, only 3 left!

0
