915172 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro (SN: 000101 - 015999) Front Caster Wheels Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro

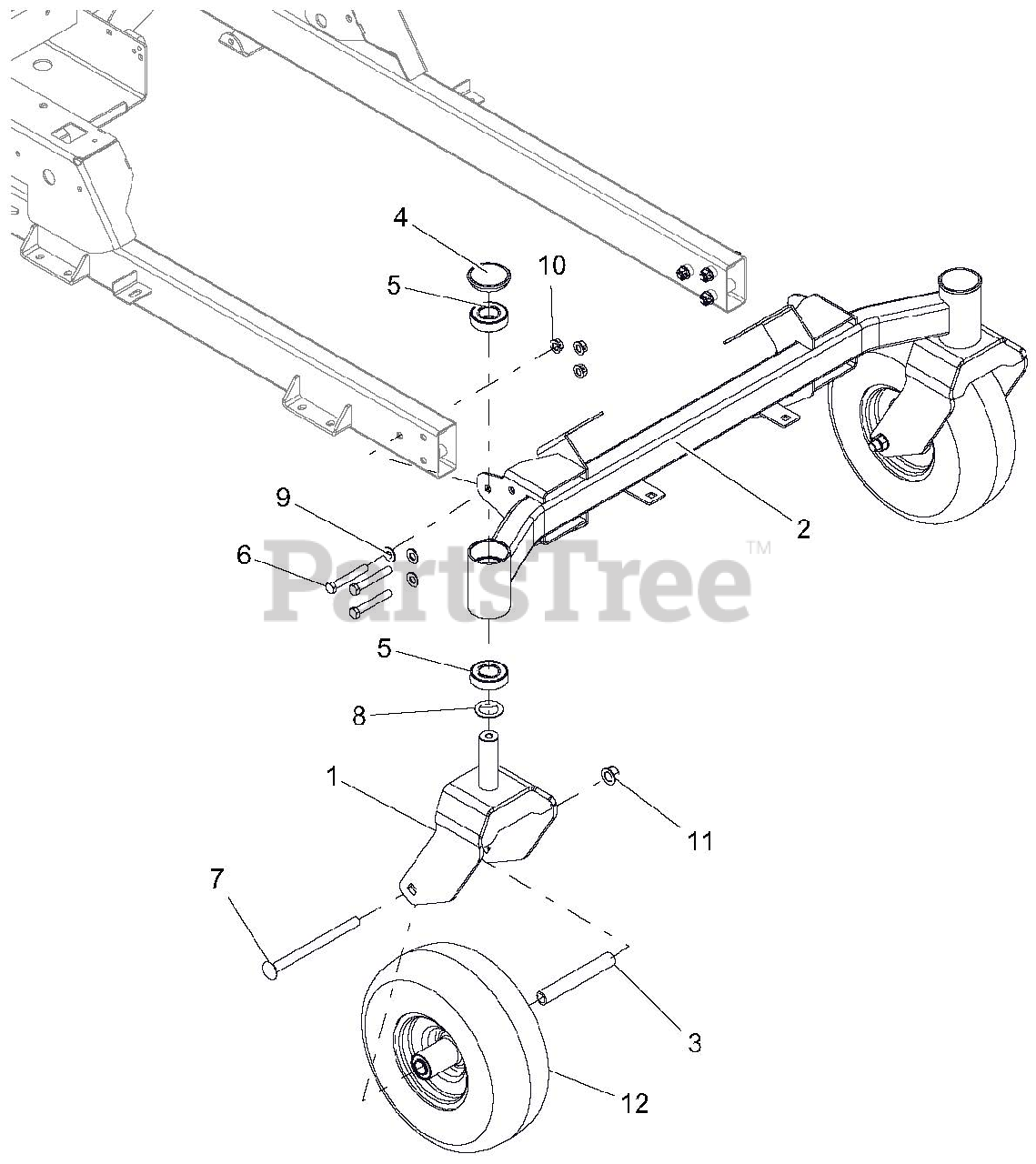

Front Caster Wheels Parts Diagram

  • Title
1

Gravely 04736653

WLDMT, CASTER FORK

Note: (RED)

$

$

Not available

2

Gravely 04759753

WLDMT, AXLE FRONT
(Superseded to 04968653)

$264.99

$

Usually ships in 4-12 days

0

3

Gravely 00278500

SPCR, ROLLED WHEEL

$13.99

$

In Stock, Qty 20+

0

4

Gravely 04792200

CAP, DUST

$12.99

$

In Stock, Qty 20+

0

5

Gravely 05400722

BRG-BALL 1.00X2.00X.56

$17.99

$

In Stock, Qty 9

0

6

Gravely 05901601

BLT-HEX .38-16X2.50 GR8 YWZC

$

$

Not available

7

Gravely 06200219

BLT-RDHDSQNK .50-13X6.50 G5 Y
(Superseded to 06200319)

$11.99

$

In Stock, only 2 left!

0

8

Gravely 06416600

WSHR, HRD THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0

9

Gravely 06439900

WSHR-HDND .406X.812X.075

$0.99

$

Usually ships in 4-12 days

0

10

Gravely 06500736

NUT, LK-TOP-FLG .38-16 GRG YWZC
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06543600

NUT, LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07100124

TIRE/WHEEL, 11 X 4-5

$74.99

$

In Stock, Qty 20+

0
