915171 - Ariens Zoom 42" Zero-Turn Mower, Kohler, CARB (SN: 035000 - 044999) Steering Controls Parts Diagram

Zoom 42" Zero-Turn Mower, Kohler, CARB

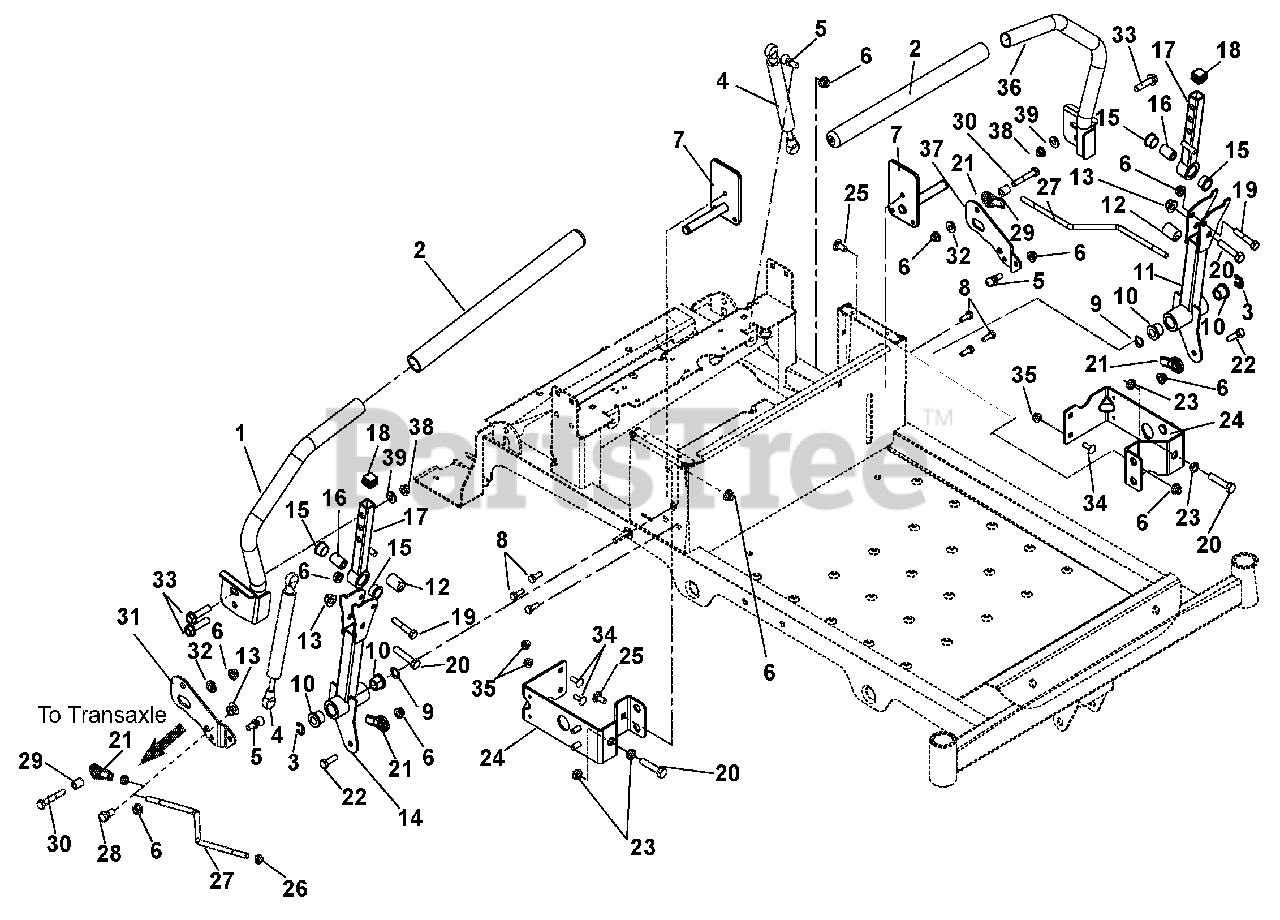

Steering Controls Parts Diagram

  • Title

1

Ariens 04193051

WMT, STEERING HANDLE

$129.99

$

In Stock, only 1 left!

0

2

Ariens 04257400

GRIP, HANDLEBAR 15" FOAM

$15.99

$

In Stock, only 1 left!

0

3

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 03943800

DAMPER, STABILUS

$40.99

$

In Stock, only 2 left!

0

5

Ariens 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

6

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 04197651

WMT, STEERING SHAFT

$67.99

$

In Stock, Qty 13

0

8

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, only 2 left!

0

10

Ariens 05511000

BSHG-FLG .500X.750X.625X.937

$11.99

$

In Stock, Qty 20+

0

11

Ariens 04192851

WMT, LOWER CONTROL ARM

$90.99

$

In Stock, only 2 left!

0

12

Ariens 05500932

BSHG, ECCENTRIC .328X.750X.970

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 04199451

WMT, LOWER CONTROL RH

$90.99

$

Usually ships in 4-12 days

0

15

Ariens 05501017

BSHG-FLG, .625X.75X.450X.875

$7.99

$

In Stock, only 3 left!

0

16

Ariens 04193500

SPACER, .375X.625X.970 (PM)

$1.49

$

In Stock, only 2 left!

0

17

Ariens 04192951

WMT, UPPER CONTROL ARM

$49.99

$

In Stock, only 4 left!

0

18

Ariens 07500131

CAP PLUG, SQ 3/4-14-20 RIBBED

$

$

Not available

19

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

20

Ariens 05974000

BLT-HEX .375-16X1.750 FTD YWZC
(Superseded to 05901612)

$2.99

$

In Stock, only 1 left!

0

21

Ariens 03787100

ALIGNABALL, 5/16 RH THREAD

$12.99

$

In Stock, only 2 left!

0

22

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 03956251

WMT, STEERING STOP

$193.99

$

In Stock, only 1 left!

0

25

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

26

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

27

Ariens 04197300

WIREFORM, STEERING LINK

$25.99

$

In Stock, only 2 left!

0

28

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 04208000

SPACER, .328X.500X.625

$3.99

$

Usually ships in 4-12 days

0

30

Ariens 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 03759351

PLATE, DAMPER RH

$13.99

$

Usually ships in 4-12 days

0

32

Ariens 04147200

BSHG-FLG .316X.430X.225X.750

$

$

Not available

33

Ariens 07050000

BLT-SERHFWH .375-16X1.25 YWZC
(Superseded to 07001816)

$3.99

$

Usually ships in 4-12 days

0

34

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

36

Ariens 04199551

WMT, STEERING HANDLE LH

$107.99

$

Usually ships in 4-12 days

0

37

Ariens 03766051

PLATE, DAMPER (LH)

$10.99

$

Usually ships in 4-12 days

0

38

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
