915171 - Ariens Zoom 42" Zero-Turn Mower, Kohler, CARB (SN: 035000 - 044999) Frame, Hood, Fenders, Casters And Tires Parts Diagram

Zoom 42" Zero-Turn Mower, Kohler, CARB

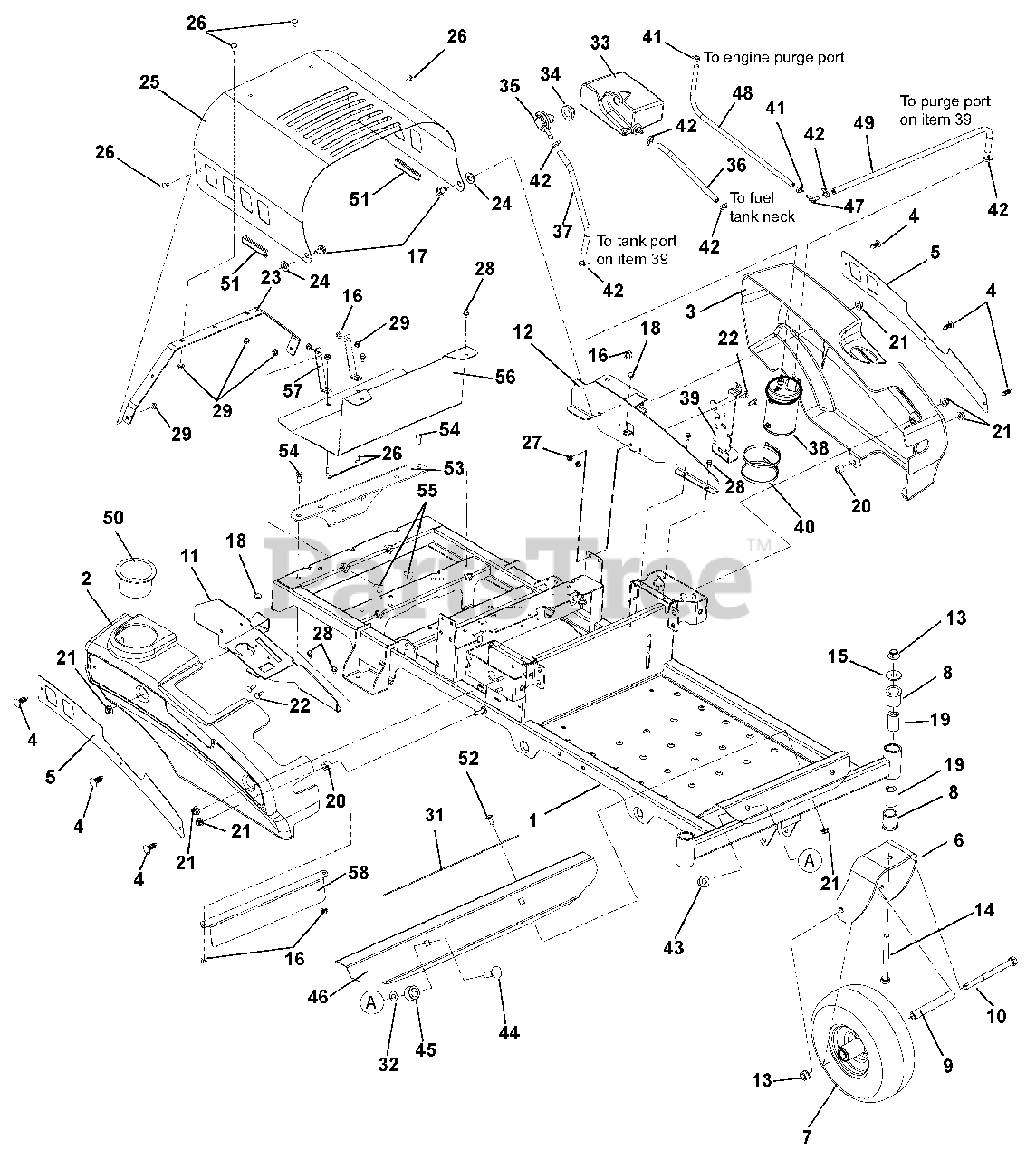

Frame, Hood, Fenders, Casters And Tires Parts Diagram

  • Title

1

Ariens 51525900

KIT, ZOOM/ZT FRAME W/ DECALS

$685.99

$

Usually ships in 4-12 days

0

2

Ariens 03768600

FENDER, RH

$79.99

$

In Stock, only 1 left!

0

3

Ariens 03768700

FENDER, LH
(Superseded to 51534400)

$96.99

$

Usually ships in 4-12 days

0

4

Ariens 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 16

0

5

Ariens 03769059

PLATE, FENDER

$39.99

$

Usually ships in 4-12 days

0

6

Ariens 03368559

WMT, CASTER FORK

$74.99

$

In Stock, only 1 left!

0

7

Ariens 07100124

TIRE/WHEEL ASSY, 11X4-5

$74.99

$

In Stock, Qty 20+

0

8

Ariens 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

9

Ariens 00278500

SPACER, ROLLED WHEEL

$13.99

$

In Stock, Qty 20+

0

10

Ariens 05964400

@BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

11

Ariens 04417659

WLDMT, RH FENDER MOUNT

$92.99

$

Usually ships in 4-12 days

0

12

Ariens 04240759

WLDMT, LH FENDER MOUNT

$

$

Not available

13

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05962200

@BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

15

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

16

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

18

Ariens 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 3 left!

0

19

Ariens 00363100

SPACER, CASTER .50X1.00X1.84

$6.99

$

In Stock, only 4 left!

0

20

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, only 1 left!

0

21

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 18

0

23

Ariens 04085759

BRACE, HOOD

$

$

Not available

24

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

25

Ariens 04411859

HOOD, ZOOM

$142.99

$

In Stock, only 1 left!

0

26

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

Note: (915169)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

Note: (915171)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

28

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (915169)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (915171)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (915169)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (915171)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 03833800

GRIP, ADHESIVE (1" X 16" BLK)

Note: (1" x 16" BLK)

$

$

Not available

32

Ariens 06500705

NUT-PUSH, .50

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 04423000

EXPANSION TANK SUB ASSY
(Superseded to 05244800)

$40.99

$

Usually ships in 4-12 days

0

34

Ariens 04082700

GROMMET, REMOTE VENT NITRILE

$3.49

$

In Stock, Qty 9

0

35

Ariens 04068910

VALVE, COMBINATION
(Superseded to 05185600)

Note: (.25" ID Hose)

$17.99

$

In Stock, only 1 left!

0

36

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

37

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

38

Ariens 04082500

CARBON CANISTER, 300CC

$62.99

$

Usually ships in 4-12 days

0

39

Ariens 04086551

BRKT-MOUNT, CANISTER BBZ

$18.99

$

Usually ships in 4-12 days

0

40

Ariens 04102900

P-PLASTIC TIE STRAP LARGE

$

$

Not available

41

Ariens 04097700

CLAMP-HOSE, SPRING .188

$

$

Not available

42

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

43

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 06224800

@BLT-RDHDSQNK .50-13X1.75 G5YZ
(Superseded to 06200330)

$5.99

$

Usually ships in 4-12 days

0

45

Ariens 04192901

TUBE, UPPER CONTROL PIVOT

$

$

Not available

46

Ariens 04188359

FOOTREST

$68.99

$

Usually ships in 4-12 days

0

47

Ariens 04097000

FITTING-3/16X1/4 90DEGREE VAC

$14.99

$

Usually ships in 4-12 days

0

48

Ariens 03375900

HOSE, .188 LOW-PERM BULK GAS

Note: (915169)

$0.99

$

Usually ships in 4-12 days

0

48

Ariens 03375900

HOSE, .188 LOW-PERM BULK GAS

Note: (915171)

$0.99

$

Usually ships in 4-12 days

0

49

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

49

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

50

Ariens 04192700

CUPHOLDER, SNAP-IN 3.75OD

$

$

Not available

51

Ariens 07500103

EDGING, CLUTCH PADDLE - 2.00"

$3.49

$

Usually ships in 4-12 days

0

52

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

53

Ariens 03853851

PLATE, BBZ HITCH KIT PLATE

Note: (915171)

$

$

Not available

54

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (915171)

$1.49

$

In Stock, Qty 20+

0

55

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

Note: (915171)

$2.49

$

In Stock, Qty 10

0

56

Ariens 04739351

GUARD, HEAT SHIELD (ZOOM/ZT)

Note: (Zoom) (915171)

$54.99

$

Usually ships in 4-12 days

0

57

Ariens 04739451

STRAP, HEAT SHIELD (ZOOM/ZT)

Note: (Zoom) (915171)

$14.99

$

Usually ships in 4-12 days

0

58

Ariens 04739551

GUARD, HOT SURFACE (ZOOM/ZT)

Note: (Zoom) (915171)

$

$

Not available
