915171 - Ariens Zoom 42" Zero-Turn Mower, Kohler, CARB (SN: 000101 - 009999) Fuel Tank Parts Diagram

Zoom 42" Zero-Turn Mower, Kohler, CARB

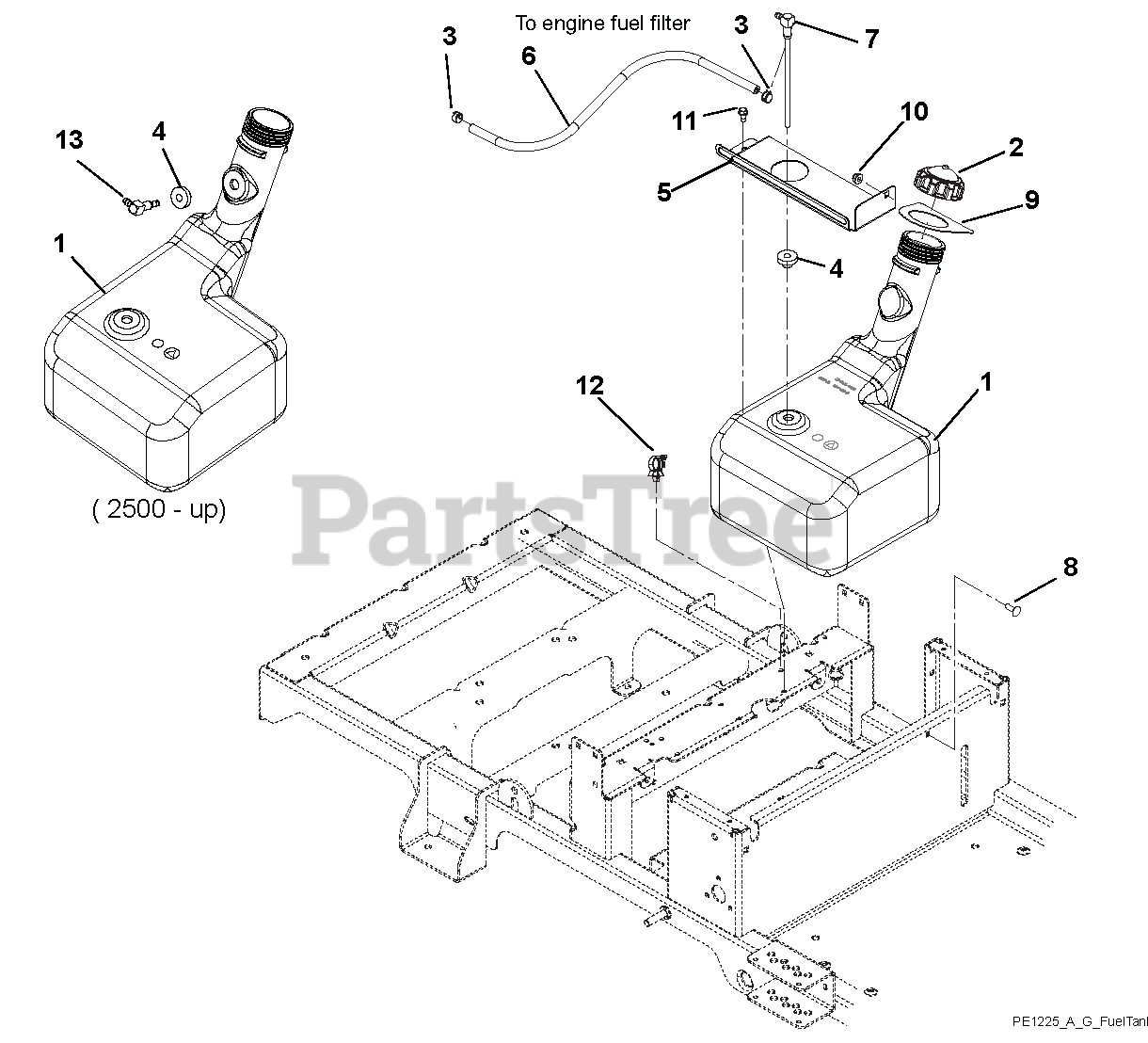

Fuel Tank Parts Diagram

  • Title

1

Ariens 03761700

FUEL TANK

Note: (Serial Number 101 - 2499)

$244.99

$

Usually ships in 4-12 days

0

1

Ariens 04191900

TANK, ZOOM/WAW NON-PERM. FUEL
(Superseded to 05244700)

Note: (Serial Number 2500 - up)

$162.99

$

Usually ships in 4-12 days

0

2

Ariens 01538400

FUEL CAP

Note: (Serial Number 101 - 2499)

$15.99

$

Usually ships in 4-12 days

0

2

Ariens 04238500

CAP, 2.25" ONE-WAY VENT FUEL
(Superseded to 09190200)

Note: (Serial Number 2500 - up)

$18.99

$

In Stock, Qty 20+

0

3

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Ariens 07500206

BSHG-FLG .375X1.062X.625 NITR

Note: (Serial Number 101 - 2499)

$2.49

$

In Stock, Qty 20+

0

4

Bushing (Serial Number 2500 - up)

Note: (Serial Number 2500 - up)

$

$

Not available

5

Ariens 03771451

BRKT, TANK STRAP

$

$

Not available

6

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: (as required)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 04333600

FUEL PICK UP TUBE

$15.99

$

In Stock, Qty 13

0

8

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 18

0

9

Ariens 03795700

SEAL-TANK NECK

$3.99

$

In Stock, Qty 5

0

10

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

11

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 00390100

WIRE CLIP

$3.49

$

Usually ships in 4-12 days

0

13

Ariens 04219300

FITTING, 90 DEG FUEL (PLASTIC)

Note: (Serial Number 2500 - up)

$

$

Not available
