915168 (ZT 34) - Gravely 34" Zero-Turn Mower, CARB (SN: 000101 - 009999) Mower Deck Lift Parts Diagram

34" Zero-Turn Mower, CARB

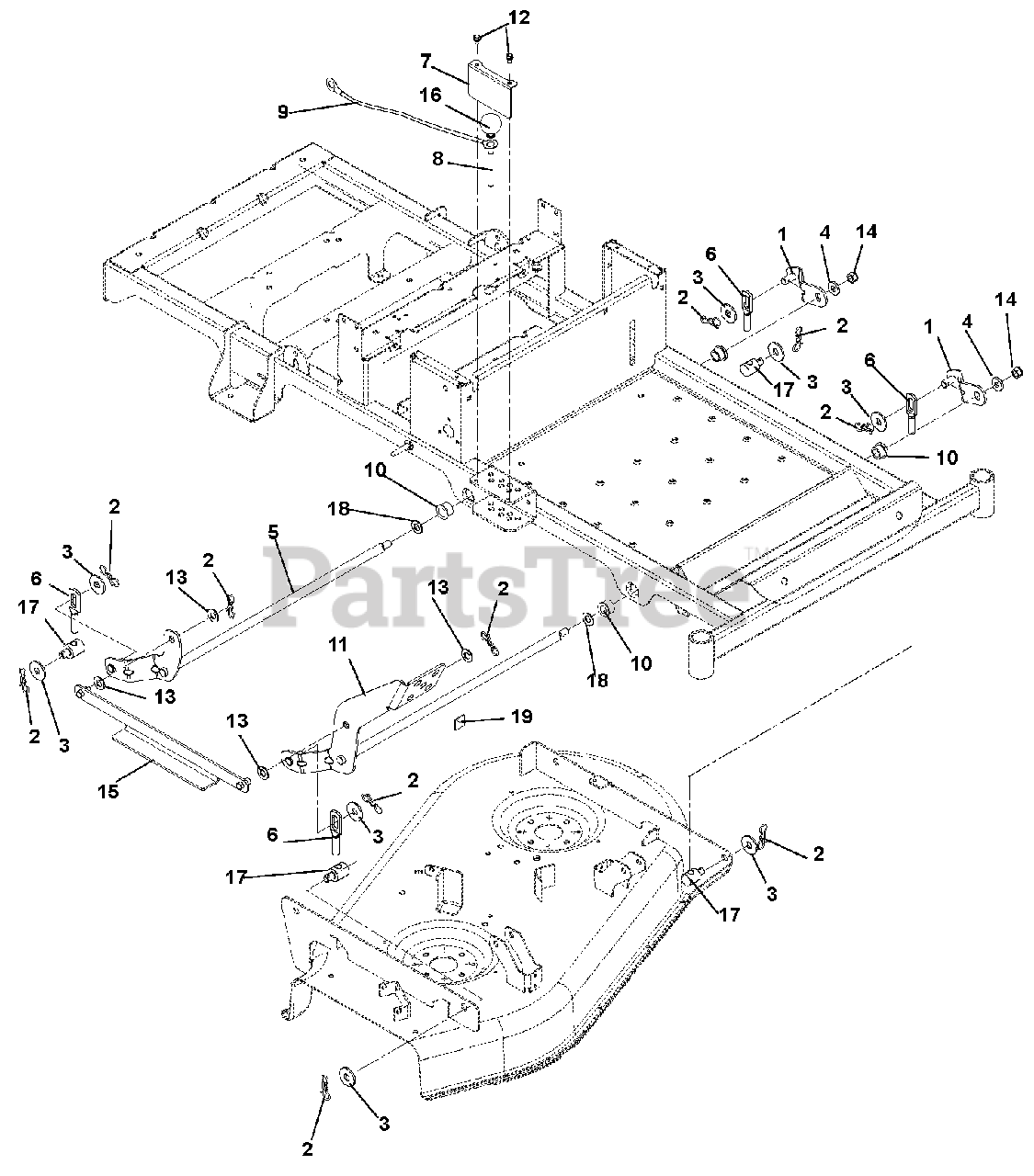

Mower Deck Lift Parts Diagram

  • Title

1

Gravely 03745400

Weldment, Lift Arm

$20.99

$

Usually ships in 4-12 days

0

2

Gravely 06700201

Pin, Bow Tie Locking Cotter .091 x 1.875
(Superseded to 06700220)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06436400

Washer, Flat, Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 06400903

Washer, Flat, Steel .50 x 1.25 x .160

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 03746100

Weldment, Rear Deck Lift Shaft

$109.99

$

Usually ships in 4-12 days

0

6

Gravely 00160000

Assembly, Deck Link
(Superseded to 03967600)

$34.99

$

In Stock, only 3 left!

0

7

Gravely 03766151

Guard, Deck Lift

$6.49

$

Usually ships in 4-12 days

0

8

Gravely 03755200

Pin, Deck

$43.99

$

Usually ships in 4-12 days

0

9

Gravely 06900317

Cable, 12.0 Lanyard, Nylon

$3.49

$

In Stock, only 2 left!

0

10

Gravely 05519100

Bushing, Flange .627 x .879 x .469 x 1.12

$7.49

$

Usually ships in 4-12 days

0

11

Gravely 03744800

Weldment, Deck Lift Pedal

$187.99

$

Usually ships in 4-12 days

0

12

Gravely 07411600

Screw, Tap .25-20 x .37
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06443300

Washer, Flat, Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06500633

Nut, Nyloc 7/16-20

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 03745300

Weldment, Lift Link

$41.99

$

In Stock, Qty 7

0

16

Gravely 07533500

Knob, Ball, Black 1.47" .375-16

$9.99

$

In Stock, Qty 6

0

17

Gravely 01590400

Trunnion, .50

$48.99

$

In Stock, only 4 left!

0

18

Gravely 06442800

Washer, Flat Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 07525100

Bumper, Rubber

$2.49

$

Usually ships in 4-12 days

0
