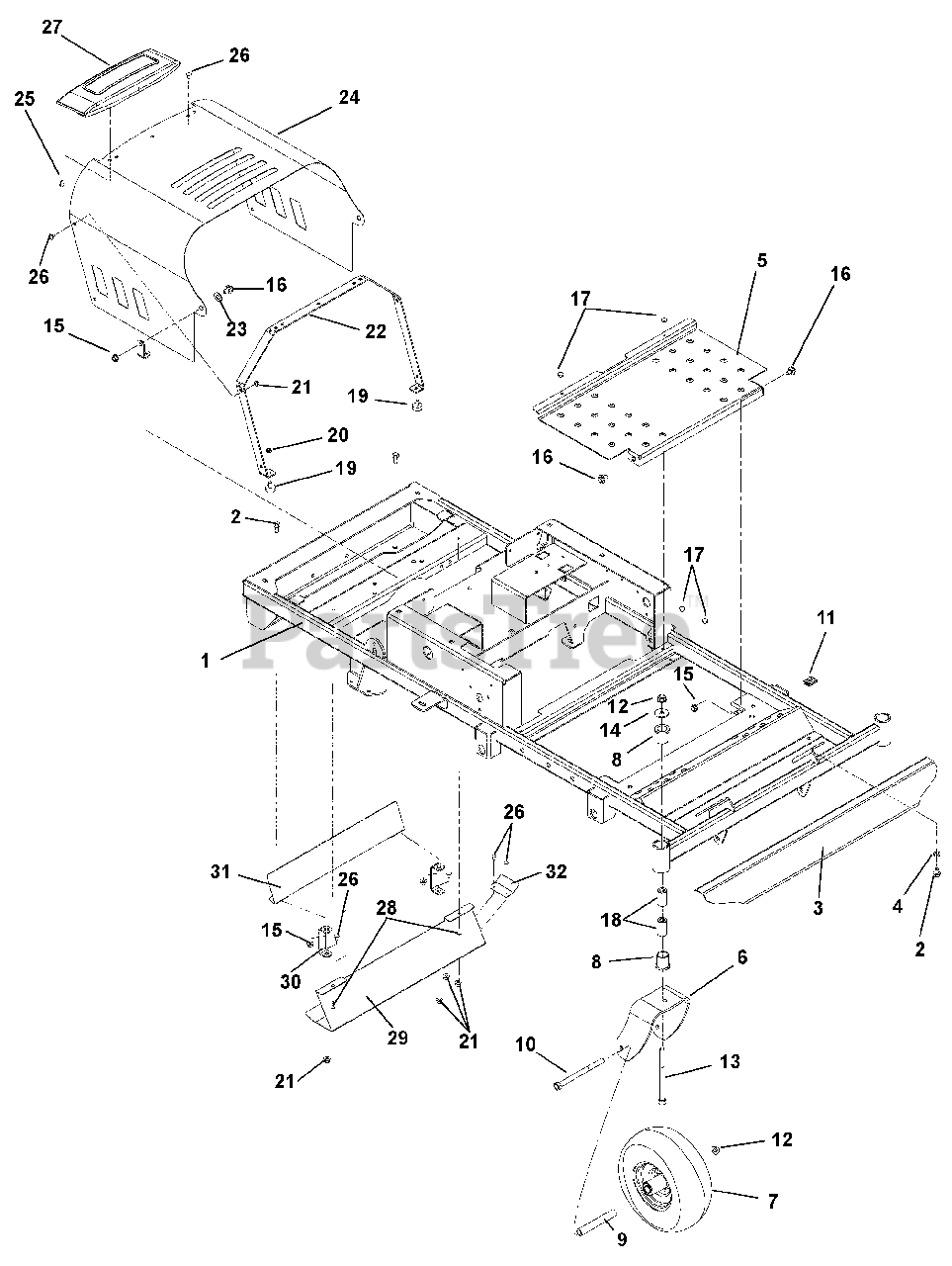

915165 - Ariens Zoom XL 48" Zero-Turn Mower, 23hp Kohler (SN: 035000 - 044999) Frame, Hood, Footrest, Casters And Tires Parts Diagram

Zoom XL 48" Zero-Turn Mower, 23hp Kohler

Frame, Hood, Footrest, Casters And Tires Parts Diagram

  • Title

1

Ariens 04559151

WLDMT, FRAME ZT/ZOOMXL (2013)

$1739.99

$

Usually ships in 4-12 days

0

2

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 01922959

WMT, FOOTREST

$170.99

$

Usually ships in 4-12 days

0

4

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 01923251

DECK ACCESS PANEL

$87.99

$

Usually ships in 4-12 days

0

6

Ariens 03368559

WMT, CASTER FORK

$74.99

$

In Stock, only 2 left!

0

7

Ariens 07100124

TIRE/WHEEL ASSY, 11X4-5

$74.99

$

In Stock, Qty 20+

0

8

Ariens 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

9

Ariens 00278500

SPACER, ROLLED WHEEL

$13.99

$

In Stock, Qty 20+

0

10

Ariens 05964400

@BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

11

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 4 left!

0

12

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 05962200

@BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

14

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

15

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

17

Ariens 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 3 left!

0

18

Ariens 00363100

SPACER, CASTER .50X1.00X1.84

$6.99

$

In Stock, Qty 11

0

19

Ariens 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

20

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 02985459

HOOD STRAP

$

$

Not available

23

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

24

Ariens 04045259

HOOD, XL

$124.99

$

Usually ships in 4-12 days

0

25

Ariens 07400106

SCR-HEX .25X14-.75

$2.49

$

In Stock, only 1 left!

0

26

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 02988200

TRIM-ZOOM XL HOOD ARIENS

$15.99

$

Usually ships in 4-12 days

0

28

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 04744751

GUARD, MUFFLER HEAT

$68.99

$

In Stock, only 1 left!

0

30

Ariens 04744851

STRAP, MUFFLER GUARD

$22.99

$

In Stock, only 1 left!

0

31

Ariens 04744951

SHIELD, HOT SURFACE

$34.99

$

Usually ships in 4-12 days

0

32

Ariens 04752651

DEFLECTOR, HEAT SHIELD

$28.99

$

Usually ships in 4-12 days

0
