915164 (ZT XL 54) - Gravely 54" Zero-Turn Mower, Kawasaki FR (SN: 035000 & Above) Transaxle - Left Hand Parts Diagram

54" Zero-Turn Mower, Kawasaki FR

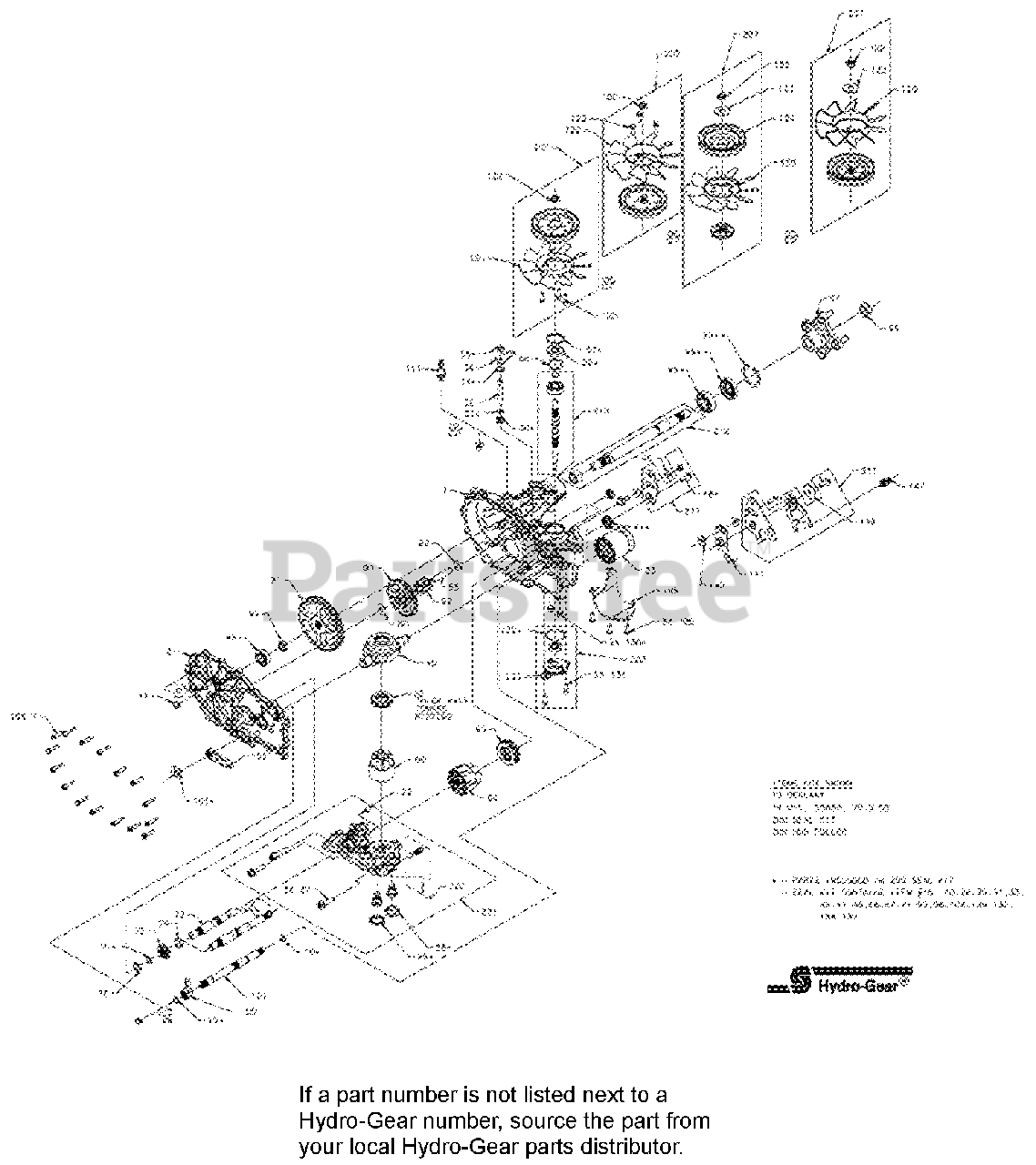

Transaxle - Left Hand Parts Diagram

  • Title

1

KIT, HOUSING, MAIN, LH, CHRG, CNTL

Note: Hydro-Gear p/n 71421

$

$

Not available

2

KIT, COVER, SIDE, LH

Note: Hydro-Gear p/n 71574

$

$

Not available

7

HFHCS 1/4-20 x 1.125"

Note: Hydro-Gear p/n 53246

$

$

Not available

10

O-RING - 111 .103 x .424

Note: Hydro-Gear p/n 51804

$

$

Not available

11

Gravely 08613700

PLUG, STEEL (WITH SEAL)

Note: Hydro-Gear p/n 9005110-5600

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 21543771

SEALANT TUBE 10.1OZ.

Note: Hydro-Gear p/n 50928

$116.99

$

In Stock, only 1 left!

0

14

OIL, 20W50

$

$

Not available

22

Gravely 21543839

PLATE, BYPASS

Note: Hydro-Gear p/n 51448

$

$

Not available

23

Gravely 21544900

FILTER, HYDRO-GEAR 2800 TRANS
(Superseded to 21545100)

Note: Hydro-Gear p/n 52114

$

$

Not available

26

SEAL, PLUG 1.250 x .250

Note: Hydro-Gear p/n 52162

$

$

Not available

27

HFHCS 3/8-16 x 1.5 (PATCH)

Note: Hydro-Gear p/n 52137

$

$

Not available

30

Gravely 21543845

SEAL, LIP .375X.75X.25

Note: Hydro-Gear p/n 51626

$9.49

$

Usually ships in 4-12 days

0

31

Gravely 08622500

RING. RETAINING

Note: Hydro-Gear p/n 51628

$4.49

$

In Stock, Qty 14

0

32

ROD, BYPASS

Note: Hydro-Gear p/n 52136

$

$

Not available

33

Gravely 21543846

RING, RET .750

Note: Hydro-Gear p/n 51627

$

$

Not available

34

ARM, BYPASS

Note: Hydro-Gear p/n 52370

$

$

Not available

35

Gravely 21543848

RING, RTNG .

Note: Hydro-Gear p/n 51630

$3.99

$

In Stock, only 1 left!

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

Note: Hydro-Gear p/n 51048

$70.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 18X32X7

Note: Hydro-Gear p/n 51140

$9.49

$

Usually ships in 4-12 days

0

45

Gravely 08611200

WASHER

Note: Hydro-Gear p/n 44130

$3.99

$

Usually ships in 4-12 days

0

46

Gravely 21543854

TWHCS 5/16-24 X 1.00

Note: Hydro-Gear p/n 51812

$2.99

$

Usually ships in 4-12 days

0

55

Gravely 21543773

WASHER 1.23X1.56X.04

Note: Hydro-Gear p/n 50951

$5.99

$

In Stock, only 2 left!

0

56

Gravely 21543816

SEAL, LIP 17X40X7

Note: Hydro-Gear p/n 51161

$14.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RET 1.56 INT

Note: Hydro-Gear p/n 50329

$6.99

$

Usually ships in 4-12 days

0

60

BEARING, THRUST

Note: Hydro-Gear p/n 51462

$

$

Not available

64

ASS'Y, CYLINDER BLOCK, 16cc

Note: Hydro-Gear p/n 71579

$

$

Not available

65

Gravely 08609100

BEARING. THRUST 30 X 52 X 13

Note: Hydro-Gear p/n 50551

$17.99

$

Usually ships in 4-12 days

0

69

Gravely 21543921

ASSY, BLOCK 7 PISTON

Note: Hydro-Gear p/n 70723

$142.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER .63X1.0X.05

Note: Hydro-Gear p/n 44371

$

$

Not available

71

Gravely 21543704

RING, RET 62 EXT

Note: Hydro-Gear p/n 44145

$

$

Not available

72

GEAR, 16T

Note: Hydro-Gear p/n 52149

$

$

Not available

73

SHAFT, MOTOR

Note: Hydro-Gear p/n 52150

$

$

Not available

74

Gravely 21543788

WASHER .71 X 1.16 X .04

Note: Hydro-Gear p/n 51069

$

$

Not available

80

Gravely 21543724

WASHER .5X1.0X.032

Note: Hydro-Gear p/n 50132

$

$

Not available

81

GEAR, 43T

Note: Hydro-Gear p/n 52148

$

$

Not available

82

GEAR, 11T

Note: Hydro-Gear p/n 52583

$

$

Not available

83

JACK SHAFT (PIN)

Note: Hydro-Gear p/n 51083

$

$

Not available

90

Gravely 08616500

RING, RETAINING

Note: Hydro-Gear p/n 50859

$9.49

$

Usually ships in 4-12 days

0

91

GEAR, 54T

Note: Hydro-Gear p/n 52108

$

$

Not available

92

SPACER, .75 x 1.32 x .257

Note: Hydro-Gear p/n 53336

$

$

Not available

93

BEARING, BALL, .75 x 40 x 12

Note: Hydro-Gear p/n 44121

$

$

Not available

95

Gravely 08614000

BEARING, BALL 25.4 X 52 X 15

Note: Hydro-Gear p/n 50771

$23.99

$

Usually ships in 4-12 days

0

96

Gravely 08614300

SEAL, LIP

Note: Hydro-Gear p/n 50772

$16.99

$

In Stock, only 1 left!

0

97

KIT, HUB, 4 BOLT

Note: Hydro-Gear p/n 71446

$

$

Not available

99

Gravely 08621100

NUT, HEX, LOCK 3/4-16

Note: Hydro-Gear p/n 50863

$7.49

$

Usually ships in 4-12 days

0

100

PAWL, BRAKE

Note: Hydro-Gear p/n 52776

$

$

Not available

101

SHAFT, BRAKE

Note: Hydro-Gear p/n 52651

$

$

Not available

102

Gravely 02996500

ARM, BRAKE

Note: Hydro-Gear p/n 52639

$19.99

$

Usually ships in 4-12 days

0

103

Gravely 21544007

CLIP,BRAKE ARM HYDROGEAR 52027

Note: Hydro-Gear p/n 52027

$5.99

$

In Stock, only 1 left!

0

105

Gravely 21543759

HFHCS 1/4-20X.75

Note: Hydro-Gear p/n 50752

$

$

Not available

106

GUARD, FILTER, LH

Note: Hydro-Gear p/n 52247

$

$

Not available

111

FITTING, STR 9/16-18 SAE .5 BARB

Note: Hydro-Gear p/n 71393

$

$

Not available

120

Gravely 21544011

FAN, HYDROGEAR 52576

Note: Hydro-Gear p/n 52576

$24.99

$

Usually ships in 4-12 days

0

122

Gravely 21543703

NUT, HEX 1/2-20 PATCH

Note: Hydro-Gear p/n 44133

$4.99

$

In Stock, only 4 left!

0

123

Gravely 21543791

HFHCS 1/4-20X.875

Note: Hydro-Gear p/n 51076

$3.49

$

Usually ships in 4-12 days

0

130

TUBE, CONNECTING

Note: Hydro-Gear p/n 52157

$

$

Not available

131

Gravely 08611500

GEROTOR

Note: Hydro-Gear p/n 50273

$27.99

$

Usually ships in 4-12 days

0

132

Gravely 21544005

O-RING HYDROGEAR 52250

Note: Hydro-Gear p/n 52250

$5.99

$

Usually ships in 4-12 days

0

133

COVER, CHARGE PUMP

Note: Hydro-Gear p/n 52688

$

$

Not available

134

Gravely 21543759

HFHCS 1/4-20X.75

Note: Hydro-Gear p/n 50752

$

$

Not available

140

SPACER .320 x 1.005 x .179

Note: Hydro-Gear p/n 52527

$

$

Not available

141

Gravely 21543866

ARM, NEUTRAL RIGHT

Note: Hydro-Gear p/n 51946

$11.99

$

Usually ships in 4-12 days

0

142

Gravely 21543843

SHCS 5/16-24X1 PATCH

Note: Hydro-Gear p/n 51616

$

$

Not available

146

Gravely 21543871

WASHER

Note: Hydro-Gear p/n 51950

$6.49

$

Usually ships in 4-12 days

0

147

Gravely 21544001

SPRING, HYDROGEAR P/N 51833

Note: Hydro-Gear p/n 51833

$

$

Not available

200

Gravely 21543999

KIT, SEAL

Note: Hydro-Gear p/n 71410

$77.99

$

Usually ships in 4-12 days

0

201

KIT, CENTER SECTION, LH, CHRG

Note: Hydro-Gear p/n 71563

$

$

Not available

202

KIT, CHARGE RELIEF

Note: Hydro-Gear p/n 71436

$

$

Not available

203

KIT, CHARGE PUMP

Note: Hydro-Gear p/n 71411

$

$

Not available

207

KIT, FAN & PULLEY

Note: Hydro-Gear p/n 71833

$

$

Not available

209

Gravely 21544009

HUB PULLER 4 BLT HYDGEAR 71459
(Superseded to 21544008)

Note: Hydro-Gear p/n 71459

$452.99

$

Usually ships in 4-12 days

0

210

Gravely 21544010

INPUT SHAFT 2800 HYDGEAR 71442
(Superseded to 21544039)

Note: Hydro-Gear p/n 71442

$

$

Not available

211

KIT, RTN, CCW

Note: Hydro-Gear p/n 71593

$

$

Not available

212

KIT, SHAFT, AXLE

Note: Hydro-Gear p/n 71570

$

$

Not available
