915164 (ZT XL 54) - Gravely 54" Zero-Turn Mower, Kawasaki FR (SN: 035000 & Above) Parking Brake Parts Diagram

54" Zero-Turn Mower, Kawasaki FR

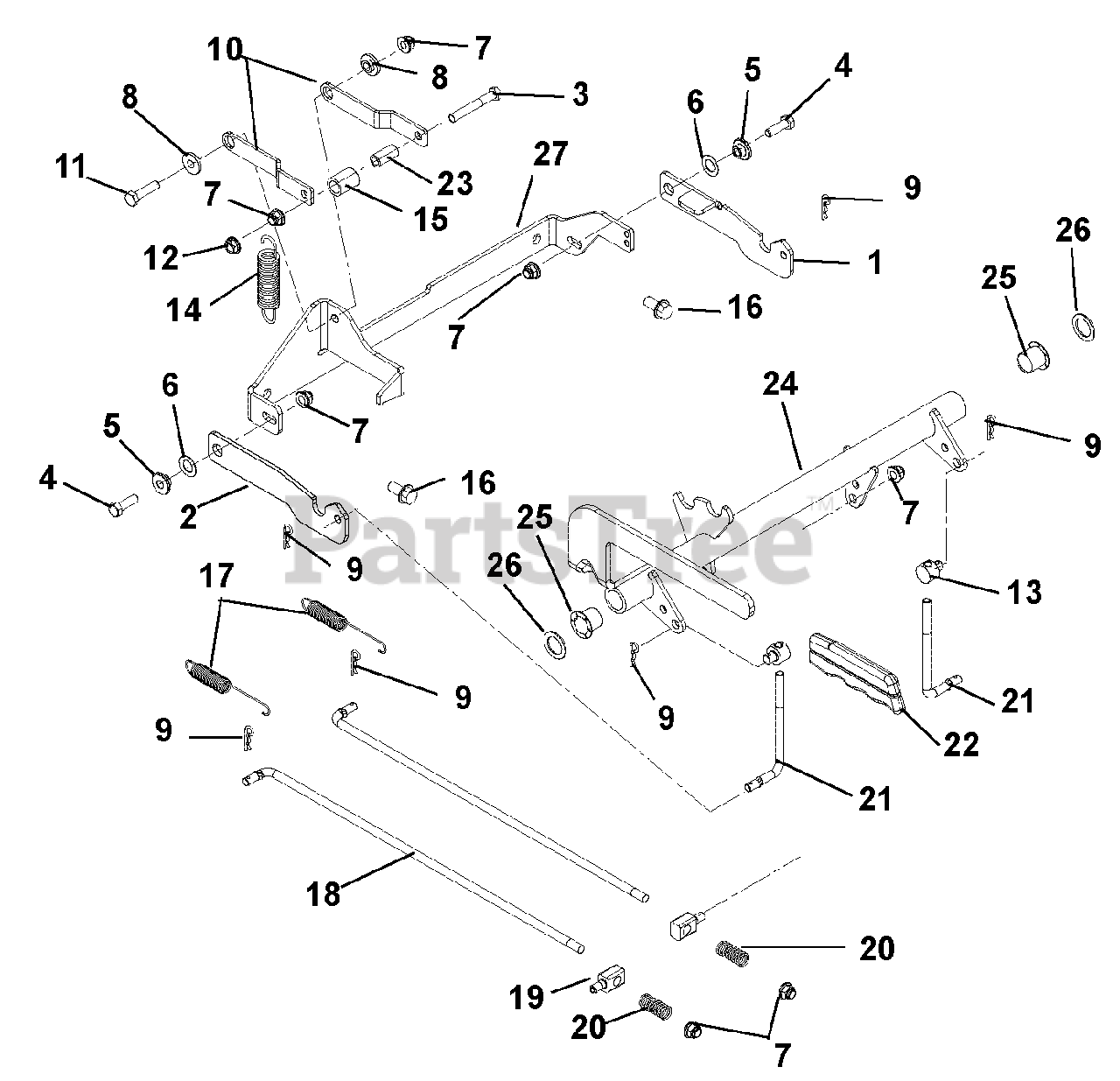

Parking Brake Parts Diagram

  • Title
1

Gravely 00952100

LINK, BRAKE INTERLOCK

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 00952000

INTERLOCK, BRAKE
(Superseded to 00952067)

$

$

Not available

3

Gravely 05963700

BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 3 left!

0

6

Gravely 06436000

WSHR-FL-STL .505X.875X.024 YWZ

$2.49

$

In Stock, only 4 left!

0

7

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

9

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 00952200

ARM, BRAKE CAM

$

$

Not available

11

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

12

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 01596400

TRUNNION, BRAKE .31-18 UNC

$51.99

$

Usually ships in 4-12 days

0

14

Gravely 08311700

SG-TENS .105X.812X3.88 WLD 15

$7.99

$

In Stock, only 1 left!

0

15

Gravely 02973100

ROLLER, CAM LOCK

$13.99

$

In Stock, only 1 left!

0

16

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 08300017

SG-TENS .056X.60X4.40

$5.99

$

In Stock, Qty 20+

0

18

Gravely 01959400

ROD, PARK BRAKE

$17.99

$

Usually ships in 4-12 days

0

19

Gravely 09267300

PIN, PIVOT/TRUNNION

$6.99

$

In Stock, only 1 left!

0

20

Gravely 08300028

SPRING, COMPRESSION

$4.99

$

In Stock, Qty 6

0

21

Gravely 01921600

LINK, INTERLOCK BRAKE

$77.99

$

Usually ships in 4-12 days

0

22

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW)

$3.99

$

In Stock, only 2 left!

0

23

Gravely 00364900

BSHG, SPCR .330X.500X1.01 PM

$6.49

$

In Stock, only 1 left!

0

24

Gravely 00826451

WMT, BRAKE SHAFT

$120.99

$

Usually ships in 4-12 days

0

25

Gravely 05500822

BUSHING, IGLIDE CLIP

$

$

Not available

26

Gravely 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 01959351

BRKT, BRAKE MTG

$

$

Not available
