915164 (ZT XL 54) - Gravely 54" Zero-Turn Mower, Kawasaki FR (SN: 035000 & Above) Mower Deck Lift Parts Diagram

54" Zero-Turn Mower, Kawasaki FR

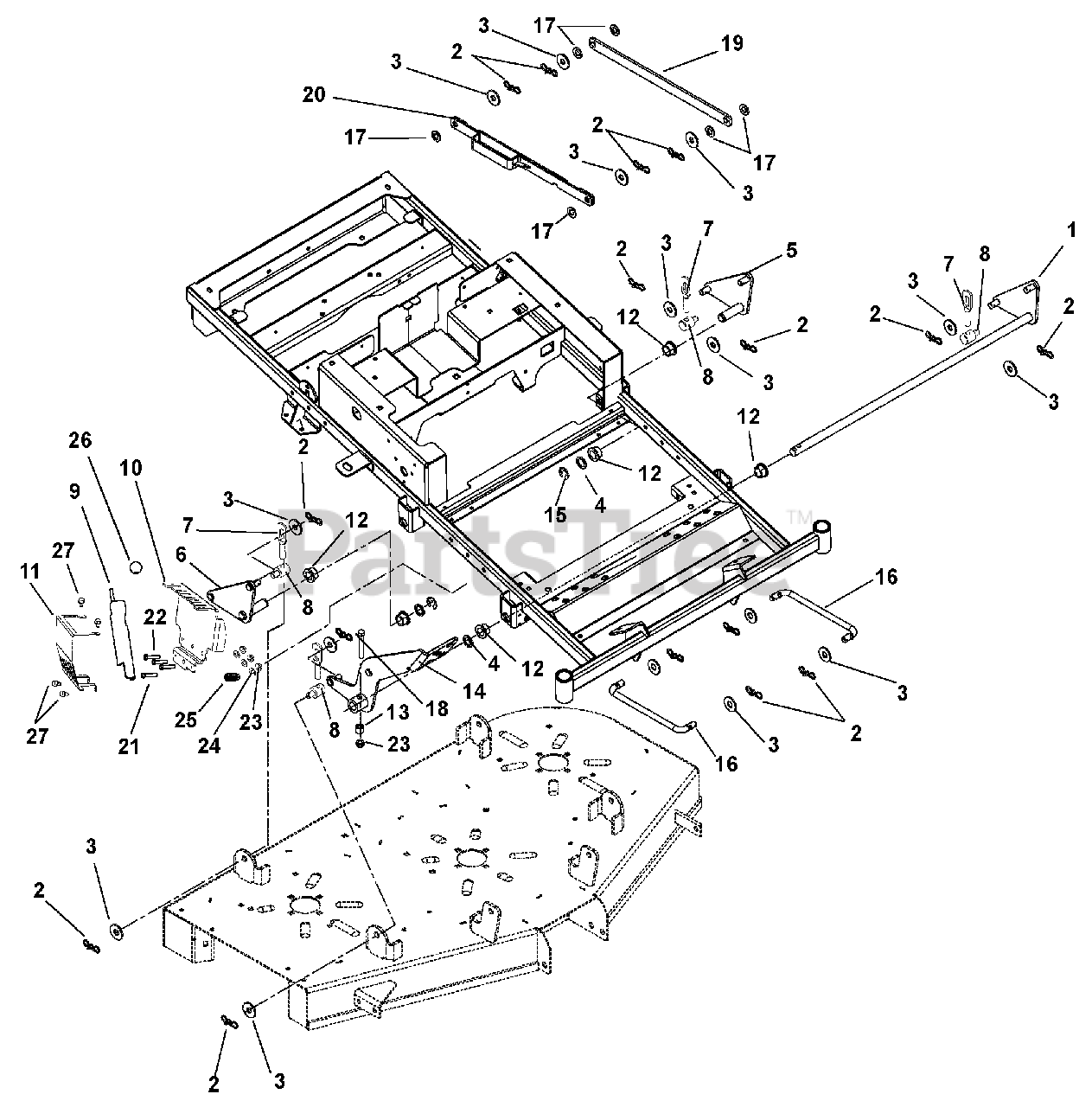

Mower Deck Lift Parts Diagram

  • Title
1

Gravely 02969267

WMT-DECK PIVOT FRONT

$

$

Not available

2

Gravely 06700201

PIN,BOW TIE LOCKING .091X1.875
(Superseded to 06700220)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 02969467

WMT-DECK PIVOT ZTXL REAR LH

$

$

Not available

6

Gravely 02969367

WMT-DECK PIVOT ZTXL REAR RH

$

$

Not available

7

Gravely 03967600

DECK LINK

$34.99

$

In Stock, only 3 left!

0

8

Gravely 01590400

TRUNNION-.50

$48.99

$

In Stock, only 4 left!

0

9

Gravely 04555551

LEVER, HOC WLDMT XL

$

$

Not available

10

Gravely 04650251

BRACKET, ADJUSTER HOC XL

$55.99

$

Usually ships in 4-12 days

0

11

Gravely 04650351

GUARD, PLATE FIXED

$17.99

$

Usually ships in 4-12 days

0

12

Gravely 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 6

0

13

Gravely 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, only 1 left!

0

14

Gravely 02969151

WMT-ZTXL FOOT PEDAL

$126.99

$

Usually ships in 4-12 days

0

15

Gravely 05707400

RG-RTNG-EXT .750X.050

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 02004500

LINK, DRAG

$17.99

$

In Stock, only 2 left!

0

17

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 02973051

LINK, LIFT

$25.99

$

Usually ships in 4-12 days

0

20

Gravely 04567367

HOC, LINK RETAINING XL

$43.99

$

Usually ships in 4-12 days

0

21

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 08337500

SPRING, COMPRESSION

$

$

Not available

26

Gravely 07533500

KNOB,BALL -BLACK 1.47" .375-16

$9.99

$

In Stock, Qty 6

0

27

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
