915164 (ZT XL 54) - Gravely 54" Zero-Turn Mower, Kawasaki FR (SN: 035000 & Above) Mower Deck, Belt, Idlers And Blades Parts Diagram

54" Zero-Turn Mower, Kawasaki FR

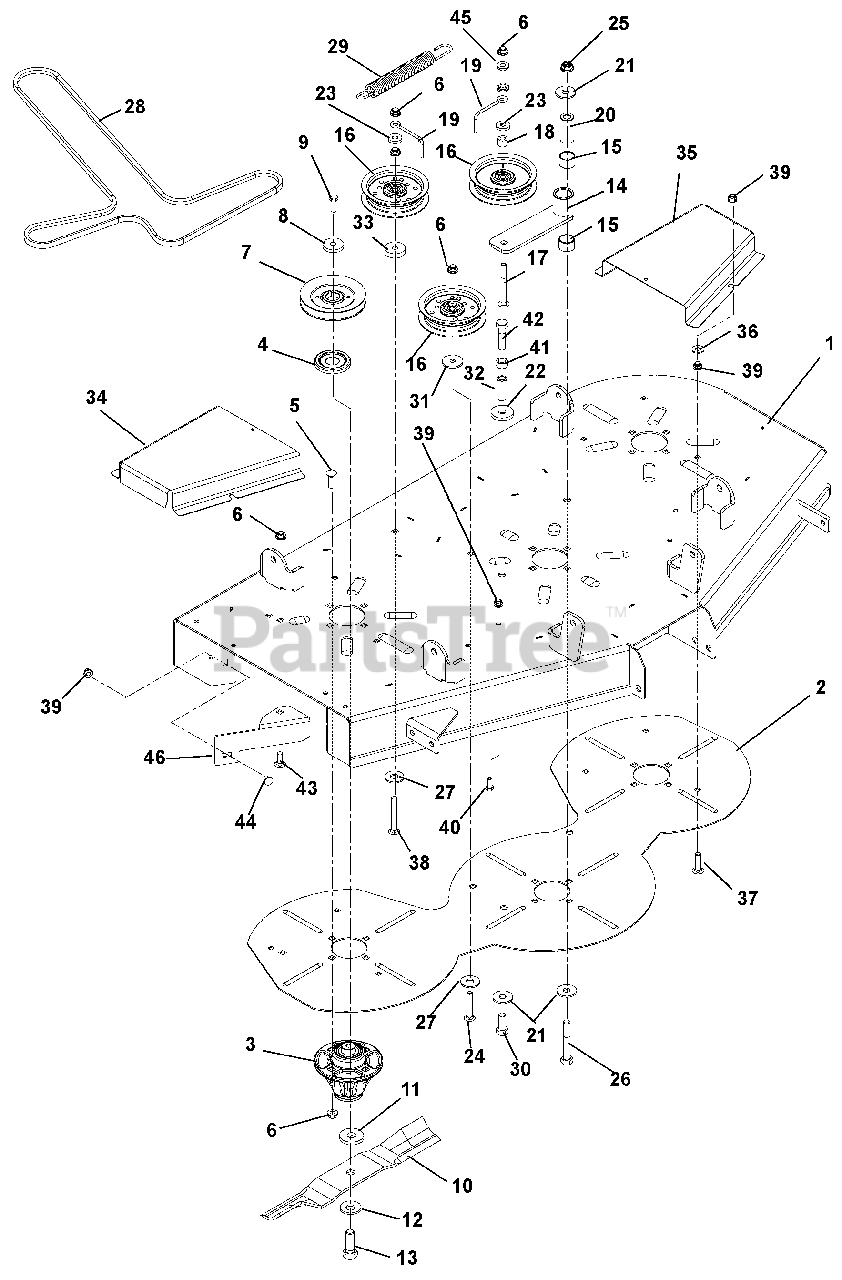

Mower Deck, Belt, Idlers And Blades Parts Diagram

  • Title
1

Gravely 51524300

XL-ZT 42" DECK REPLACEMENT

Note: (ZT XL) (915160, 184)

$

$

Not available

Gravely 51524400

XL- ZT 48" DECK REPLACEMENT

Note: (ZT XL) (915162, 186)

$1073.99

$

Usually ships in 4-12 days

0

Gravely 51524500

XL-ZT 54" DECK REPLACEMENT

Note: (ZT XL) (915164, 188)

$1033.99

$

Usually ships in 4-12 days

0

2

Gravely 03273053

DOUBLER PLATE, 42 XL

Note: (915160, 184)

$

$

Not available

Gravely 02991053

PLATE-48" ZTXL DECK REINF.

Note: (915162, 186)

$

$

Not available

Gravely 02989853

DOUBLER PLATE, 54" DECK

Note: (915164, 188)

$142.99

$

Usually ships in 4-12 days

0

3

Gravely 61543800

SPINDLE ASSEMBLY
(Superseded to 51510000)

$216.99

$

In Stock, Qty 12

0

4

Gravely 00587400

DUST CAP

$7.99

$

In Stock, only 3 left!

0

5

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07300426

SHEAVE-5.25" DIA A-SECTION
(Superseded to 07340767)

$53.99

$

In Stock, Qty 20+

0

8

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

9

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 02961600

BLADE, 14.50" MOWER (HI-LIFT)

Note: (915160, 184)

$27.99

$

In Stock, Qty 20+

0

Gravely 02982000

BLADE, 16.19 MOWER (HI-LIFT)
(Superseded to 00450200)

Note: (915162, 186)

$29.99

$

In Stock, Qty 20+

0

Gravely 02961700

BLADE, 18.44" MOWER (HI-LIFT)

Note: (915164, 188)

$30.99

$

In Stock, Qty 20+

0

11

Gravely 06400829

WSHR-FLT .640X1.75X.250

$3.99

$

In Stock, only 2 left!

0

12

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

13

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

14

Gravely 00652600

WELDMENT, IDLER ARM

$46.99

$

In Stock, only 1 left!

0

15

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 6

0

16

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

17

Gravely 06222400

BLT-RDHDSQNK .38-16X3.50 G5YZ
(Superseded to 06200302)

$9.49

$

In Stock, only 1 left!

0

18

Gravely 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, only 1 left!

0

19

Gravely 00391900

BELT FINGER

$20.99

$

In Stock, only 2 left!

0

20

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 20+

0

21

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, only 3 left!

0

23

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 06213400

BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

25

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 05965800

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

27

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

28

Gravely 07219600

V-BELT, HA-WRAPPED

Note: (915160, 184)

$80.99

$

In Stock, only 3 left!

0

Gravely 07200436

V-BELT, HA-WRAPPED

Note: (915162, 186)

$75.99

$

Usually ships in 4-12 days

0

Gravely 07200023

V-BELT, HA-WRAPPED

Note: (915164, 188)

$86.99

$

In Stock, Qty 20+

0

29

Gravely 08300020

EXTENSION SPRING

$26.99

$

In Stock, only 2 left!

0

30

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

31

Gravely 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, only 1 left!

0

32

Gravely 06500013

NUT, COUPLING 1/2-13X1.75 YWZC

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 01594000

SPACER, .39 X 1.50 X .380

$3.99

$

In Stock, only 1 left!

0

34

Gravely 00655953

BELT COVER, RIGHT GRAVELY

Note: (915160, 184)

$31.99

$

Usually ships in 4-12 days

0

Gravely 00486953

BELT COVER, RIGHT GRAVELY

Note: (915162, 186)

$58.99

$

Usually ships in 4-12 days

0

Gravely 02995353

COVER-BELT RH

Note: (915164, 188)

$50.99

$

Usually ships in 4-12 days

0

35

Gravely 00607553

BELT COVER, LEFT GRAVELY 40

Note: (915160, 184)

$40.99

$

Usually ships in 4-12 days

0

Gravely 00486853

BELT COVER, LEFT GRAVELY

Note: (915162, 186)

$38.99

$

Usually ships in 4-12 days

0

Gravely 02995253

COVER-BELT LH

Note: (915164, 188)

$44.99

$

In Stock, only 1 left!

0

36

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 06219200

BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 06228100

BLT-RDHDSQNK .38-16X3.00 G5YZ
(Superseded to 06200418)

$3.99

$

In Stock, only 1 left!

0

39

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

Note: (915162, 164, 186, 188)

$1.49

$

In Stock, Qty 20+

0

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

Note: (915160, 184)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (915162, 164, 186, 188)

$1.49

$

In Stock, Qty 20+

0

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (915160, 184)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 06537300

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

42

Gravely 05959700

BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$

$

Not available

43

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

44

Gravely 06212200

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 05515800

BSHG-FLG .406X.88X.270X.140

$9.49

$

In Stock, only 4 left!

0

46

Gravely 02989953

DEFLECTOR, 42

Note: (915160, 184)

$37.99

$

Usually ships in 4-12 days

0

Gravely 01975553

DEFLECTOR, 48/54 DECK

Note: (915162, 164, 186, 188)

$34.99

$

Usually ships in 4-12 days

0
