915164 (ZT XL 54) - Gravely 54" Zero-Turn Mower, Kawasaki FR (SN: 035000 & Above) Engine, Exhaust, Belts And Idlers Parts Diagram

54" Zero-Turn Mower, Kawasaki FR

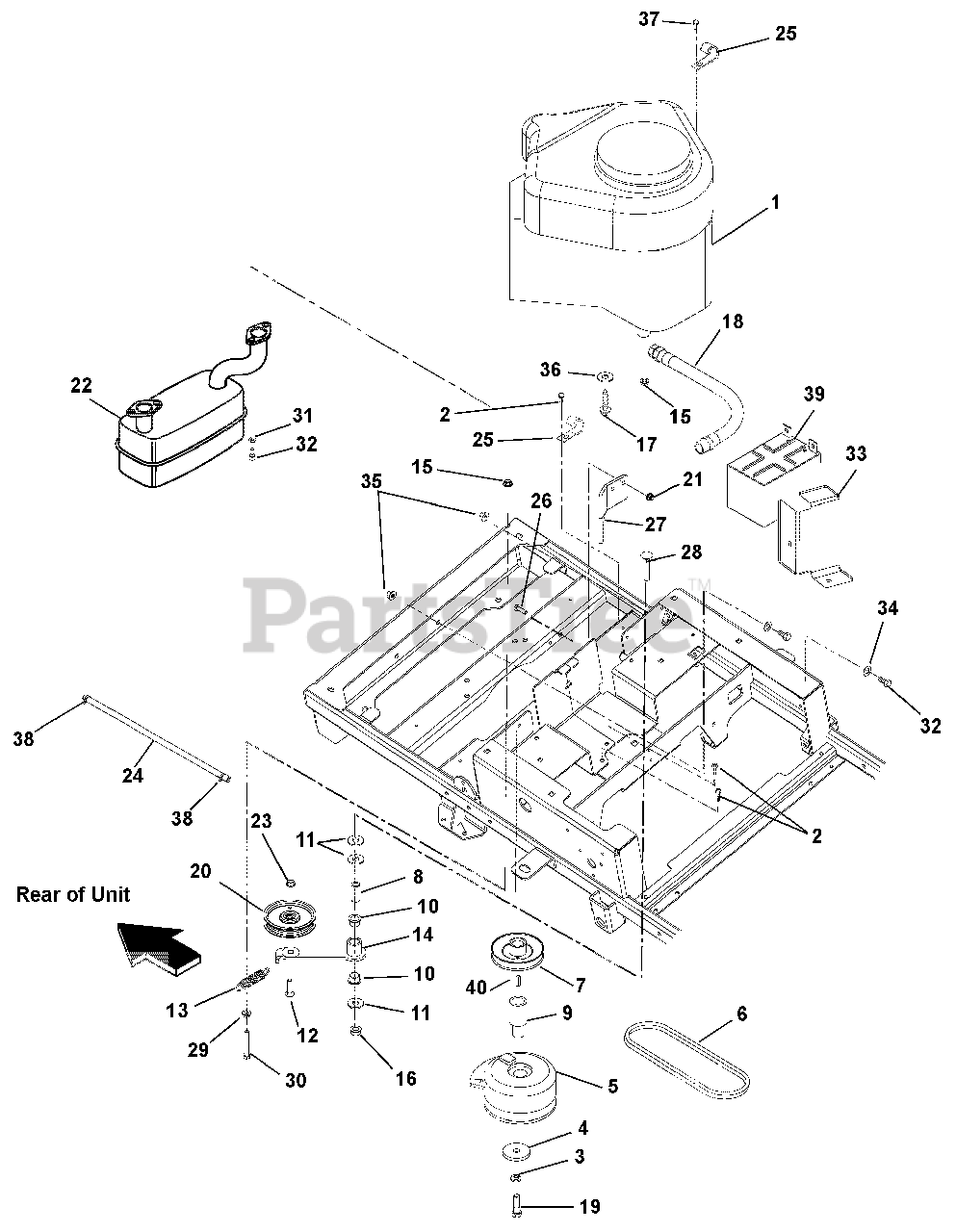

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title

1

Gravely 08200631

ENGINE, KAWASAKI FR651V

Note: (915160)

$

$

Not available

Gravely 08200717

ENGINE, KAWASAKI FR691 23HP

Note: (915162, 164)

$

$

Not available

Gravely 08201027

ENGINE, KOHLER TWIN - 24HP PRO

Note: (915184)

$

$

Not available

Gravely 08201005

ENGINE, KOHLER TWIN - 25HP PRO

Note: (915186, 188)

$

$

Not available

2

Gravely 07411600

SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

4

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

5

Gravely 04678300

CLUTCH,105FTLB MONOPOLE 6.83"

Note: (915160, 184)

$258.99

$

In Stock, only 4 left!

0

Gravely 04678400

CLUTCH,105FTLB MONOPOLE 6.12"

Note: (915162, 164, 186, 188)

$315.99

$

Usually ships in 4-12 days

0

6

Gravely 07242200

V-BELT, HA-WRAPPED

$48.99

$

In Stock, only 4 left!

0

7

Gravely 07336567

PULLEY, V-1" ID X 4.50" OD

$109.99

$

In Stock, only 2 left!

0

8

Gravely 05516400

BSHG-SLV .500X.750X1.560

$5.99

$

In Stock, only 3 left!

0

9

Gravely 02996000

EXT-CRANKSHAFT LOWER

$90.99

$

Usually ships in 4-12 days

0

10

Gravely 05500039

BSHG-FLG 0.75X0.875X.625X1.125

$7.49

$

In Stock, only 2 left!

0

11

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

12

Gravely 06224200

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

13

Gravely 08311700

SG-TENS .105X.812X3.88 WLD 15

$7.99

$

In Stock, only 1 left!

0

14

Gravely 02003800

WMT, GROUND DRIVE IDLER ARM

$66.99

$

Usually ships in 4-12 days

0

15

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05900125

BLT-HEX.38-16X1.25FTHG5 EP30YZ
(Superseded to 05901507)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 03844200

OIL DRAIN HOSE

$19.99

$

Usually ships in 4-12 days

0

19

Gravely 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

$6.99

$

In Stock, Qty 7

0

20

Gravely 07300101

ASM, 4" IDLER (.75 WIDE)

$62.99

$

In Stock, Qty 20+

0

21

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 03946900

MUFFLER, TWIN
(Superseded to 04749700)

Note: (915160, 162, 164)

$50.99

$

In Stock, only 1 left!

0

Gravely 04249700

MUFFLER, KOHLER TWIN COURAGE

Note: (915184, 186, 188)

$78.99

$

In Stock, only 1 left!

0

23

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 03260051

CLUTCH STOP

$20.99

$

In Stock, only 1 left!

0

28

Gravely 06225500

BLT-RDHDSQNK .50-13X2.50 G5YZ

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

31

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 04593051

BRKT, BATTERY HOLDER

$

$

Not available

34

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06509200

NUT-KEPS .250-20
(Superseded to 06500921)

$1.49

$

In Stock, only 1 left!

0

36

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

39

Gravely 04591900

BATTERY, 12V; 215 CCA GEP
(Superseded to 04738800)

$122.99

$

In Stock, Qty 20+

0

40

Gravely 06602100

KEY-STR .25X2.0X.25

$4.99

$

Usually ships in 4-12 days

0
