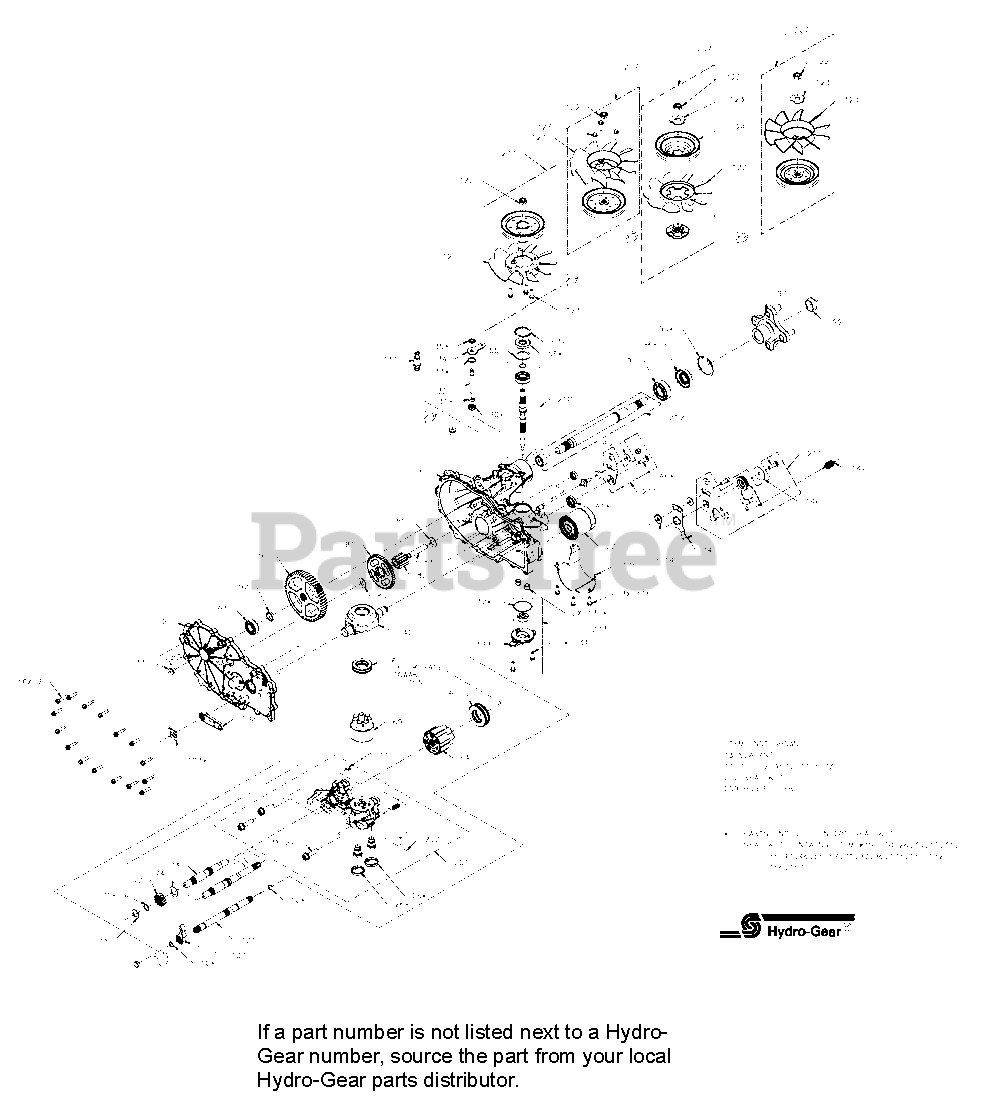

915162 (ZT XL 48) - Gravely 48" Zero-Turn Mower, Kawasaki FR (SN: 010000 - 019999) Transaxle - Right Hand Parts Diagram

48" Zero-Turn Mower, Kawasaki FR

Transaxle - Right Hand Parts Diagram

  • Title

1

--------

KIT, HOUSING, MAIN, RH, CHRG, CNTL

Note: HydroGear p/n:71413

$

$

Not available

2

--------

KIT, COVER, SIDE, RH

Note: HydroGear p/n:71572

$

$

Not available

7

--------

HFHCS 1/4-20 x 1.125"

Note: HydroGear p/n:53246

$

$

Not available

10

--------

O-RING - 111 .103 x .424

Note: HydroGear p/n:51804

$

$

Not available

11

Gravely 08613700

PLUG 9/16-18 (METAL)

Note: HydroGear p/n:9005110-5600

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 21543771

SEALANT

Note: HydroGear p/n:50928

$116.99

$

In Stock, only 1 left!

0

14

--------

OIL, 20W50

Note: HydroGear p/n:------

$

$

Not available

22

Gravely 21543839

PLATE, BYPASS

Note: HydroGear p/n:51448

$

$

Not available

23

Gravely 21544900

FILTER, OIL
(Superseded to 21545100)

Note: HydroGear p/n:52114

$

$

Not available

26

--------

SEAL, PLUG 1.250 x .250

Note: HydroGear p/n:52162

$

$

Not available

27

--------

HFHCS 3/8-16 x 1.5 (PATCH)

Note: HydroGear p/n:52137

$

$

Not available

30

Gravely 21543845

SEAL, LIP .375 x .75 x .25

Note: HydroGear p/n:51626

$9.49

$

Usually ships in 4-12 days

0

31

Gravely 08622500

RING, RET .375 EXTRNL

Note: HydroGear p/n:51628

$4.49

$

In Stock, Qty 14

0

32

--------

ROD, BYPASS

Note: HydroGear p/n:52136

$

$

Not available

33

Gravely 21543846

RING, RET .750 INTRNL

Note: HydroGear p/n:51627

$

$

Not available

34

--------

ARM, BYPASS

Note: HydroGear p/n:51910

$

$

Not available

35

Gravely 21543848

RING, RTNG .375 EXT

Note: HydroGear p/n:51630

$3.99

$

In Stock, only 1 left!

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

Note: HydroGear p/n:51048

$70.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 12 x 32 x 7

Note: HydroGear p/n:51140

$9.49

$

Usually ships in 4-12 days

0

45

Gravely 08611200

WASHER .34 x .88 x .06

Note: HydroGear p/n:44130

$3.99

$

Usually ships in 4-12 days

0

46

Gravely 21543854

TWHCS 5/16-24 x 1.00 (PATCH)

Note: HydroGear p/n:51812

$2.99

$

Usually ships in 4-12 days

0

55

Gravely 21543773

WASHER 1.23 x 1.56 x .04

Note: HydroGear p/n:50951

$5.99

$

In Stock, only 2 left!

0

56

Gravely 21543816

SEAL, LIP 17 x 40 x 7

Note: HydroGear p/n:51161

$14.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RETAINING

Note: HydroGear p/n:50329

$6.99

$

Usually ships in 4-12 days

0

60

--------

BEARING, THRUST

Note: HydroGear p/n:51462

$

$

Not available

64

--------

ASS'Y, CYLINDER BLOCK, 16cc

Note: HydroGear p/n:71579

$

$

Not available

65

Gravely 08609100

BRG, THRUST BALL 30 x 52 x 13

Note: HydroGear p/n:50551

$17.99

$

Usually ships in 4-12 days

0

69

Gravely 21543921

ASS'Y, BLOCK 7 PISTON

Note: HydroGear p/n:70723

$142.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER .63 x 1.0 x .05

Note: HydroGear p/n:44371

$

$

Not available

71

Gravely 21543704

RING, RETAINING_.625

Note: HydroGear p/n:44145

$

$

Not available

72

--------

GEAR, 16T

Note: HydroGear p/n:52149

$

$

Not available

73

--------

SHAFT, MOTOR

Note: HydroGear p/n:52150

$

$

Not available

74

Gravely 21543788

WASHER .72 x 1.16 x .04

Note: HydroGear p/n:51069

$

$

Not available

80

Gravely 21543724

WASHER .5 x 1.0 x .03

Note: HydroGear p/n:50132

$

$

Not available

81

--------

GEAR, 43T

Note: HydroGear p/n:52148

$

$

Not available

82

--------

GEAR, 11T

Note: HydroGear p/n:52583

$

$

Not available

83

Gravely 21543793

JACK SHAFT (PIN)

Note: HydroGear p/n:51083

$

$

Not available

90

Gravely 08616500

RING, RET 2.06 INT

Note: HydroGear p/n:50859

$9.49

$

Usually ships in 4-12 days

0

91

--------

GEAR, 54T

Note: HydroGear p/n:52108

$

$

Not available

92

--------

SPACER, .75 x 1.32 x .257

Note: HydroGear p/n:53336

$

$

Not available

93

--------

BEARING, BALL, .75 x 40 x 12

Note: HydroGear p/n:44121

$

$

Not available

95

Gravely 08614000

BRG, BALL 1.0 x 52 x 15 OPEN 6205M

Note: HydroGear p/n:50771

$23.99

$

Usually ships in 4-12 days

0

96

Gravely 08614300

SEAL, LIP 25 x 52 x 10 TC (GRAY)

Note: HydroGear p/n:50772

$16.99

$

In Stock, only 1 left!

0

97

--------

KIT, HUB, 4 BOLT

Note: HydroGear p/n:71446

$

$

Not available

99

Gravely 08621100

NUT, HEX LOCK 3/4-16

Note: HydroGear p/n:50863

$7.49

$

Usually ships in 4-12 days

0

100

--------

PAWL, BRAKE

Note: HydroGear p/n:52776

$

$

Not available

101

--------

SHAFT, BRAKE

Note: HydroGear p/n:52651

$

$

Not available

102

Gravely 02996500

HANDLE, ACTUATING

Note: HydroGear p/n:52639

$19.99

$

Usually ships in 4-12 days

0

103

Gravely 21544007

CLIP, RETAINING

Note: HydroGear p/n:52027

$5.99

$

Usually ships in 4-12 days

0

105

Gravely 21543759

HFHCS 1/4-20 x .75

Note: HydroGear p/n:50752

$

$

Not available

106

--------

GUARD, FILTER, RH

Note: HydroGear p/n:52257

$

$

Not available

111

--------

FITTING, STR 9/16-18 SAE .5 BARB

Note: HydroGear p/n:71393

$

$

Not available

120

Gravely 21544011

FAN 7", 10 BLADE

Note: HydroGear p/n:52576

$24.99

$

Usually ships in 4-12 days

0

122

Gravely 21543703

NUT, HEX JAM 1/2-20 W/PATCH

Note: HydroGear p/n:44133

$4.99

$

In Stock, only 4 left!

0

123

Gravely 21543791

HFHCS 1/4-20 x .875

Note: HydroGear p/n:51076

$3.49

$

Usually ships in 4-12 days

0

130

--------

TUBE, CONNECTING

Note: HydroGear p/n:52157

$

$

Not available

131

Gravely 08611500

GEROTOR ASSEMBLY (1.9 cc/rev)

Note: HydroGear p/n:50273

$27.99

$

Usually ships in 4-12 days

0

132

Gravely 21544005

O-RING, -137, 0.103 x 2.050

Note: HydroGear p/n:52250

$5.99

$

Usually ships in 4-12 days

0

133

--------

COVER, CHARGE PUMP

Note: HydroGear p/n:52688

$

$

Not available

134

Gravely 21543759

HFHCS 1/4-20 x .75

Note: HydroGear p/n:50752

$

$

Not available

140

--------

SPACER .320 x 1.005 x .179

Note: HydroGear p/n:52527

$

$

Not available

141

--------

ARM, NEUTRAL RIGHT

Note: HydroGear p/n:51945

$

$

Not available

142

Gravely 21543843

SHCS 5/16-24 x 1 PATCH

Note: HydroGear p/n:51616

$

$

Not available

146

Gravely 21543871

WASHER, .343 x 1.500 x .062

Note: HydroGear p/n:51950

$6.49

$

Usually ships in 4-12 days

0

147

Gravely 21544001

SPRING, EXTNSN RTN-34LBS

Note: HydroGear p/n:51833

$

$

Not available

200

Gravely 21543999

KIT, SEAL

Note: HydroGear p/n:71410

$77.99

$

Usually ships in 4-12 days

0

201

--------

KIT, CENTER SECTION, RH, CHRG

Note: HydroGear p/n:71561

$

$

Not available

202

--------

KIT, CHARGE RELIEF

Note: HydroGear p/n:71436

$

$

Not available

203

--------

KIT, CHARGE PUMP

Note: HydroGear p/n:71411

$

$

Not available

207

--------

KIT, FAN & PULLEY

Note: HydroGear p/n:71833

$

$

Not available

209

Gravely 21544009

UB PULLER, 4 BOLT
(Superseded to 21544008)

Note: HydroGear p/n:1459

$452.99

$

Usually ships in 4-12 days

0

210

Gravely 21544010

KIT, INPUT SHAFT
(Superseded to 21544039)

Note: HydroGear p/n:1442

$

$

Not available

211

--------

KIT, RTN, CW

Note: HydroGear p/n:71590

$

$

Not available

212

--------

KIT, SHAFT, AXLE

Note: HydroGear p/n:71570

$

$

Not available
