915162 (ZT XL 48) - Gravely 48" Zero-Turn Mower, Kawasaki FR (SN: 010000 - 019999) Mower Deck Lift Parts Diagram

48" Zero-Turn Mower, Kawasaki FR

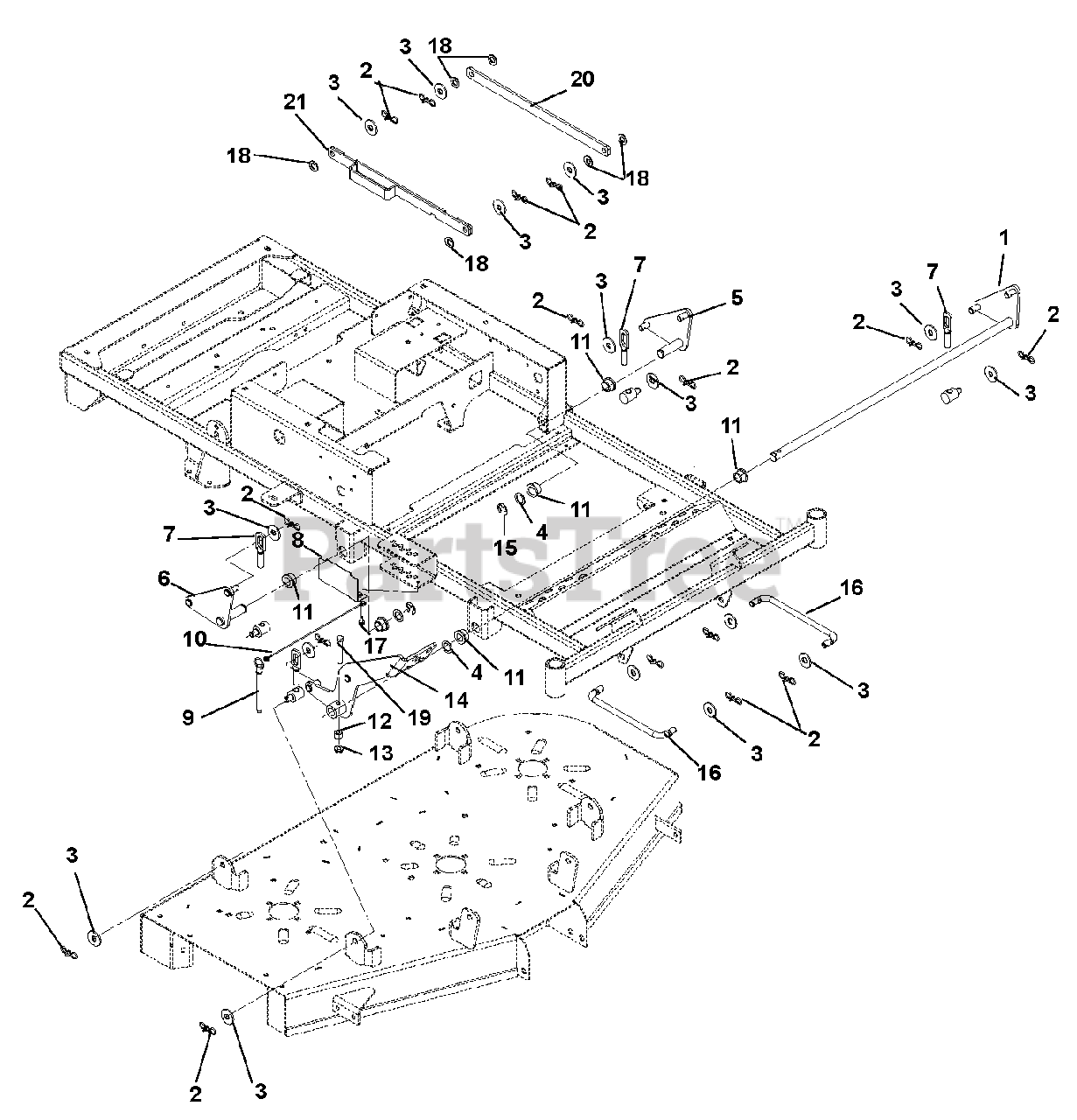

Mower Deck Lift Parts Diagram

  • Title
1

Gravely 02969200

Weldment, Deck Pivot

$102.99

$

In Stock, only 1 left!

0

2

Gravely 06700201

Pin, Bow Tie Locking Cotter .091 x 1.875
(Superseded to 06700220)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06436400

Washer, Flat Steel. 511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 06441400

Washer, Flat Steel .754 x 1.125 x .062
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 02969400

Weldment, Deck Pivot XL Rear Left Hand

$155.99

$

Usually ships in 4-12 days

0

6

Gravely 02969300

Weldment, Deck Pivot XL Rear Right Hand

$

$

Not available

7

Gravely 03272700

Assembly, Deck Link

$85.99

$

In Stock, Qty 5

0

8

Gravely 02972851

Guard, Deck Lift

$

$

Not available

9

Gravely 03284200

Pin, Spring Ball .375 x 3.75

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 06900317

Cable, 12.0 Lanyard, Nylon

$3.49

$

In Stock, only 2 left!

0

11

Gravely 05503900

Bushing, Flange .750 x 1.000 x .625 x 1.250

$12.99

$

In Stock, Qty 6

0

12

Gravely 08553700

Bushing, Sleeve .391 x .688 x .52

$5.99

$

In Stock, only 1 left!

0

13

Gravely 06545500

Nut, Flange Nyloc 3/8-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 02969151

Weldment, XL Foot Pedal

$126.99

$

Usually ships in 4-12 days

0

15

Gravely 05707400

Ring, Retaining – External .750 x .050

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 02004500

Link, Drag

$17.99

$

In Stock, only 2 left!

0

17

Gravely 07412000

Screw, Tap .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06443300

Washer, Flat Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 20+

0

19

Gravely 05958400

Bolt, Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 02973051

Link, Lift

$25.99

$

Usually ships in 4-12 days

0

21

Gravely 02985700

Weldment, Lift Link

$

$

Not available
