915162 (ZT XL 48) - Gravely 48" Zero-Turn Mower, Kawasaki FR (SN: 010000 - 019999) Anti-Scalp Wheels Parts Diagram

48" Zero-Turn Mower, Kawasaki FR

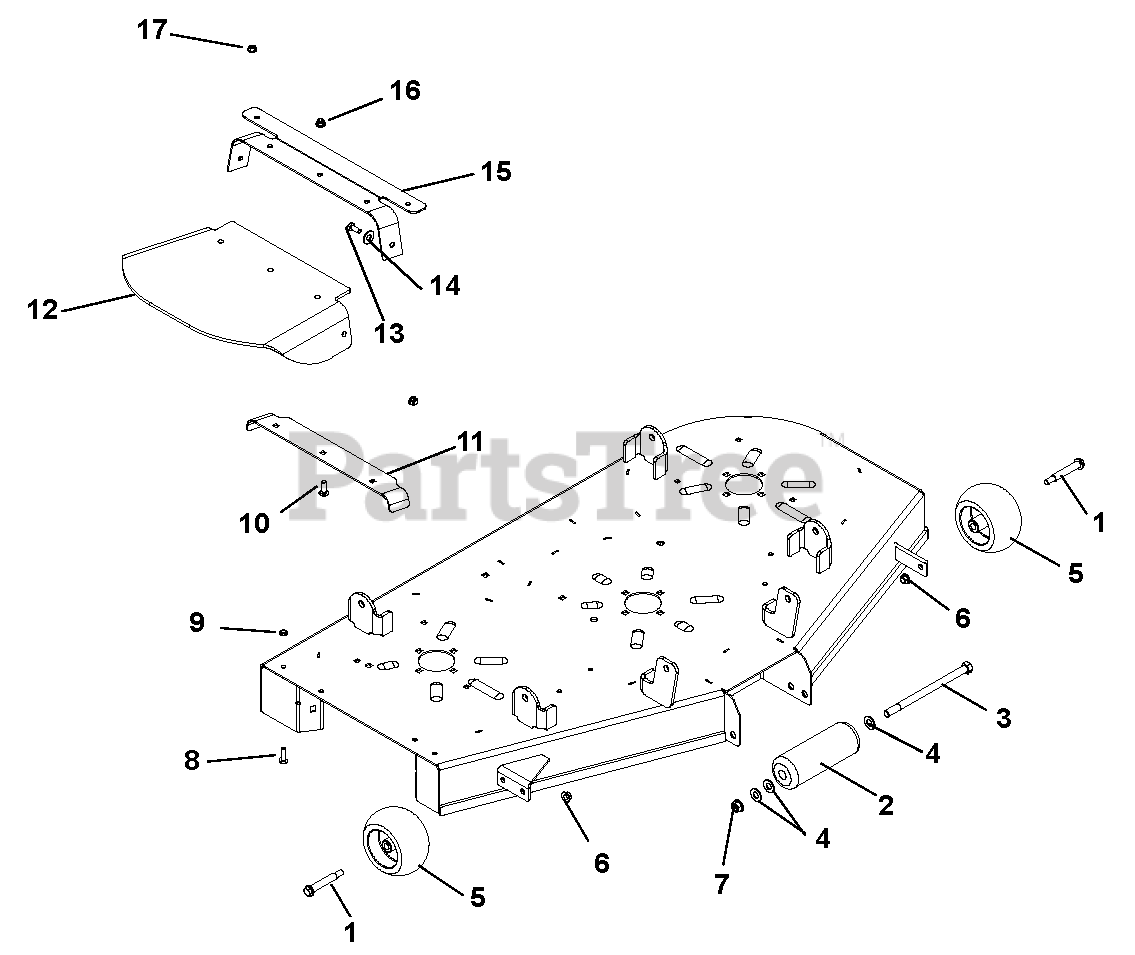

Anti-Scalp Wheels Parts Diagram

  • Title

1

Gravely 07056800

Bolt, Shoulder .38-16 x 2.50 Hex Washer Head Grade 5

$6.99

$

In Stock, Qty 20+

0

2

Gravely 03114100

Roller

$22.99

$

In Stock, Qty 20+

0

3

Gravely 05968400

Bolt, Hex .50-13 x 8.00 Grade 5

$7.99

$

In Stock, only 1 left!

0

4

Gravely 06443300

Washer, Flat Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 20+

0

5

Gravely 03905600

Wheel 5 x 3

$15.99

$

In Stock, Qty 20+

0

6

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06540600

Nut, Locking Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06500011

Nut, Locking Center Jam .31-18
(Superseded to 06500913)

$0.99

$

In Stock, only 3 left!

0

10

Gravely 06200007

Bolt, Round Head Square Neck .31-18 x 1 Grade 5
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 03262353

Bracket, Chute Brace, Inner
(Superseded to 03262300)

$30.99

$

Usually ships in 4-12 days

0

12

Gravely 02973600

Chute, Discharge, Rubber

$45.99

$

In Stock, only 3 left!

0

13

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 02975853

Bracket, Discharge Chute

$60.99

$

Usually ships in 4-12 days

0

16

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06545400

Nut, Nyloc Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0
