915162 (ZT XL 48) - Gravely 48" Zero-Turn Mower, Kawasaki FR (SN: 000101 - 009999) Transmission, RH - 03265800 Parts Diagram

48" Zero-Turn Mower, Kawasaki FR

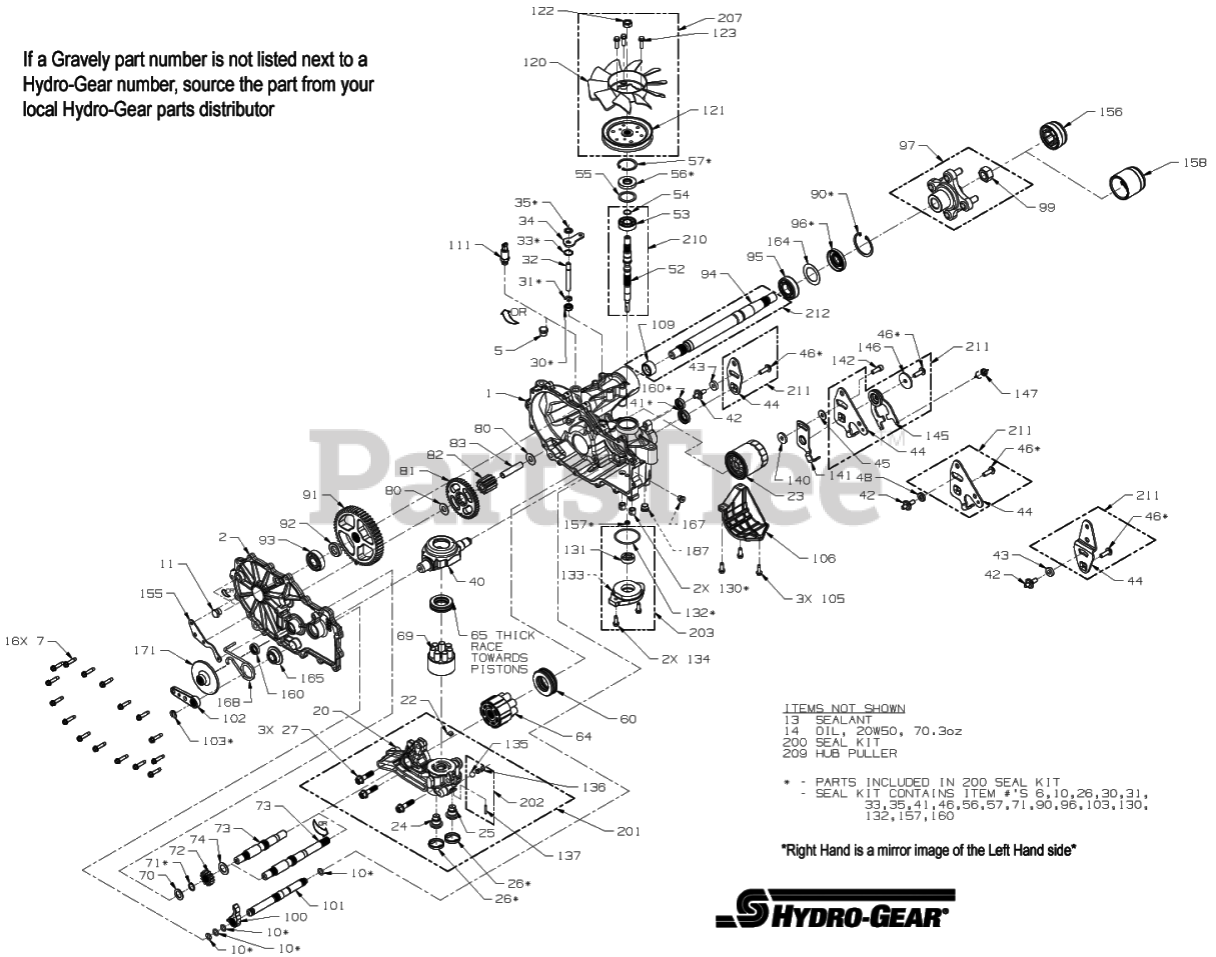

Transmission, RH - 03265800 Parts Diagram

  • Title

1

KIT, HOUSING, MAIN, RH, CHRG, CNTL

Note: Hydro-Gear p/n 71413

$

$

Not available

2

KIT, COVER, SIDE, RH

Note: Hydro-Gear p/n 71572

$

$

Not available

7

Gravely 27105900

SCREW,HEX WASHER 1/4-20X1.125

Note: Hydro-Gear p/n 53246

$2.49

$

In Stock, only 3 left!

0

10

O-RING -111 .103 X .424

Note: Hydro-Gear p/n 51804

$

$

Not available

11

PLUG, EXTERNAL HEX VENT 9/16-18

Note: Hydro-Gear p/n 54730

$

$

Not available

13

Gravely 21543771

SEALANT TUBE 10.1OZ.

Note: Hydro-Gear p/n 50928

$116.99

$

In Stock, only 1 left!

0

14

OIL, 20W50

Note: N/A

$

$

Not available

22

Gravely 21543839

PLATE, BYPASS

Note: Hydro-Gear p/n 51448

$

$

Not available

23

Gravely 21545100

OIL FILTER, TRANSMISSION

Note: Hydro-Gear p/n 52114

$

$

Not available

26

Gravely 21544047

SEAL, PLUG 1.375 X .250

Note: Hydro-Gear p/n 52162

$7.49

$

Usually ships in 4-12 days

0

27

HFHCS 3/8-16 X 1.50

Note: Hydro-Gear p/n 52137 (PATCH)

$

$

Not available

30

Gravely 21543845

SEAL, LIP .375X.75X.25

Note: Hydro-Gear p/n 51626

$9.49

$

Usually ships in 4-12 days

0

31

Gravely 08622500

RING. RETAINING

Note: Hydro-Gear p/n 51628

$4.49

$

In Stock, Qty 15

0

32

ROD, BYPASS

Note: Hydro-Gear p/n 52136

$

$

Not available

33

Gravely 21543846

RING, RET .750

Note: Hydro-Gear p/n 51627

$

$

Not available

34

Gravely 21544046

ARM, BYPASS

Note: Hydro-Gear p/n 51910

$14.99

$

Usually ships in 4-12 days

0

35

Gravely 21543848

RING, RTNG .

Note: Hydro-Gear p/n 51630

$3.99

$

In Stock, only 1 left!

0

40

TRUNNION, SWASHPLATE

Note: Hydro-Gear p/n 51048

$

$

Not available

41

Gravely 21543809

SEAL, LIP 18X32X7

Note: Hydro-Gear p/n 51140

$9.49

$

Usually ships in 4-12 days

0

45

Gravely 08611200

WASHER

Note: Hydro-Gear p/n 44130

$3.99

$

Usually ships in 4-12 days

0

46

Gravely 21543854

TWHCS 5/16-24 X 1.00

Note: Hydro-Gear p/n 51812

$2.99

$

Usually ships in 4-12 days

0

55

Gravely 21543773

WASHER 1.23X1.56X.04

Note: Hydro-Gear p/n 50951

$5.99

$

In Stock, only 2 left!

0

56

Gravely 21543816

SEAL, LIP 17X40X7

Note: Hydro-Gear p/n 51161

$14.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RET 1.56 INT

Note: Hydro-Gear p/n 50329

$6.99

$

Usually ships in 4-12 days

0

60

Gravely 21548902

HG THRUST BEARING (51462)

Note: Hydro-Gear p/n 51462

$29.99

$

Usually ships in 4-12 days

0

64

Gravely 21548904

HG 16CC CYLINDER BLOCK (71579)

Note: Hydro-Gear p/n 71579

$77.99

$

Usually ships in 4-12 days

0

65

Gravely 08609100

BEARING. THRUST 30 X 52 X 13

Note: Hydro-Gear p/n 50551

$17.99

$

Usually ships in 4-12 days

0

69

Gravely 21543921

ASSY, BLOCK 7 PISTON

Note: Hydro-Gear p/n 70723

$142.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER .63X1.0X.05

Note: Hydro-Gear p/n 44371

$

$

Not available

71

Gravely 21543704

RING, RET 62 EXT

Note: Hydro-Gear p/n 44145

$

$

Not available

72

GEAR, 16T

Note: Hydro-Gear p/n 52149

$

$

Not available

73

SHAFT, MOTOR

Note: Hydro-Gear p/n 52150

$

$

Not available

74

Gravely 21543788

WASHER .71 X 1.16 X .04

Note: Hydro-Gear p/n 51069

$

$

Not available

80

Gravely 21543724

WASHER .5X1.0X.032

Note: Hydro-Gear p/n 50132

$

$

Not available

81

GEAR, 43T

Note: Hydro-Gear p/n 52148

$

$

Not available

82

GEAR, 11T

Note: Hydro-Gear p/n 52583

$

$

Not available

83

Gravely 21543793

JACK SHAFT (PIN)

Note: Hydro-Gear p/n 51083 (PIN)

$

$

Not available

90

Gravely 08616500

RING, RETAINING

Note: Hydro-Gear p/n 50859

$9.49

$

Usually ships in 4-12 days

0

91

GEAR, 54T

Note: Hydro-Gear p/n 52108

$

$

Not available

92

SPACER, .75 X 1.32 X .257

Note: Hydro-Gear p/n 53336

$

$

Not available

93

BEARING, BALL .75 X 40 X 12

Note: Hydro-Gear p/n 53071

$

$

Not available

95

Gravely 08614000

BEARING, BALL 25.4 X 52 X 15

Note: Hydro-Gear p/n 53656

$23.99

$

Usually ships in 4-12 days

0

96

Gravely 08614300

SEAL, LIP

Note: Hydro-Gear p/n 53699

$16.99

$

In Stock, only 1 left!

0

97

Gravely 21544061

KIT, HUB 4 BOLT

Note: Hydro-Gear p/n 71446

$90.99

$

Usually ships in 4-12 days

0

99

Gravely 08621100

NUT, HEX, LOCK 3/4-16

Note: Hydro-Gear p/n 53768

$7.49

$

Usually ships in 4-12 days

0

100

PAWL, BRAKE

Note: Hydro-Gear p/n 52766

$

$

Not available

101

SHAFT, BRAKE

Note: Hydro-Gear p/n 52651

$

$

Not available

102

Gravely 21544006

BRAKE ARM HYRDROGEAR 52499

Note: Hydro-Gear p/n 52499

$

$

Not available

103

RING, RETAINING

Note: Hydro-Gear p/n 53019

$

$

Not available

105

Gravely 21543759

HFHCS 1/4-20X.75

Note: Hydro-Gear p/n 50752

$

$

Not available

106

Gravely 21544054

GUARD, FILTER, RH

Note: Hydro-Gear p/n 53655

$14.99

$

Usually ships in 4-12 days

0

111

Gravely 21544058

KIT, FITTING 1/2 BEADED 9/16

Note: Hydro-Gear p/n 71393

$

$

Not available

120

FAN, 7.0 W/INSERT

Note: Hydro-Gear p/n 53821 (10 BLADE)

$

$

Not available

121

DISC, PULLEY, CUPPED, 4.5 INCH

Note: Hydro-Gear p/n 53804

$

$

Not available

122

Gravely 21543703

NUT, HEX 1/2-20 PATCH

Note: Hydro-Gear p/n 44133

$4.99

$

In Stock, only 4 left!

0

124

HUB, PULLEY

Note: Hydro-Gear p/n 53812

$

$

Not available

130

TUBE, CONNECTING

Note: Hydro-Gear p/n 54501

$

$

Not available

131

Gravely 08611500

GEROTOR

Note: Hydro-Gear p/n 50273 (1.9 cc/rev)

$27.99

$

Usually ships in 4-12 days

0

132

Gravely 21544005

O-RING HYDROGEAR 52250

Note: Hydro-Gear p/n 52250

$5.99

$

Usually ships in 4-12 days

0

133

COVER, CHARGE PUMP

Note: Hydro-Gear p/n 53738

$

$

Not available

134

Gravely 21543759

HFHCS 1/4-20X.75

Note: Hydro-Gear p/n 50752

$

$

Not available

140

Gravely 21543870

SPACER

Note: Hydro-Gear p/n 54315

$

$

Not available

141

Gravely 21543866

ARM, NEUTRAL RIGHT

Note: Hydro-Gear p/n 51945

$11.99

$

Usually ships in 4-12 days

0

142

Gravely 21543843

SHCS 5/16-24X1 PATCH

Note: Hydro-Gear p/n 51616 (PATCH)

$

$

Not available

147

Gravely 21544001

SPRING, HYDROGEAR P/N 51833

Note: Hydro-Gear p/n 51833 34LBS

$

$

Not available

157

KIT, GEROTOR SEAL

Note: Hydro-Gear p/n 72291

$

$

Not available

158

CAP, AXLE

Note: Hydro-Gear p/n 53501

$

$

Not available

186

TUBE, AXLE

Note: Hydro-Gear p/n 53496

$

$

Not available

200

Gravely 21543999

KIT, SEAL

Note: Hydro-Gear p/n 71410

$77.99

$

Usually ships in 4-12 days

0

201

Gravely 21544062

KIT, CENTER SECTION RH, CHRG

Note: Hydro-Gear p/n 71561 KIT INCLUDES 20, 22, 24, 25, 26, 27, 28, 135, 136, 137

$

$

Not available

202

KIT, CHARGE RELIEF

Note: Hydro-Gear p/n 71436 KIT iNCLUDES: 135, 136, 137

$

$

Not available

203

Gravely 21544060

KIT, CHARGE

Note: Hydro-Gear p/n 72274 KIT INCLUDES: 131, 132, 133, 134

$96.99

$

In Stock, only 2 left!

0

207

Gravely 21543898

KIT, FAN/PULLEY

Note: Hydro-Gear p/n 72124

$80.99

$

Usually ships in 4-12 days

0

209

Gravely 21544009

HUB PULLER 4 BLT HYDGEAR 71459
(Superseded to 21544008)

Note: Hydro-Gear p/n 72320

$452.99

$

Usually ships in 4-12 days

0

210

Gravely 21544010

INPUT SHAFT 2800 HYDGEAR 71442
(Superseded to 21544039)

Note: Hydro-Gear p/n 71442 KIT INCLUDES: 52, 53, 54

$

$

Not available

211

Gravely 21544064

KIT, RTN CW

Note: Hydro-Gear p/n 71590 KIT INCLUDES: 44, 46, 145, 146

$36.99

$

Usually ships in 4-12 days

0

212

KIT, SHAFT, AXLE

Note: Hydro-Gear p/n 71570

$

$

Not available
